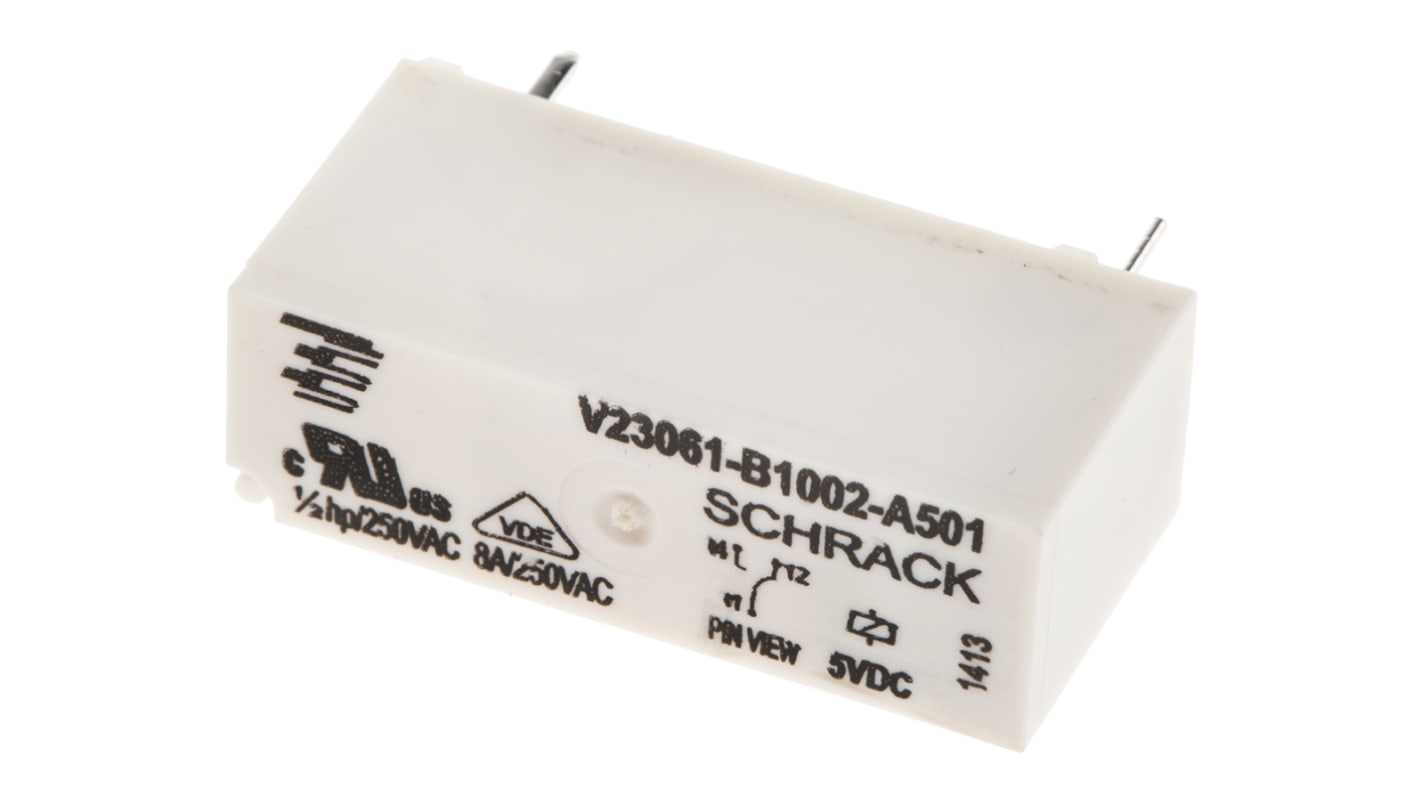

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 8A Switching Current, SPDT
- RS Stock No.:
- 719-6335P
- Mfr. Part No.:
- V23061B1002A501
- Brand:
- TE Connectivity
Subtotal 1 unit (supplied in a tube)*
£4.11
(exc. VAT)
£4.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 52 unit(s) ready to ship
- Plus 60 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.11 |
*price indicative
- RS Stock No.:
- 719-6335P
- Mfr. Part No.:
- V23061B1002A501
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 1 | |
| Series | MSR | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 30mm | |
| Coil Resistance | 118Ω | |
| Coil Power | 220mW | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 4kVrms | |
| Maximum Operating Temperature | +85°C | |
| Height | 15mm | |
| Maximum Switching Power AC | 2 kVA | |
| Width | 10mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 1 | ||
Series MSR | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 30mm | ||
Coil Resistance 118Ω | ||
Coil Power 220mW | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 4kVrms | ||
Maximum Operating Temperature +85°C | ||
Height 15mm | ||
Maximum Switching Power AC 2 kVA | ||
Width 10mm | ||
TE Connectivity MSR Series Miniature PCB Power Relays
MSR series miniature PCB power relays with AgSno contacts, high inrush currents and reinforced insulation. These MSR series miniature PCB power relays are through hole mount and the white plastic enclosures are wash tight.
High inrush currents with AgSno contacts
Dimensions 15 mm x 10 mm x 30 mm (H X W X D)
Operational Temperature -40 → +85°C
Dimensions 15 mm x 10 mm x 30 mm (H X W X D)
Operational Temperature -40 → +85°C
