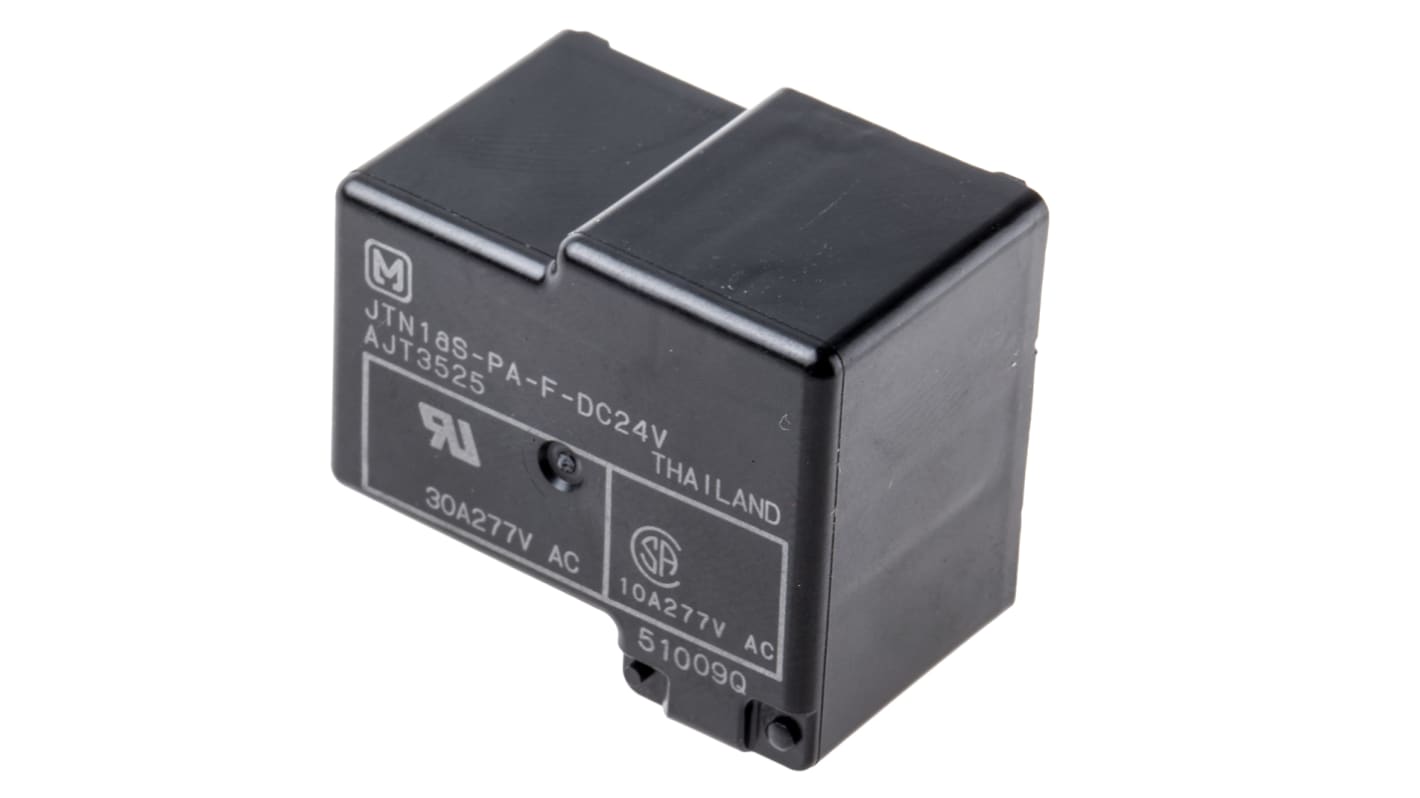

Panasonic PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

RS Stock No.:: 699-6948
Mfr. Part No.:: JTN1AS-PA-F-DC24V
Brand:: Panasonic

Panasonic PCB Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST

This product is currently unavailable to backorder.

Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

Price Each

£2.45

(exc. VAT)

£2.94

(inc. VAT)

Units	Per unit
1 - 24	£2.45
25 - 49	£2.19
50 - 99	£1.92
100 - 249	£1.72
250 +	£1.68

RS Stock No.:: 699-6948
Mfr. Part No.:: JTN1AS-PA-F-DC24V
Brand:: Panasonic

Technical Reference

JT-N Relays Data Sheet

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

JT-N Series

These compact power relays are economical and offer a high switching capacity. Typical applications for these power relays include automotive, air conditioning, heating and ventilation and home appliances.

Compact and Economical
High switching capacity, 30A
Class F types as standard
Sealed construction

Approvals

UL/C-UL

Specifications

Attribute	Value
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	30A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	277V ac
Length	26.9mm
Coil Resistance	720Ω
Coil Power	800mW
Contact Material	Silver Alloy
Life	100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Depth	31.9mm
Height	20.2mm
Isolation Coil To Contact	2.5kVrms
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-55°C
Maximum Switching Power AC	8.31 kVA
Application	Power
