MPN

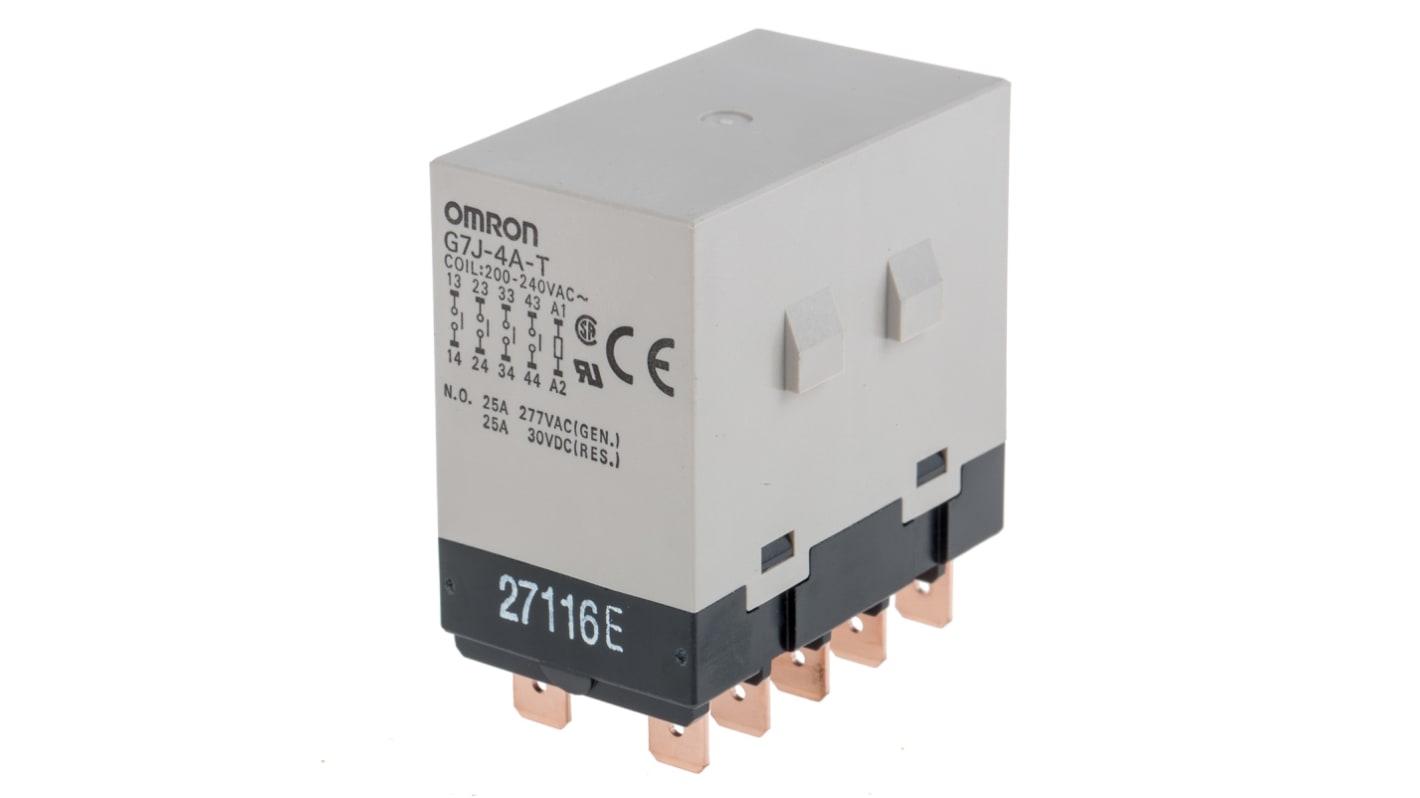

Omron Panel Mount Power Relay, 240V ac Coil, 25A Switching Current, 4PST-NO

RS Stock No.:: 684-0110
Mfr. Part No.:: G7J-4A-T 200/240VAC
Brand:: Omron

Omron Panel Mount Power Relay, 240V ac Coil, 25A Switching Current, 4PST-NO

Bulk discount available

Subtotal (1 unit)*

£32.76

(exc. VAT)

£39.31

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location
Plus 10 unit(s) shipping from 10 September 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£32.76
25 - 49	£29.59
50 - 99	£27.05
100 - 249	£25.83
250 +	£24.76

*price indicative

RS Stock No.:: 684-0110
Mfr. Part No.:: G7J-4A-T 200/240VAC
Brand:: Omron

Omron G7J Series Power Relay, 240V AC Coil Voltage, 25A Switching Current - G7J-4A-T AC200/240

This power relay from Omron is designed for high-performance applications across various industries. With a robust 4PST-NO configuration, this panel mount relay operates at a coil voltage of 240V AC and is specifically engineered to handle a maximum switching power of up to 5.5kVA. Measuring 51.5mm in length, 34.5mm in depth, and 64mm in height, it is built to meet stringent standards such as CSA approval and UL listing.

Features & Benefits

• Handles high currents up to 25A for reliable performance
• Quick connect terminal design simplifies installation
• Supports both AC and DC switching to enhance versatility
• Exceptional insulation rated at 4kV AC for safety
• Mechanical lifespan of 1,000,000 cycles ensures durability

Applications

• Suitable for automation and control systems
• Commonly used in industrial power management
• Ideal for electrical installations requiring reliable switching
• Essential for systems needing high-current control

What is the significance of the 4PST-NO configuration?

The 4PST-NO configuration provides four poles for normally open contact arrangements, allowing simultaneous control of multiple circuits, which is essential in complex systems requiring coordinated switching.

How does the coil resistance impact relay performance?

With a coil resistance of 100mΩ, this relay ensures efficient energy consumption and minimal heat generation during operation, contributing to overall system reliability.

What temperature range can this relay operate in without issue?

It operates effectively within a temperature range of -25 °C to +60 °C, making it suitable for varied industrial environments, from colder climates to warmer conditions.

How does the quick connect terminal facilitate installation?

The quick connect terminals enable swift and secure wiring, significantly reducing installation time while maintaining a robust connection, which is particularly advantageous in time-sensitive projects.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	240V ac
	Contact Configuration	4PST-NO
	Mounting Type	Panel Mount
	Switching Current	25A
	Number of Poles	4
	Series	G7J
	Latching	No
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current DC	25 A
	Maximum Switching Current AC	25 A
	Length	51.5mm
	Coil Resistance	100 mO
	Coil Power	2.6W
	Depth	34.5mm
	Height	64mm
	Standards Met	CSA, UL Listed
	Minimum Operating Temperature	-25°C
	Isolation Coil To Contact	4kV ac
	Life	1000000 (Mechanical) cycles
	Maximum Operating Temperature	+60°C
	Contact Material	Ag Alloy
	Maximum Switching Power AC	5.5 kVA
	Maximum Switching Power DC	750 W
	Application	Power

	Select all
	Brand Omron
	Coil Voltage 240V ac
	Contact Configuration 4PST-NO
	Mounting Type Panel Mount
	Switching Current 25A
	Number of Poles 4
	Series G7J
	Latching No
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current DC 25 A
	Maximum Switching Current AC 25 A
	Length 51.5mm
	Coil Resistance 100 mO
	Coil Power 2.6W
	Depth 34.5mm
	Height 64mm
	Standards Met CSA, UL Listed
	Minimum Operating Temperature -25°C
	Isolation Coil To Contact 4kV ac
	Life 1000000 (Mechanical) cycles
	Maximum Operating Temperature +60°C
	Contact Material Ag Alloy
	Maximum Switching Power AC 5.5 kVA
	Maximum Switching Power DC 750 W
	Application Power
