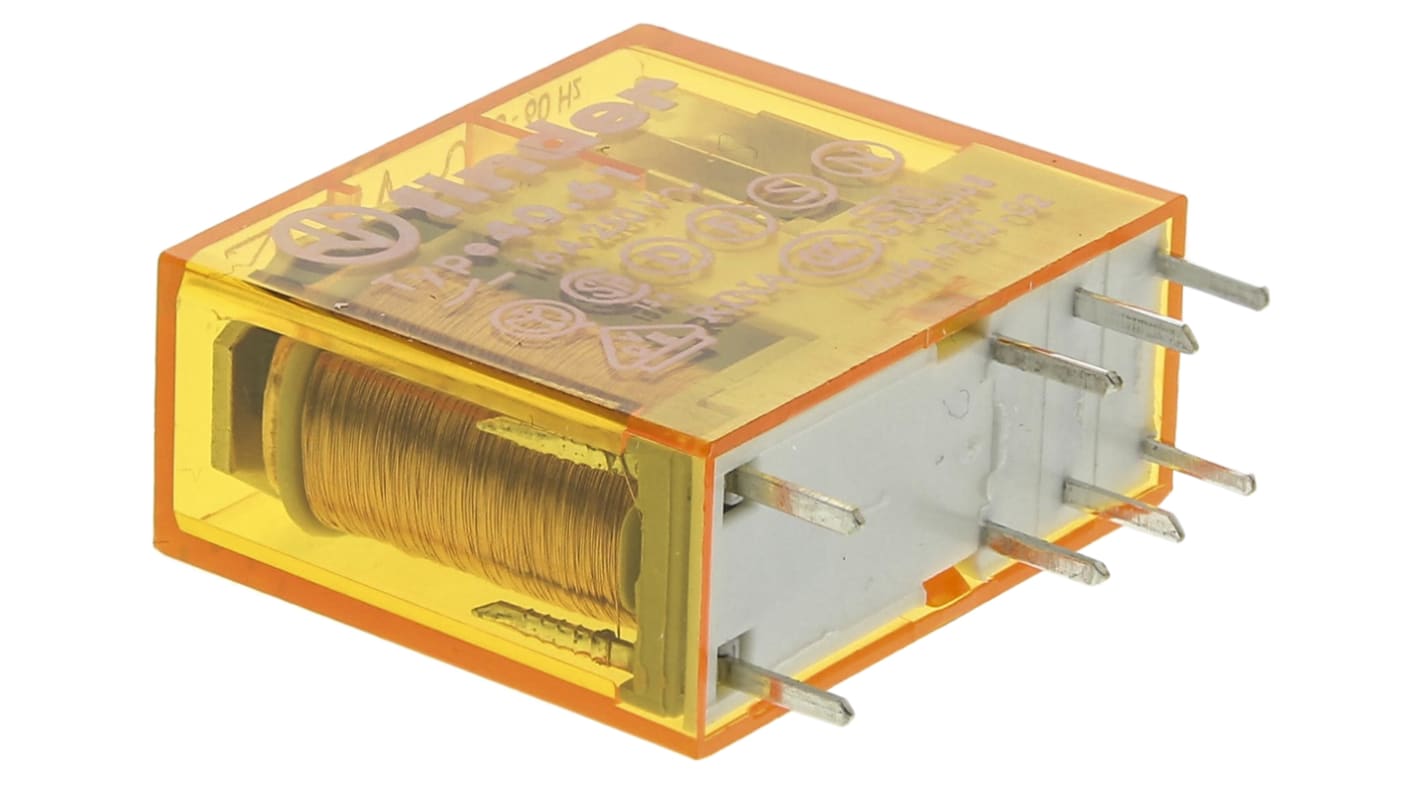

Finder PCB Mount Power Relay, 24V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 511-1256
- Mfr. Part No.:
- 40.61.8.024.0000
- Brand:
- Finder
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.86
(exc. VAT)
£8.23
(inc. VAT)
- RS Stock No.:
- 511-1256
- Mfr. Part No.:
- 40.61.8.024.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 320Ω | |
| Coil Power | 1.2W | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 6kV | |
| Series | 40 Series | |
| Height | 25mm | |
| Life | 10000000 (Electrical) cycles | |
| Minimum Operating Temperature | -40°C | |
| Depth | 12.4mm | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 4 kVA | |
| Application | PCB | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 320Ω | ||
Coil Power 1.2W | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 6kV | ||
Series 40 Series | ||
Height 25mm | ||
Life 10000000 (Electrical) cycles | ||
Minimum Operating Temperature -40°C | ||
Depth 12.4mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 4 kVA | ||
Application PCB | ||
- COO (Country of Origin):
- IT
