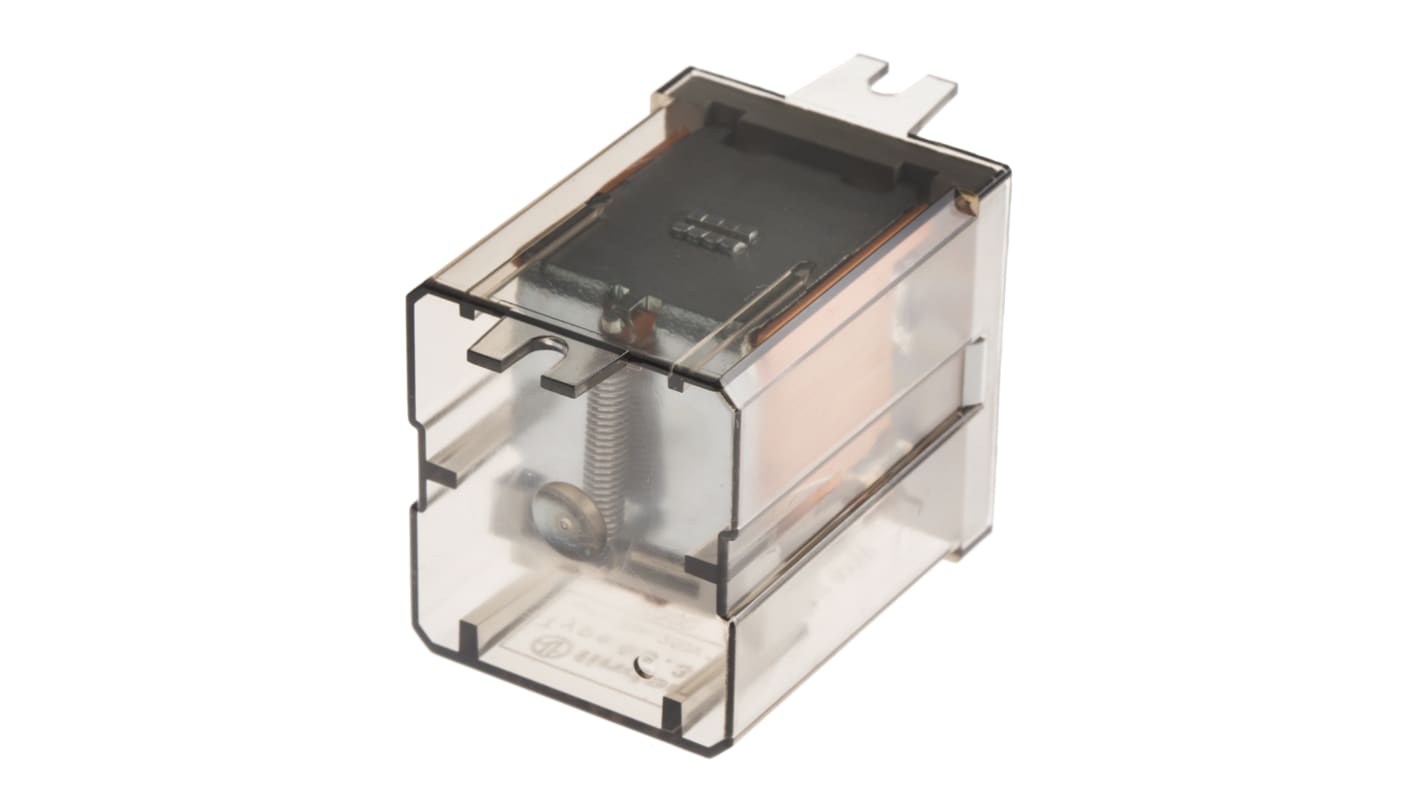

Name: Finder Flange Mount Power Relay, 24V ac Coil, SPST
Brand: Finder
SKU: 511-1206
Price: 17.62 GBP
Availability: Discontinued

65 Series Industrial Relay

Cover incorporates mounting brackets
Faston 250 (6.3x0.8mm) terminals
Contact Material: AgCdO
Isolation Coil To Contact 4000V (1.2/50μs)
H 51.5,W 32.5,D 36.5
Operating Temperature: -40°C to +50°C

Approvals

UL recognised component for Canada and US, VDE

Finder Series 65 Power Relay, 24V AC Coil Voltage, 30A Switching Current - 65.31.8.024.0300

This power relay is engineered for operation at a coil voltage of 24V AC, featuring a single-pole, single-throw (SPST) configuration. Measuring 32.2mm in depth, 36.5mm in height, and with a length of 62.2mm, it provides a robust design for reliable switching. Designed for high-current applications, this relay excels in diverse settings including industrial environments and heavy-duty machinery.

Features & Benefits

• Supports switching currents of up to 30A for high-power applications
• Quick connect terminals ensure easy installation and maintenance
• Flange mount design enhances mechanical stability in installations
• Built with silver alloy contacts for improved conductivity and durability
• Operates effectively within a temperature range of -40 °C to +75 °C
• Isolation of 4 kV between coil and contact prevents electrical interference

Applications

• Utilised in industrial washing machines
• Applicable in burners and boilers for efficient control
• Suitable for power generators requiring reliable switching
• Designed for Jacuzzis and hot tubs management
• Ideal for automation panels in electrical distribution

How does the coil voltage affect the relay's performance?

Operating at 24V AC, the relay ensures compatibility with various control systems, enhancing reliability in applications requiring consistent performance.

What are the switching capacities available with this relay?

It supports a maximum switching power of 7.5 kVA AC and can handle peak currents of up to 120A, allowing versatility in energy management tasks.

How durable is this relay in terms of operational life?

The relay boasts a mechanical life of approximately 10 million cycles, coupled with an electrical life of 80,000 cycles, providing reassurance in continuous operations.

What materials are used in the contacts and how do they benefit performance?

The contacts are made from silver alloy, which enhances electrical performance and reduces wear over time, contributing to a longer lifespan under heavy loads.

Approvals

UL; CSA; VDE

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	SPST
	Mounting Type	Flange Mount
	Number of Poles	1
	Series	65
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	220V dc
	Maximum Switching Current AC	120 A
	Length	62.2mm
	Coil Resistance	74 Ω
	Coil Power	2.2W
	Life	80000 Cycles
	Isolation Coil To Contact	4kV
	Maximum Operating Temperature	+75°C
	Minimum Operating Temperature	-40°C
	Depth	32.2mm
	Standards Met	cURus, EAC
	Height	36.5mm
	Contact Material	Silver Alloy
	Number of Coils	Single
	Maximum Switching Power AC	7.5 kVA
	Dimensions	32.2 x 36.5 x 51.5mm
	Application	Power

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration SPST
	Mounting Type Flange Mount
	Number of Poles 1
	Series 65
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 220V dc
	Maximum Switching Current AC 120 A
	Length 62.2mm
	Coil Resistance 74 Ω
	Coil Power 2.2W
	Life 80000 Cycles
	Isolation Coil To Contact 4kV
	Maximum Operating Temperature +75°C
	Minimum Operating Temperature -40°C
	Depth 32.2mm
	Standards Met cURus, EAC
	Height 36.5mm
	Contact Material Silver Alloy
	Number of Coils Single
	Maximum Switching Power AC 7.5 kVA
	Dimensions 32.2 x 36.5 x 51.5mm
	Application Power
