Finder DIN Rail Latching Modular Step Relay, 230V ac Coil, 16A Switching Current, DPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£31.46

(exc. VAT)

£37.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 60 unit(s) ready to ship
  • Plus 31 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£31.46
5 - 9£30.49
10 +£29.16

*price indicative

RS Stock No.:
511-1026
Mfr. Part No.:
20.22.8.230.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

230V ac

Contact Configuration

DPST

Mounting Type

DIN Rail

Switching Current

16A

Number of Poles

2

Latching

Yes

Series

20 Series

Terminal Type

Screw

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

110V dc

Coil Resistance

2500Ω

Coil Power

6.5W

Life

300000 Cycles

Isolation Coil To Contact

4kV

Maximum Operating Temperature

+40°C

Depth

58.4mm

Height

84mm

Minimum Operating Temperature

-40°C

Contact Material

Silver Alloy

Maximum Switching Power DC

1000 mW

Maximum Switching Power AC

4 kVA

Dimensions

17.4x84x58.4mm

COO (Country of Origin):
IT

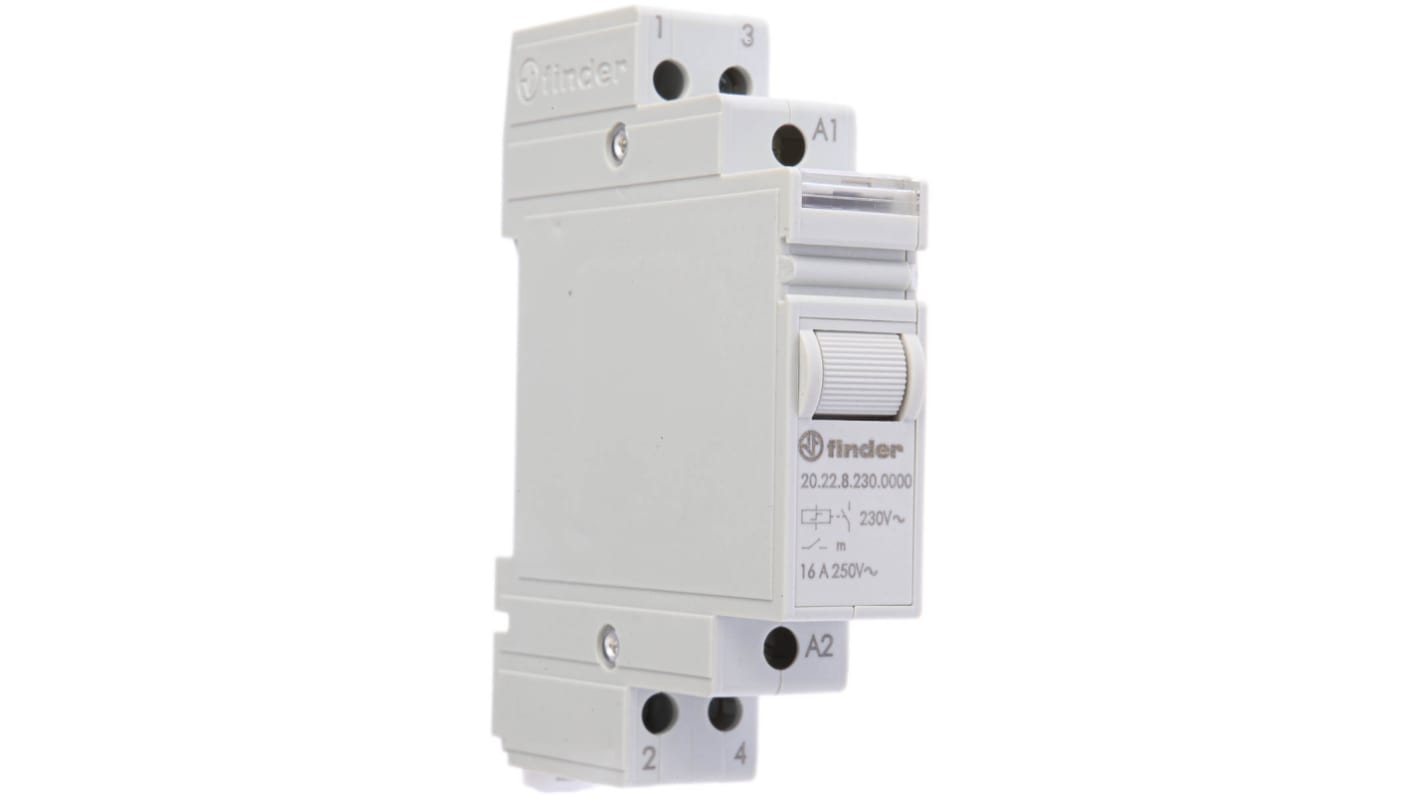

Finder 20 Series Modular Step Relay, 230V AC Coil Voltage, 16A Switching Current - 20.22.8.230.0000


This modular step relay is designed for efficient automation in various applications. With a compact design of 17.4 x 84 x 58.4mm, it integrates seamlessly into DIN rail systems. The device operates at a coil voltage of 230V AC, providing reliable performance for diverse control tasks. The high-voltage relay features a double pole, single throw (DPST) configuration and is equipped with screw terminals for secure connections.

Features & Benefits


• Supports latching functionality for enhanced control options
• Rated for a switching current of 16A for robust performance
• Meets stringent CE and cULus standards for safety
• Operates within a wide temperature range of -40°C to +40°C
• Long mechanical life rated at 300,000 cycles ensures durability
• Cadmium-free AgNi contact material promotes environmental safety

Applications


• Used for control of blinds and shutters
• Ideal for lighting control in corridors of hotels and hospitals
• Suitable for bedroom and living room light management
• Connects with illuminated push buttons for user convenience

What is the rated voltage and current that this device can handle?


It operates at a rated voltage of 230V AC and supports a maximum switching current of 16A. This makes it suitable for controlling various electrical loads effectively.

How can this relay control multiple lighting sequences?


Owners can select from seven different switching sequences to meet specific requirements, allowing for flexible configuration in lighting control applications.

What are the required conditions for maintaining optimal operation?


It is essential to ensure adequate ventilation between adjacent relays, maintaining a suggested gap of 9mm, especially if operated for prolonged periods.

What type of terminal connections does this relay use?


The relay features screw terminals which provide secure and reliable connections for electrical wiring, enhancing installation safety and ease.
