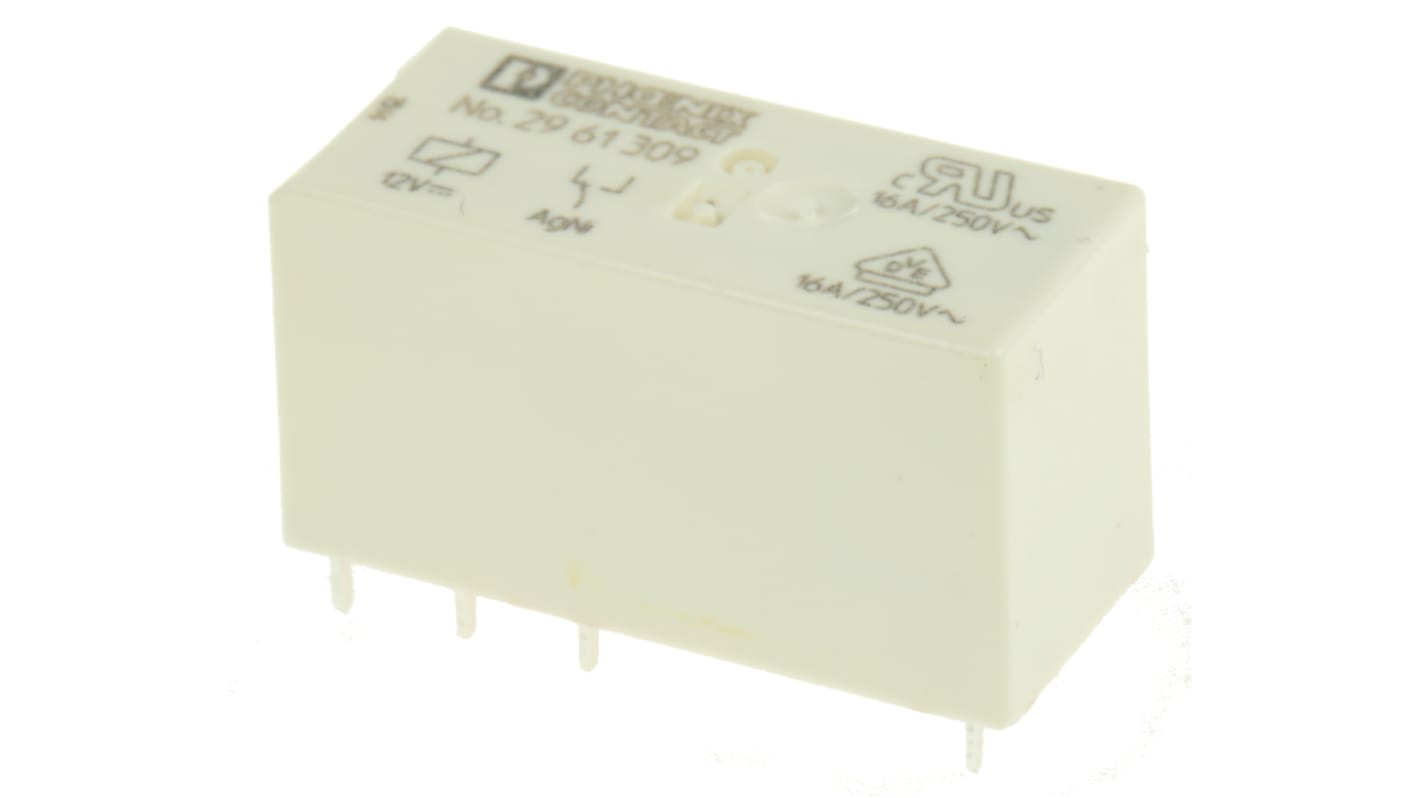

Phoenix Contact PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

£7.61

(exc. VAT)

£9.13

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 27 unit(s) ready to ship
  • Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£7.61
10 - 49£7.52
50 - 99£7.19
100 +£6.85

*price indicative

RS Stock No.:
507-9988
Mfr. Part No.:
2961309
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

1

Latching

No

Series

REL-MR- 12DC/21HC

Terminal Type

Through Hole

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

250V dc

Length

12.7mm

Coil Resistance

360Ω

Height

29mm

Contact Material

Silver Alloy

Depth

15.7mm

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Maximum Switching Power AC

4 kVA

Maximum Switching Power DC

384 W

Application

Power

COO (Country of Origin):
AT

Phoenix Contact Non-Latching Relays, REL-MR Series


Phoenix contacts REL-MR series of non-latching relays are commonly found within industrial environments, they are considered to be electrical and mechanical devices. This type of relay can often be referred to an electromechanical relay or an industrial switch.

Features & Benefits


• Pluggable miniature relays, with power contact for high continuous current
• Varied switching current dependant on the relay chosen from the REL-MR series
• Pluggable miniature relay - compact in size
• Additional hard gold plating
• AC and DC coil voltages
• Robust and hard wearing

What is a non-latching relay and how do they work?


A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.

A little more info


Non-latching relays support a range of signal characteristics, ranging from low voltage or current to high voltage or current and from DC to GHz frequencies.

What is the difference between a latching relay and a non-latching relay?


• When a latching relay operates its contacts, the relay holds its position, even when the supply of its operating coil has been disconnected.
• When a non-latching relay operates its contacts, the relay will reset automatically once the supply of its coil is disconnected through the internal spring mechanism.

Standards

  IEC 60255, EN 50178, EN 60730, IEC 60664

Approvals

  DIN VDE 0435, DIN VDE 0160, DIN VDE 0631, DIN VDE 0110
