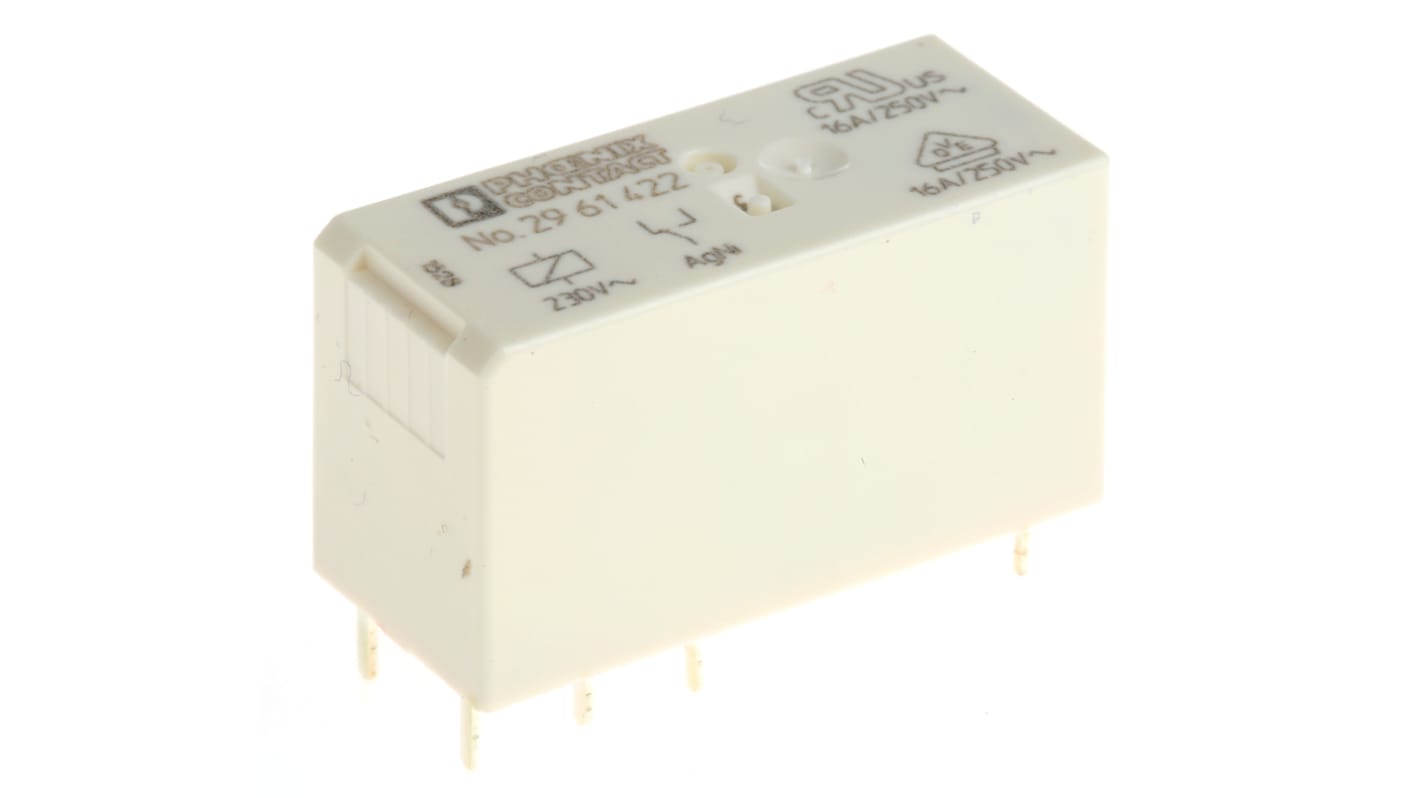

Phoenix Contact PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, SPDT

RS Stock No.:: 507-9966
Mfr. Part No.:: 2961422
Brand:: Phoenix Contact

Phoenix Contact PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

£12.66

(exc. VAT)

£15.19

(inc. VAT)

FREE delivery for orders over £50.00

Limited stock

3 left, ready to ship
Plus 6 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 24	£12.66
25 - 99	£12.01
100 - 249	£10.82
250 - 499	£10.22
500 +	£9.70

*price indicative

RS Stock No.:: 507-9966
Mfr. Part No.:: 2961422
Brand:: Phoenix Contact

Phoenix Contact REL-MR-230AC/21HC Series Power Relay, 230V AC Coil Voltage, 16A Switching Current - 2961422

This power relay is designed for PCB mounting and operates at 230V AC. It features a single changeover contact with a maximum switching current of 16A. Compactly sized at 12.7mm x 15.7mm x 29mm, it provides effective performance in various automation and industrial applications.

Features & Benefits

• Capable of switching high currents up to 16A provides reliable performance
• Latching function not required ensures effective operation without the need for additional mechanisms
• Manufactured from silver alloy offers enhanced reliability and durability for consistent operation
• Operates within a temperature range of -40°C to +85°C ensures performance across a wide temperature range
• RT III-proof design ensures wash resistance for use in harsh environments
• Suitable for both AC and DC voltage switching up to 250V provides versatility

Applications

• Used for controlling industrial machinery and equipment
• Enables power management in automation systems
• Ideal for requiring quick relay response times
• Compatible with systems needing high-power control solutions

What is the input voltage range for effective operation?

The input voltage range for optimal performance is from 179.4V AC to 356.5V AC, accommodating various operational needs in different systems.

How can this relay be mounted in electrical systems?

It employs a PCB mount method, allowing for straightforward integration into existing circuit designs without complex installation processes.

What is the significance of its switching characteristics?

The relay is equipped with a changeover contact which ensures versatility in switching functions, making it suitable for both normally open and normally closed applications.

What environmental conditions can this relay withstand?

It is designed to function in extreme temperatures, ranging from -40°C to +85°C, making it adaptable for various industrial environments.

What is the expected mechanical service life of this relay?

It boasts a mechanical lifespan of approximately 10million cycles, which enhances durability and reduces maintenance needs over time.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Coil Voltage	230V ac
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	16A
	Number of Poles	1
	Latching	No
	Series	REL-MR-230AC/21HC
	Terminal Type	Through Hole
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	250V dc
	Maximum Switching Current AC	16 A
	Length	12.7mm
	Coil Resistance	32500Ω
	Height	29mm
	Depth	15.7mm
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Life	10^7 Cylces
	Maximum Switching Power DC	384 W
	Maximum Switching Power AC	4 kVA
	Application	Power
	Dimensions	12.7 x 15.7 x 29mm

	Select all
	Brand Phoenix Contact
	Coil Voltage 230V ac
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 16A
	Number of Poles 1
	Latching No
	Series REL-MR-230AC/21HC
	Terminal Type Through Hole
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 250V dc
	Maximum Switching Current AC 16 A
	Length 12.7mm
	Coil Resistance 32500Ω
	Height 29mm
	Depth 15.7mm
	Contact Material Silver Alloy
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Life 10^7 Cylces
	Maximum Switching Power DC 384 W
	Maximum Switching Power AC 4 kVA
	Application Power
	Dimensions 12.7 x 15.7 x 29mm
