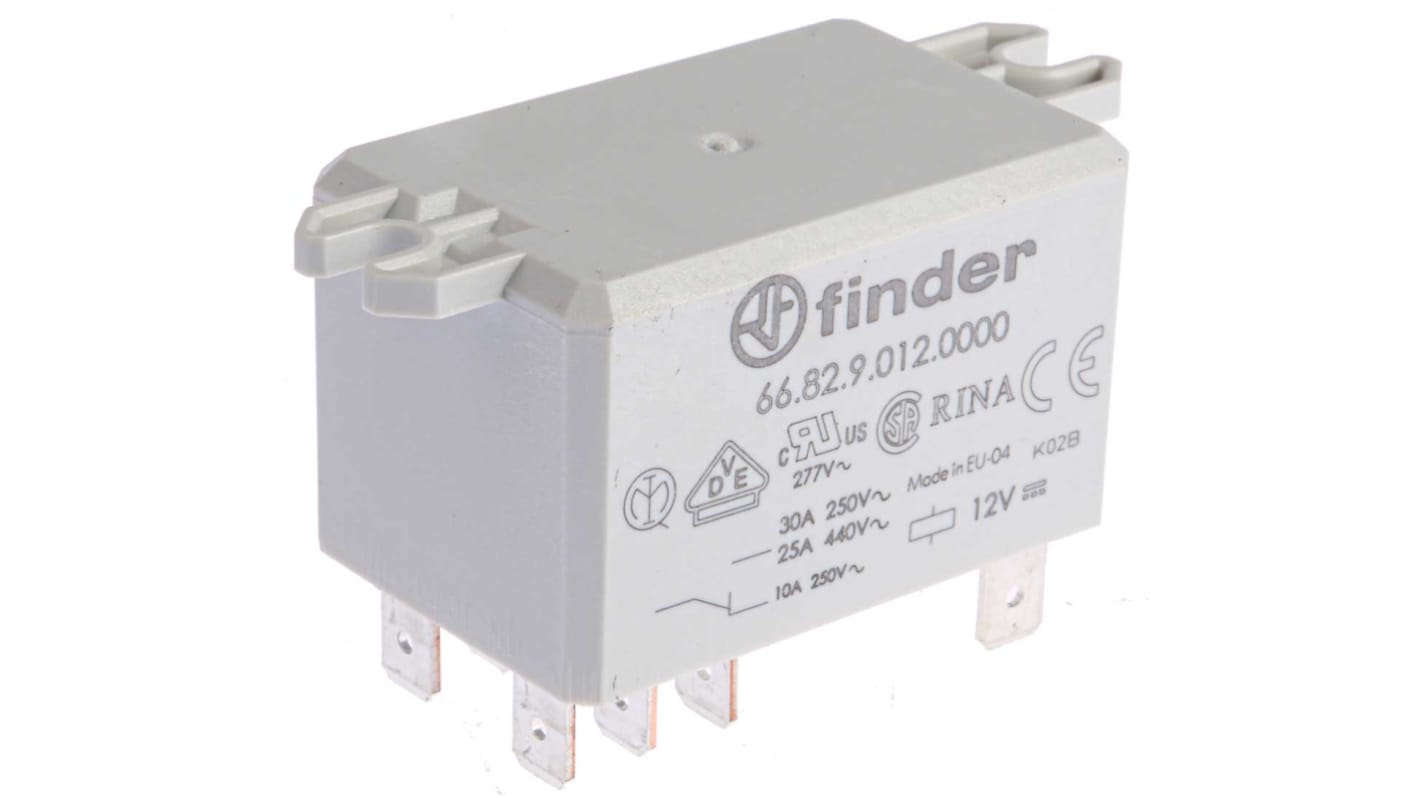

Finder Flange Mount Power Relay, 12V dc Coil, 30A Switching Current, DPDT
- RS Stock No.:
- 492-7218
- Mfr. Part No.:
- 66.82.9.012.0000
- Brand:
- Finder
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.38
(exc. VAT)
£22.06
(inc. VAT)
- RS Stock No.:
- 492-7218
- Mfr. Part No.:
- 66.82.9.012.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Flange Mount | |
| Switching Current | 30A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 250V ac | |
| Length | 68.5mm | |
| Coil Resistance | 85Ω | |
| Coil Power | 1.7W | |
| Series | 66 | |
| Depth | 33.5mm | |
| Contact Material | Silver Alloy | |
| Life | 100000 Cycles | |
| Isolation Coil To Contact | 6kV | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE, EAC | |
| Height | 31mm | |
| Maximum Switching Power DC | 1 kW | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Flange Mount | ||
Switching Current 30A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Length 68.5mm | ||
Coil Resistance 85Ω | ||
Coil Power 1.7W | ||
Series 66 | ||
Depth 33.5mm | ||
Contact Material Silver Alloy | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, EAC | ||
Height 31mm | ||
Maximum Switching Power DC 1 kW | ||
Application Power | ||
- COO (Country of Origin):
- ES
Finder Series 66 Power Relay, DPDT Contact Configuration, 12V DC Coil Voltage - 66.82.9.012.0000
This power relay is designed for high-performance applications that require dependable switching. With dimensions of 68.5mm in length, 33.5mm in depth, and 31mm in height, it operates at a coil voltage of 12V DC and features a double pole double throw (DPDT) contact configuration, making it appropriate for various uses in automation and electrical systems.
Features & Benefits
• Maximum switching voltage of 250V AC, suitable for high voltage applications
• Durable design with a lifespan of 100,000 cycles
• Flange mount design for easy installation
• Coil resistance of 85Ω for enhanced power efficiency
• Reinforced insulation improves safety standards
• Durable design with a lifespan of 100,000 cycles
• Flange mount design for easy installation
• Coil resistance of 85Ω for enhanced power efficiency
• Reinforced insulation improves safety standards
Applications
• Utilised in industrial washing machines for effective control
• Suitable for HVAC systems, including air conditioning units
• Employed in backup generators for consistent operation
• Ideal for industrial motors and power generators
• Used in boilers and furnaces for stability
• Suitable for HVAC systems, including air conditioning units
• Employed in backup generators for consistent operation
• Ideal for industrial motors and power generators
• Used in boilers and furnaces for stability
Can it handle high voltage applications?
Yes, it supports a maximum switching voltage of 250V AC.
Will it work in extreme temperatures?
It operates well within a temperature range of -40°C to +70°C.
Can the relay be mounted easily?
The flange mount design allows for straightforward installation.
Is it compliant with safety standards?
Yes, it meets CE and EAC standards for safety.
