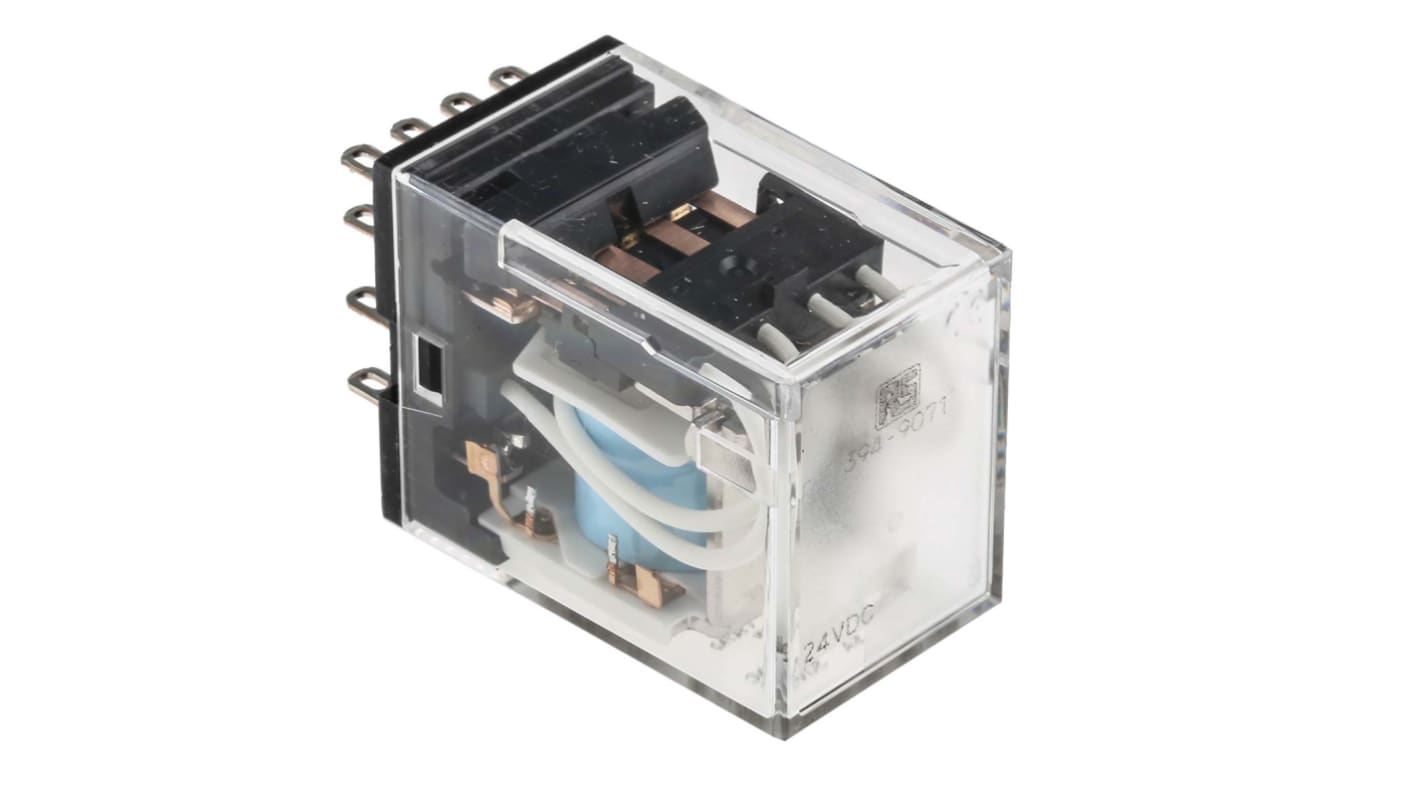

Omron Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 394-9071
- Mfr. Part No.:
- MY4 DC24
- Brand:
- Omron
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 394-9071
- Mfr. Part No.:
- MY4 DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 5A | |
| Number of Poles | 4 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 28mm | |
| Coil Resistance | 636Ω | |
| Coil Power | 900mW | |
| Depth | 21.5mm | |
| Standards Met | CE, CSA | |
| Series | MY4 | |
| Height | 36mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -55°C | |
| Isolation Coil To Contact | 2kV ac | |
| Life | 100000000 (Mechanical) cycles, 200000 (Electrical) cycles | |
| Contact Material | Gold Plated | |
| Maximum Switching Power AC | 1.25 kVA | |
| Maximum Switching Power DC | 150 W | |
| Dimensions | 36 x 28 x 21.5mm | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 28mm | ||
Coil Resistance 636Ω | ||
Coil Power 900mW | ||
Depth 21.5mm | ||
Standards Met CE, CSA | ||
Series MY4 | ||
Height 36mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -55°C | ||
Isolation Coil To Contact 2kV ac | ||
Life 100000000 (Mechanical) cycles, 200000 (Electrical) cycles | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 1.25 kVA | ||
Maximum Switching Power DC 150 W | ||
Dimensions 36 x 28 x 21.5mm | ||
Application Power | ||
- COO (Country of Origin):
- JP
OMRON Power Relay, 28 (L) x 36 (W) x 21.5mm (D), 4 Poles - MY4 Series - MY4 DC24
To bring your electrical devices to life, pick this power relay from OMRON. When you supply it with 24V DC, the general-purpose unit reliably opens or closes a connected circuit to make controlling motors, telecommunication networks and lighting systems a cinch. Thanks to its 4PDT design, you can create many different switching configurations to suit your needs. The gold-plated contacts deliver high conductivity for efficient operation. As this device consumes just 0.9W of power while it works, you can be sure it's an energy-conscious addition to your setup.
Features & Benefits
• Safe to operate in temperatures from -55°C to +70°C, so handles applications in challenging environments
• Speedy maximum switch time of just 20ms for near-instant responses
• Light weight of 35g won't strain your equipment
• Through-hole terminals for simple installation and a vibration-proof fix
• Speedy maximum switch time of just 20ms for near-instant responses
• Light weight of 35g won't strain your equipment
• Through-hole terminals for simple installation and a vibration-proof fix
Applications
• Manufacturing facilities
• Industrial process control
• Utilities sector
• Aerospace engineering
• Industrial process control
• Utilities sector
• Aerospace engineering
How durable is this unit?
This component handles up to 18,000 cycles per hour and has a total mechanical lifespan of 100 million operations, so it's a dependable piece of kit that will last a long time.
Approvals
UL; VDE; CSA
