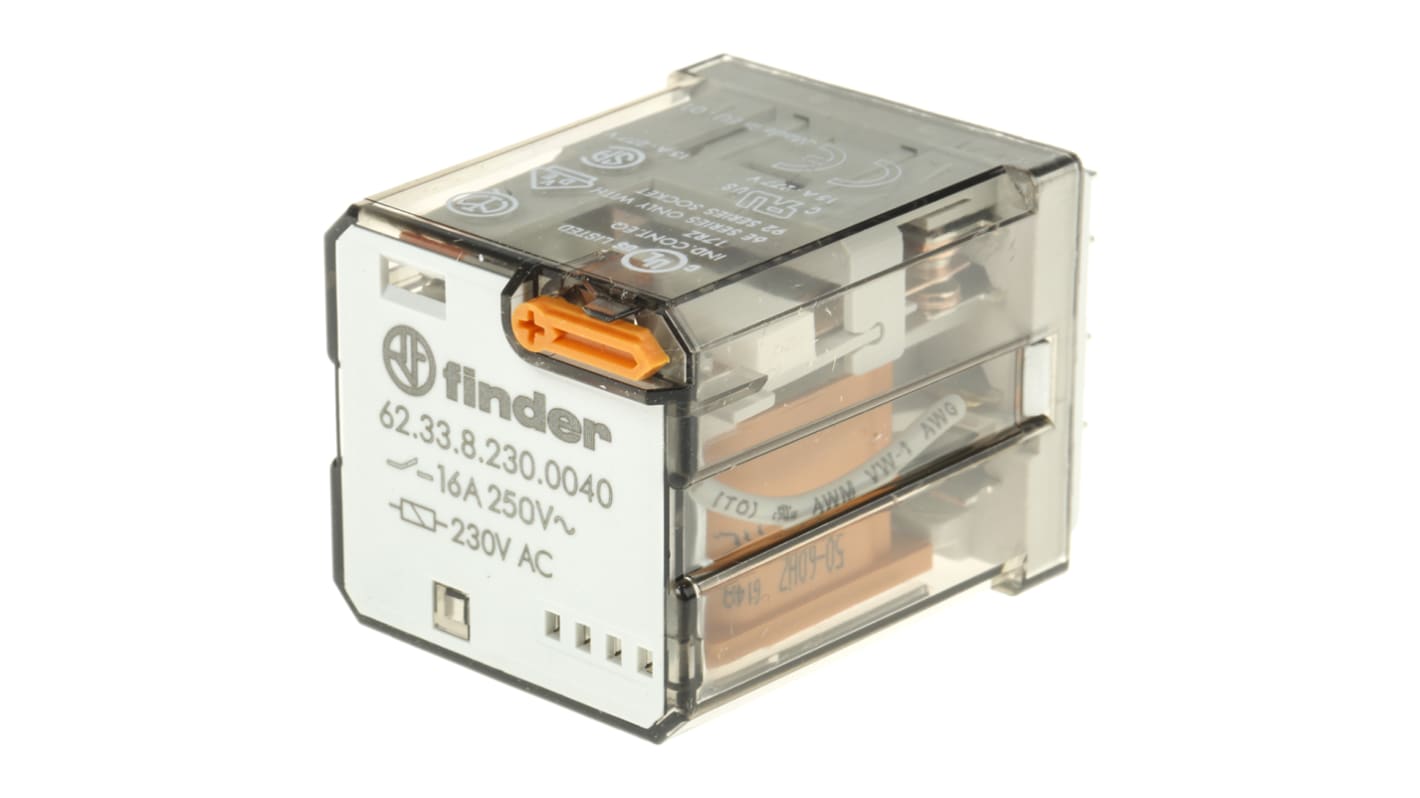

Finder Plug In Power Relay, 230V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 292-8736
- Mfr. Part No.:
- 62.33.8.230.0040
- Brand:
- Finder
Discontinued
- RS Stock No.:
- 292-8736
- Mfr. Part No.:
- 62.33.8.230.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 3PDT | |
| Mounting Type | Plug In | |
| Switching Current | 16A | |
| Number of Poles | 3 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 38.2mm | |
| Coil Resistance | 7250Ω | |
| Coil Power | 2.2W | |
| Height | 35.8mm | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 6kV | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Series | 62 Series | |
| Life | 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | |
| Depth | 49.1mm | |
| Maximum Switching Power AC | 4 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration 3PDT | ||
Mounting Type Plug In | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 400V ac | ||
Length 38.2mm | ||
Coil Resistance 7250Ω | ||
Coil Power 2.2W | ||
Height 35.8mm | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Series 62 Series | ||
Life 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | ||
Depth 49.1mm | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- IT
2 RT/3 RT 16A plug-in relays, series 62.32 and 62.33
Relays with 2 or 3 rest/work contacts (RT).
Permanent 16A current.
Housing equipped with a lockable mechanical test button.
Option to fit with time switch series 86 dual function or multi-function (357-6948 or 357-6954).
Mounts on universal supports with panel attachment, assembly on DIN rail.
Permanent 16A current.
Housing equipped with a lockable mechanical test button.
Option to fit with time switch series 86 dual function or multi-function (357-6948 or 357-6954).
Mounts on universal supports with panel attachment, assembly on DIN rail.
Approvals
UL and VDE, CE, CSA, and ABS
