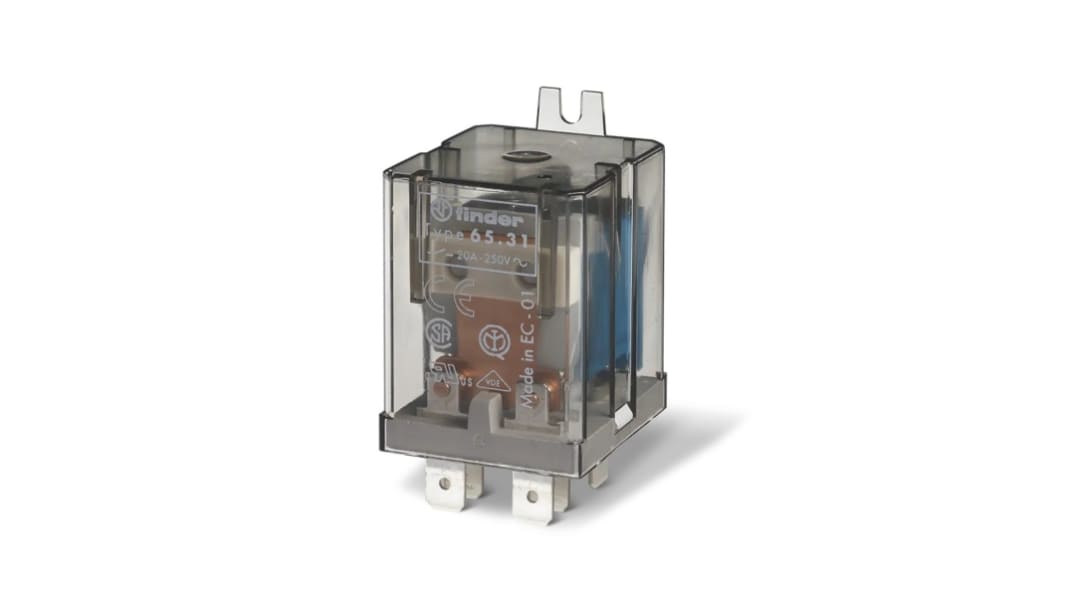

Finder Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, SPST
- RS Stock No.:
- 282-6701
- Mfr. Part No.:
- 653190244300
- Brand:
- Finder
Subtotal (1 unit)*
£15.13
(exc. VAT)
£18.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £15.13 |
*price indicative
- RS Stock No.:
- 282-6701
- Mfr. Part No.:
- 653190244300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST | |
Mounting Type | Flange Mount | |
Switching Current | 30A | |
Number of Poles | 1 | |
Series | 65 Series | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 26.4V dc | |
Coil Resistance | 445 O | |
Coil Power | 1.3W | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +75°C | |
Isolation Coil To Contact | 4kV | |
Standards Met | CCC, cRUus Recognized, CSA, EAC, VDE Approved | |
Life | 50000 Cycles | |
Dimensions | 32.2x57.2x36.5 | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type Flange Mount | ||
Switching Current 30A | ||
Number of Poles 1 | ||
Series 65 Series | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 26.4V dc | ||
Coil Resistance 445 O | ||
Coil Power 1.3W | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +75°C | ||
Isolation Coil To Contact 4kV | ||
Standards Met CCC, cRUus Recognized, CSA, EAC, VDE Approved | ||
Life 50000 Cycles | ||
Dimensions 32.2x57.2x36.5 | ||
- COO (Country of Origin):
- IT
Finder 65 Series Power Relay, 24V DC Coil Voltage, 30A Switching Current - 653190244300
This power relay offers efficient control in various applications, featuring a coil voltage of 24V DC and a robust switching capability of up to 30A. Designed for flange mounting, it measures 32.2x57.2x36.5mm, ensuring versatility and ease of integration into different systems. The relay operates effectively within a temperature range of -40°C to 75°C, making it suitable for diverse environments.
Features & Benefits
• SPST configuration provides reliable on/off switching
• High switching current of 30A supports demanding applications
• Maximum switching voltage of 250V AC accommodates various loads
• Long operational life rated at 50,000 cycles enhances durability
• Isolation between coil and contact at 4kV ensures safety
• Robust AgSnO2 contact material improves performance under load
• High switching current of 30A supports demanding applications
• Maximum switching voltage of 250V AC accommodates various loads
• Long operational life rated at 50,000 cycles enhances durability
• Isolation between coil and contact at 4kV ensures safety
• Robust AgSnO2 contact material improves performance under load
Applications
• Used in industrial washing machines for reliable operation
• Ideal for controlling burners, boilers, and furnaces
• Utilised in power generation systems for effective management
• Suitable for Jacuzzis and hot tubs, enhancing control capabilities
• Employed in panels for electrical distribution to maintain efficiency
• Ideal for controlling burners, boilers, and furnaces
• Utilised in power generation systems for effective management
• Suitable for Jacuzzis and hot tubs, enhancing control capabilities
• Employed in panels for electrical distribution to maintain efficiency
What is the importance of the contact configuration in this relay?
The SPST (Single Pole Single Throw) configuration facilitates simple on/off control, making it efficient for most switching applications where basic electrical isolation is required.
Can this relay handle inductive loads?
Yes, the relay is designed to manage inductive loads effectively, ensuring reliable operation in applications such as motors and transformers.
What is the significance of the maximum switching voltage?
The capability to switch up to 250V AC allows for compatibility with a wide range of electrical systems, enhancing the versatility of its applications.
How does the isolation rating affect performance?
The 4kV isolation between the coil and contact enhances safety by preventing electrical interference, which is critical in high-voltage applications.
