Finder Flange Mount Power Relay, 230V dc Coil, 16A Switching Current, DPDT
- RS Stock No.:
- 282-6683
- Mfr. Part No.:
- 628282304300
- Brand:
- Finder
Subtotal (1 unit)*
£17.67
(exc. VAT)
£21.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.67 |
*price indicative
- RS Stock No.:
- 282-6683
- Mfr. Part No.:
- 628282304300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V dc | |
Contact Configuration | DPDT | |
Mounting Type | Flange Mount | |
Switching Current | 16A | |
Number of Poles | 2 | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V dc | ||
Contact Configuration DPDT | ||
Mounting Type Flange Mount | ||
Switching Current 16A | ||
Number of Poles 2 | ||
- COO (Country of Origin):
- IT

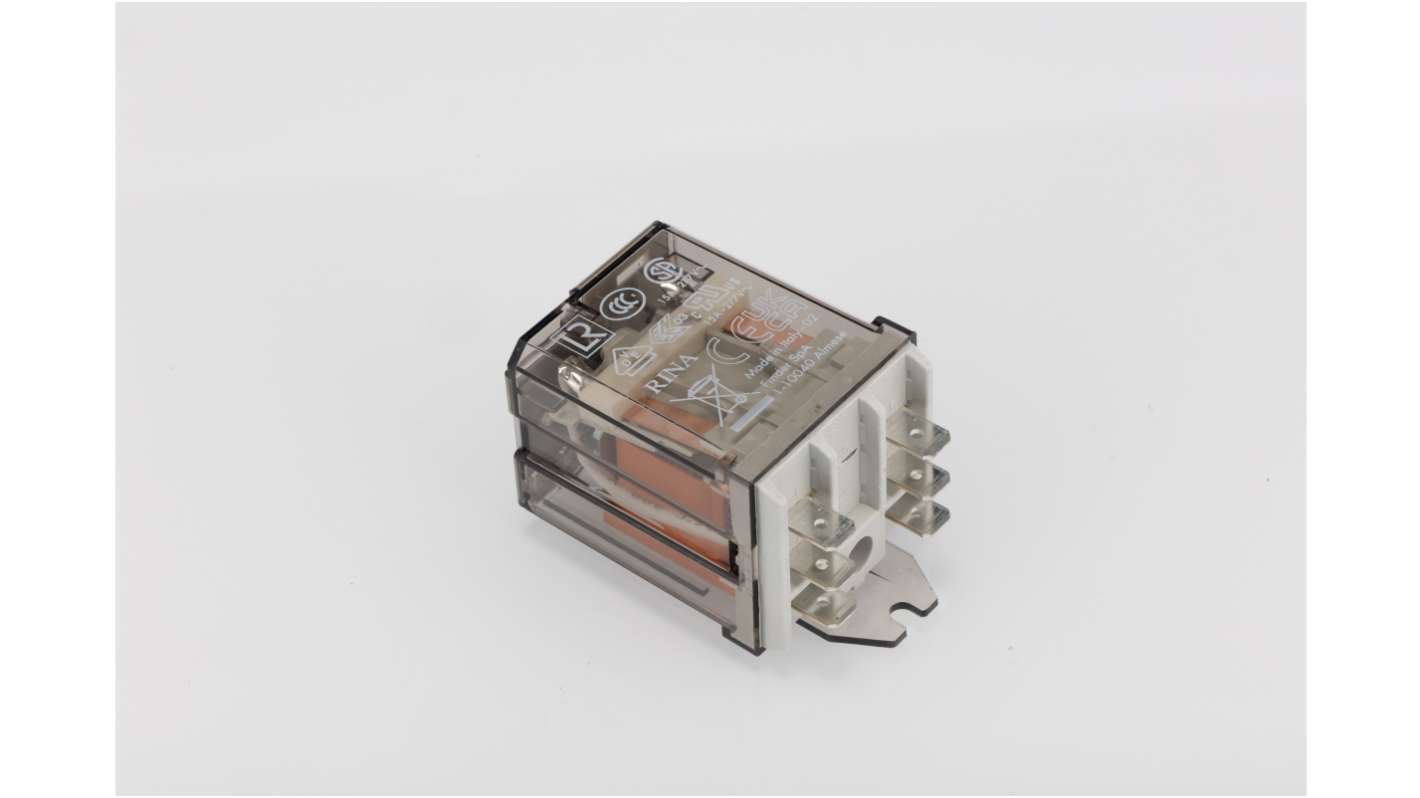

Finder Series 62 Power Relay, 230V DC Coil Voltage, 16A Switching Current - 628282304300
This power relay is designed for efficient control in electrical systems, operating at a coil voltage of 230V DC. It features a dual-pole, single-throw (DPST) configuration and is mounted via a flange mount design. Built to withstand a maximum switching voltage of 400V AC and 220V DC, it is suitable for various industrial applications. The power relay is rated for 16A and complies with CE standards, ensuring reliability in demanding settings.
Features & Benefits
• Supports a maximum switching current of 16A
• Features AgSnO2 contact material for improved performance
• Capable of lasting up to 100,000 cycles for longevity
• Flange mount design facilitates secure installation
• Features AgSnO2 contact material for improved performance
• Capable of lasting up to 100,000 cycles for longevity
• Flange mount design facilitates secure installation
Applications
• Suitable for road and tunnel lighting systems
• Ideal for use in industrial furnaces and ovens
• Used in the control and management of electric power
• Can be used in circuit breakers and industrial motors
• Enables effective operation for automatic punches and cleaners
• Ideal for use in industrial furnaces and ovens
• Used in the control and management of electric power
• Can be used in circuit breakers and industrial motors
• Enables effective operation for automatic punches and cleaners
How does the DPST configuration enhance functionality in electrical systems?
The DPST configuration allows for greater versatility in switching control by enabling two circuits to be controlled simultaneously, which is beneficial for managing multiple loads efficiently.
What is the significance of incorporating AgSnO2 as contact material?
AgSnO2 is preferred for its superior contact performance, enhancing reliability and minimising wear during operation, especially under high loads and repetitive switching cycles.
What environmental factors can affect the performance of this relay?
Operating temperatures ranging from -40°C to +50°C can significantly impact performance. Outside this range, the relay may fail to operate reliably or sustain damage.
How does the relay perform under high-voltage conditions?
With a maximum switching voltage of 400V AC and 220V DC, this relay performs reliably under high-voltage conditions, ensuring safe and efficient operation in industrial applications.
