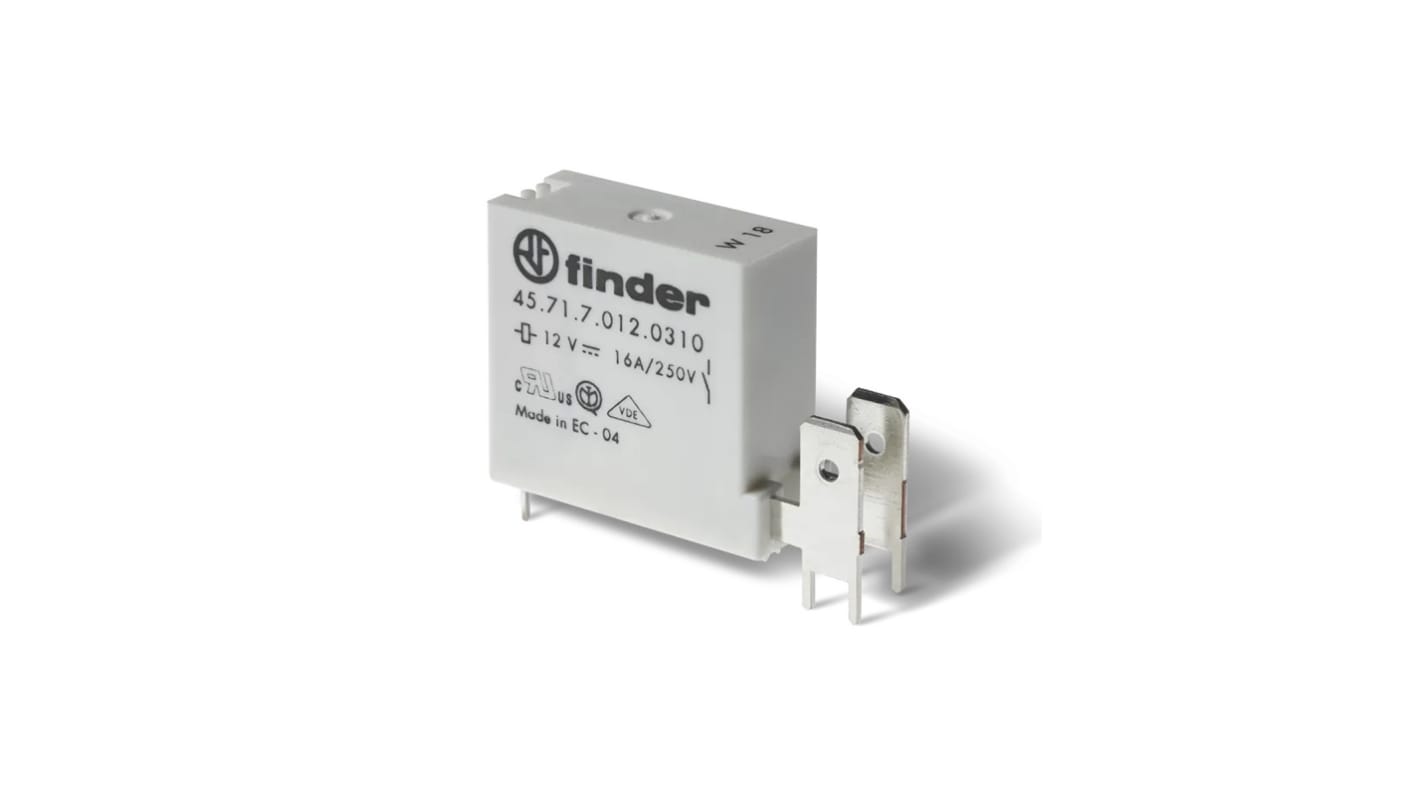

Finder Power Relay, 12V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 282-6662
- Distrelec Article No.:
- 137-44-372
- Mfr. Part No.:
- 457170121310
- Brand:
- Finder
Subtotal (1 unit)*
£6.60
(exc. VAT)
£7.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 50 unit(s) shipping from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.60 |
*price indicative
- RS Stock No.:
- 282-6662
- Distrelec Article No.:
- 137-44-372
- Mfr. Part No.:
- 457170121310
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Series | 45 | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Coil Resistance | 7.2kΩ | |
| Coil Power | 0.55W | |
| Standards/Approvals | EN 61810-1, EN 61439-7:2018, EN 61000-4-5, EN 60730-1, EN 60335-1, EN 60204, EN 50178 | |
| Contact Material | Silver Cadmium Oxide, Silver Nickel Alloy, Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Series 45 | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Coil Resistance 7.2kΩ | ||
Coil Power 0.55W | ||
Standards/Approvals EN 61810-1, EN 61439-7:2018, EN 61000-4-5, EN 60730-1, EN 60335-1, EN 60204, EN 50178 | ||
Contact Material Silver Cadmium Oxide, Silver Nickel Alloy, Silver Tin Oxide | ||
- COO (Country of Origin):
- ES
The Finder Miniature PCB relay with Cadmium Free option available, reinforced insulation between coil and contacts according to EN 60335-1 (VDE 0700), with safe separation and 8 mm clearance and creepage distance 6 kV (1.2/50 μs) isolation.
Max ambient temperature+125°C
Type of insulation Reinforced (8 mm)
