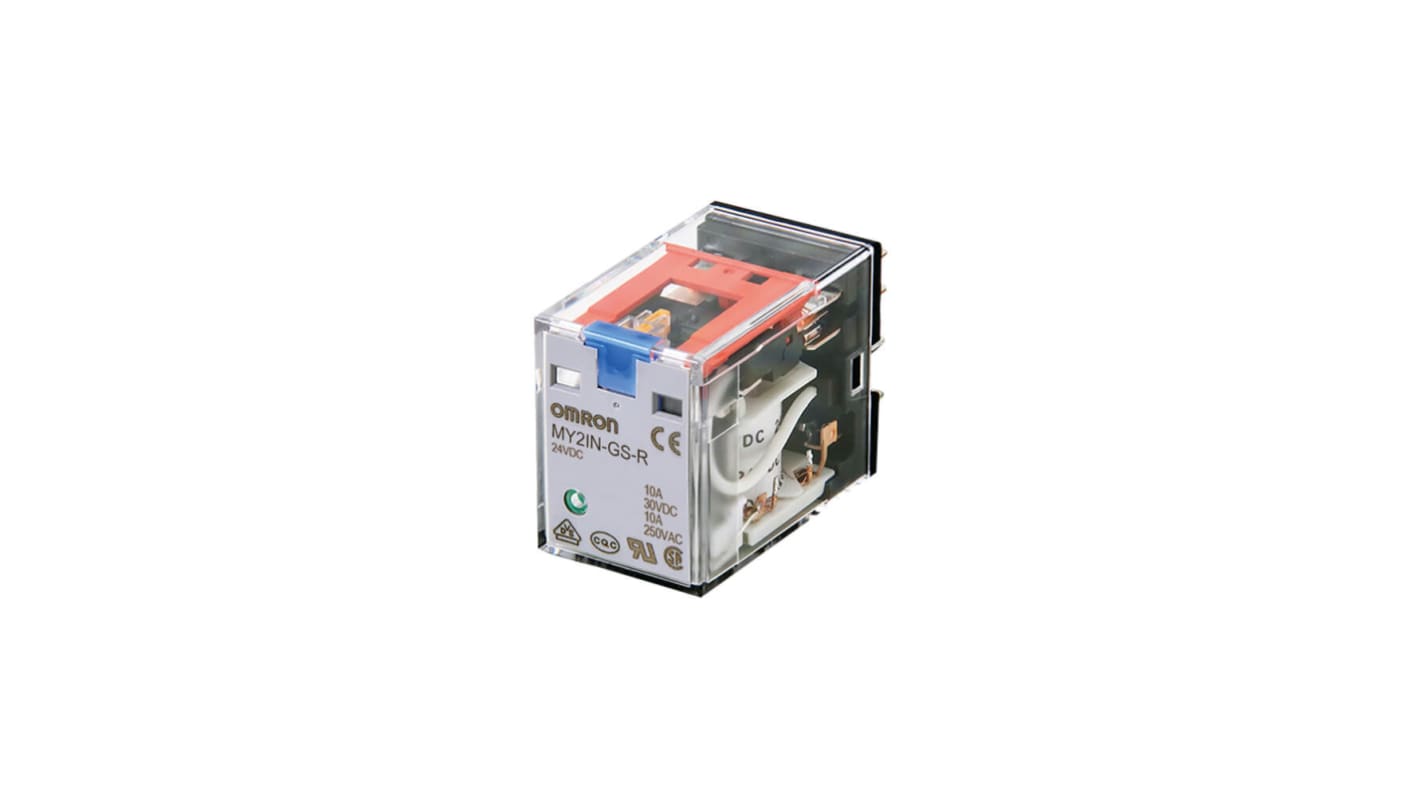

Omron Plug In Latching Power Relay, 12V dc Coil, 10A Switching Current, DPDT

RS Stock No.:: 271-1916
Mfr. Part No.:: MY2IN-D2-GS-R DC12
Brand:: Omron

Omron Plug In Latching Power Relay, 12V dc Coil, 10A Switching Current, DPDT

Subtotal (1 unit)*

£13.57

(exc. VAT)

£16.28

(inc. VAT)

Stock information currently inaccessible

Units	Per unit
1 +	£13.57

*price indicative

RS Stock No.:: 271-1916
Mfr. Part No.:: MY2IN-D2-GS-R DC12
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	12V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Latching	Yes
	Series	MY
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V
	Maximum Switching Voltage DC	220V
	Maximum Switching Current DC	10 A
	Maximum Switching Current AC	10 A
	Length	28mm
	Coil Resistance	165 Ω
	Coil Power	900mW
	Standards Met	CQC, CSA, IEC, UL
	Life	500000 cycles
	Contact Material	Silver
	Height	36mm
	Isolation Coil To Contact	2kV ac
	Depth	36mm
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+70°C
	Width	21.5mm
	Maximum Switching Power DC	10000 mW
	Maximum Switching Power AC	10 VA
	Number of Coils	Single
	Application	General Purpose, Industrial
	Dimensions	28 x 21.5 x 36mm

	Select all
	Brand Omron
	Coil Voltage 12V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Latching Yes
	Series MY
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V
	Maximum Switching Voltage DC 220V
	Maximum Switching Current DC 10 A
	Maximum Switching Current AC 10 A
	Length 28mm
	Coil Resistance 165 Ω
	Coil Power 900mW
	Standards Met CQC, CSA, IEC, UL
	Life 500000 cycles
	Contact Material Silver
	Height 36mm
	Isolation Coil To Contact 2kV ac
	Depth 36mm
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +70°C
	Width 21.5mm
	Maximum Switching Power DC 10000 mW
	Maximum Switching Power AC 10 VA
	Number of Coils Single
	Application General Purpose, Industrial
	Dimensions 28 x 21.5 x 36mm

RoHS Status: Exempt

COO (Country of Origin):: CN

OMRON Power Relay, 2kV AC Dielectric Strength, 20ms Maximum Release Time - MY Series - MY2IN-D2-GS-R DC12

For precise control over your electrical appliances, switch to this power relay from OMRON. It features an electromagnetic coil that generates a magnetic field when energised. This force pushes its contacts to close and allows power to flow to downstream equipment. Thanks to the unit's transparent housing, it's easy to monitor its internal workings and diagnose faults. It also has integrated LED and mechanical indicators, so you're always on top of its operating state. For extra safety, the relay comes with a diode to suppress transient voltages and keep your equipment out of harm's way.

Features & Benefits

• Works reliably in temperatures ranging between -55°C and +70°C, making it safe for use in challenging conditions
• Light weight of 35g means it's easy to handle during installation and puts minimal strain on your mounting surface
• Supports plug-in and solder mounting to meet your design needs
• Dielectric strength of 2kV AV shows that it's a reliable insulator in high-voltage settings

Applications

• Industrial lighting systems
• Server banks
• Process and packaging industry

What's the mechanical endurance of this power relay?

This unit withstands up to 50 million operating cycles, so you can rely on it for long-lasting performance.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
