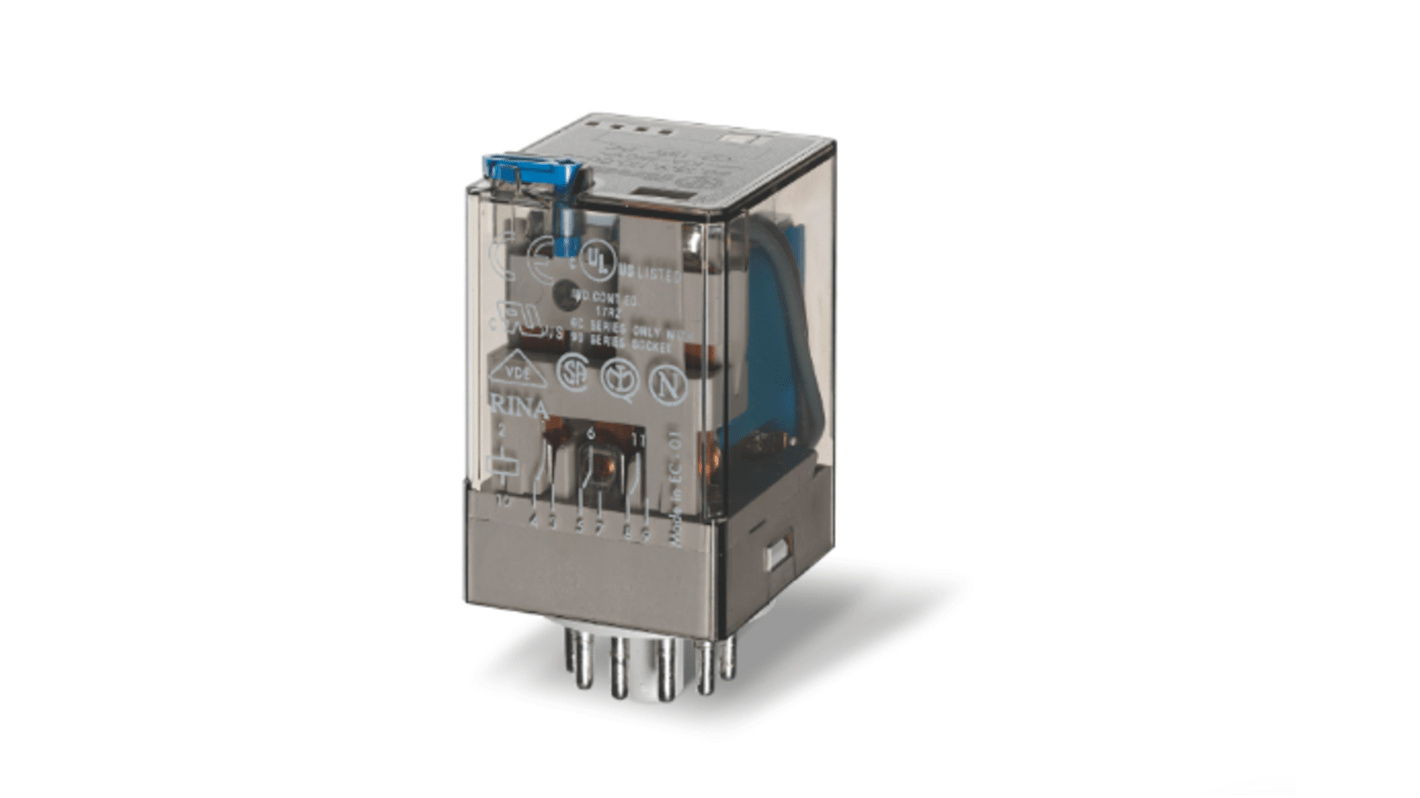

Finder Plug-In Mount Relay, 24V dc Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 257-7399
- Distrelec Article No.:
- 301-58-622
- Mfr. Part No.:
- 601390240074
- Brand:
- Finder
Subtotal (1 unit)*
£22.75
(exc. VAT)
£27.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 30 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £22.75 |
*price indicative
- RS Stock No.:
- 257-7399
- Distrelec Article No.:
- 301-58-622
- Mfr. Part No.:
- 601390240074
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | 3PDT | |
Mounting Type | Plug-In Mount | |
Switching Current | 10A | |
Number of Poles | 3 | |
Series | 60 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 2.2W | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 3.6kV | |
Life | 200000 Cycles | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Maximum Operating Temperature | +70°C | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration 3PDT | ||
Mounting Type Plug-In Mount | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Series 60 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 2.2W | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 3.6kV | ||
Life 200000 Cycles | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Maximum Operating Temperature +70°C | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 60 Relay, 24V DC Coil Voltage, 10A Switching Current - 601390240074
This relay is a high-performance device designed for various industrial applications. Operating at a coil voltage of 24V DC, this 3PDT relay features a plug-in mount that simplifies installation. Its versatile design makes it suitable for controlling and switching in automation systems, ensuring efficiency and reliability across different environments.
Features & Benefits
• Operates at a maximum switching voltage of 400V AC and 220V DC
• Supports a switching current of up to 10A for robust performance
• Utilises AgNi contact material for reduced wear and improved durability
• Provides isolation between the coil and contact with a strength of 3.6kV
• Designed for temperatures ranging from -40°C to +70°C to suit diverse conditions
• Achieves a mechanical life of 20 million cycles for extended usage
• Supports a switching current of up to 10A for robust performance
• Utilises AgNi contact material for reduced wear and improved durability
• Provides isolation between the coil and contact with a strength of 3.6kV
• Designed for temperatures ranging from -40°C to +70°C to suit diverse conditions
• Achieves a mechanical life of 20 million cycles for extended usage
Applications
• Utilised in control panels for reliable signal switching
• Ideal for electrical distribution panels in various industries
• Employed in lighting for roads and tunnels
• Suitable for operation with hoists, cranes, and other lifting equipment
• Engaged in both burner and boiler control systems
• Ideal for electrical distribution panels in various industries
• Employed in lighting for roads and tunnels
• Suitable for operation with hoists, cranes, and other lifting equipment
• Engaged in both burner and boiler control systems
How does this relay ensure operational stability in extreme temperatures?
The relay's design accommodates a wide ambient temperature range of -40°C to +70°C, ensuring reliable performance in both hot and cold environments. This versatility is crucial for applications in various industrial settings.
What makes AgNi contact material beneficial for this relay?
The use of AgNi contact material significantly reduces contact wear, enhancing the relay's longevity and reliability. This feature also supports efficient operation by providing stable electrical connections under load.
Can this relay be installed in standard control panels?
Yes, its plug-in mounting type allows for easy integration into standard control panels, making installation straightforward and efficient without the need for special tools.
What switching capability does this relay offer?
This relay can handle a maximum switching current of 10A, making it suitable for various applications requiring robust and reliable switching solutions.
How does the insulation between the coil and contacts contribute to safety?
The isolation strength of 3.6kV ensures that there is significant protection against electrical faults, enhancing the overall safety of the system in which the relay is used.
