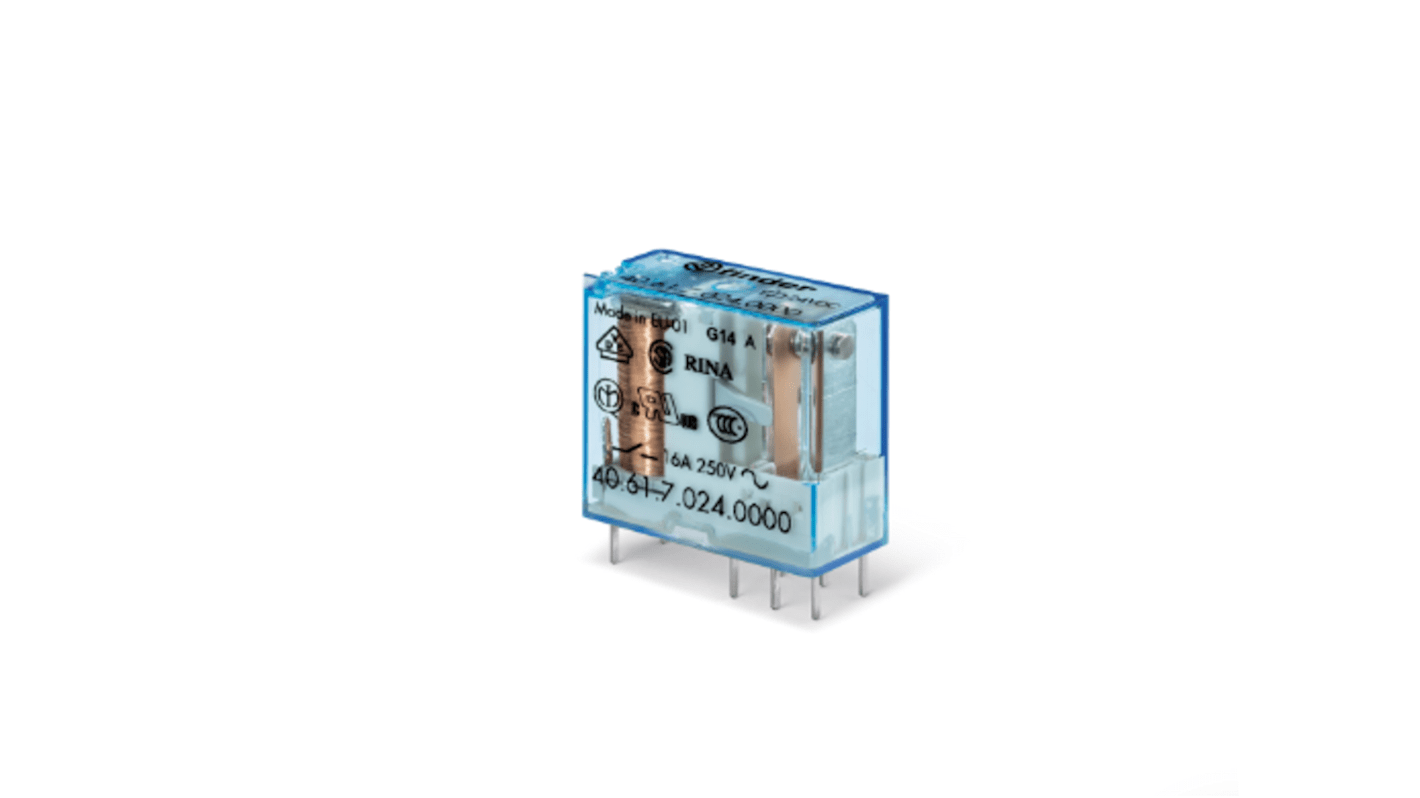

Finder PCB Mount, Plug In Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 257-7370
- Distrelec Article No.:
- 301-76-527
- Mfr. Part No.:
- 406190240000
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 257-7370
- Distrelec Article No.:
- 301-76-527
- Mfr. Part No.:
- 406190240000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount, Plug In | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount, Plug In | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 40 Relay, 24V DC Coil Voltage, 16A Switching Current - 406190240000
This relay is a miniature PCB mount device designed for automation and control applications. Suitable for various high-performance tasks, it operates at a coil voltage of 24V DC, delivering up to 16A switching current. The relay ensures reliable operation within a temperature range of -40°C to +85°C, making it versatile for industrial environments.
Features & Benefits
• SPDT configuration allows flexible circuit design
• Rated for a maximum switching voltage of 400V AC
• Integrated 0.65W coil power enhances energy efficiency
• Medium-sized relay ideal for diverse usage
• Rated for a maximum switching voltage of 400V AC
• Integrated 0.65W coil power enhances energy efficiency
• Medium-sized relay ideal for diverse usage
Applications
• Utilised in control panels for medical devices
• Implemented in toys for automated operations
• Used in automation systems for blinds and shutters
• Effective in electronic circuit boards for reliable connectivity
• Can be used in vending machines for operational stability
• Implemented in toys for automated operations
• Used in automation systems for blinds and shutters
• Effective in electronic circuit boards for reliable connectivity
• Can be used in vending machines for operational stability
How does the relay perform under varying temperatures?
It operates efficiently across a broad temperature range from -40°C to +85°C, ensuring consistent performance in different environments.
What type of connectivity options are available with this relay?
It features both PCB mount and plug-in options, allowing for easy integration into various designs and configurations.
What is the significance of the SPDT configuration in this relay?
The SPDT (Single Pole Double Throw) configuration allows for greater versatility in circuit design, enabling the switching of multiple devices with one relay.
How long can this relay maintain its performance?
Designed for durability, it has an expected operational life of up to 100,000 cycles under rated load conditions.
What power should the relay coil be rated for optimal operation?
The relay operates effectively with a coil rated at 24V DC, ensuring optimal functioning across specified applications.
