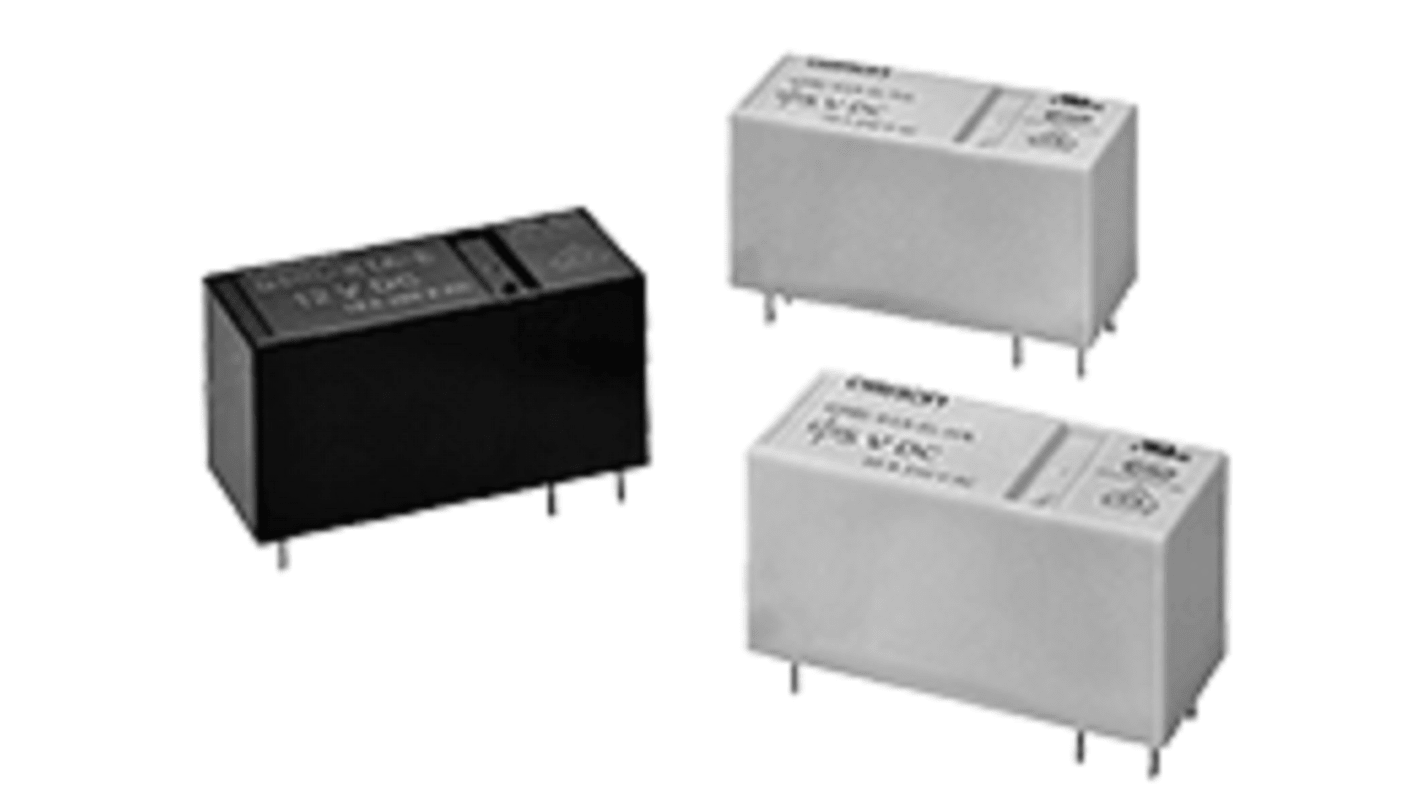

Omron PCB Mount Latching Power Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 254-3137
- Mfr. Part No.:
- G5RL-K1A-E DC24
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 254-3137
- Mfr. Part No.:
- G5RL-K1A-E DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | Yes | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching Yes | ||
- COO (Country of Origin):
- CN
The Omron power relay is small-size and low-back high performance latching relay that realizes a 16-A high inrush switching current. Compatible wIth the international safety standard for electrical/ electronic household appliances.
Creepage distance 8 mm between coil and contacts
10 kV impulse withstand voltage
Ambient operating temperature 85°C
In-rush resistant and supports illumination load
Compatible with capacitor load (IEC60669-1) (G5RL-@1A-EL-HA)
10 kV impulse withstand voltage
Ambient operating temperature 85°C
In-rush resistant and supports illumination load
Compatible with capacitor load (IEC60669-1) (G5RL-@1A-EL-HA)
