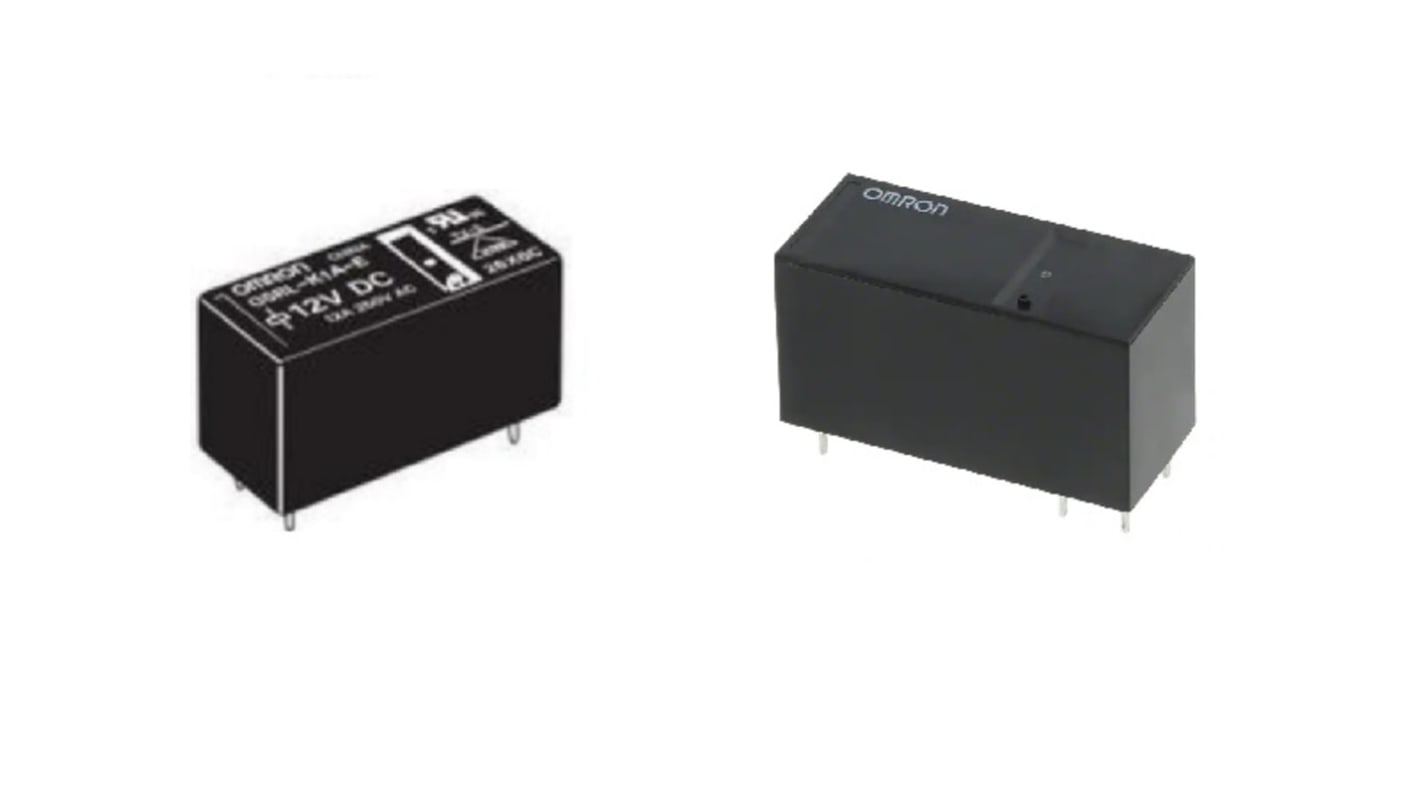

Omron PCB Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 243-6585
- Mfr. Part No.:
- G5RL-K1A-E DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 tube of 100 units)*
£752.40
(exc. VAT)
£902.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 100 | £7.524 | £752.40 |
| 200 - 400 | £7.261 | £726.10 |
| 500 + | £7.11 | £711.00 |
*price indicative
- RS Stock No.:
- 243-6585
- Mfr. Part No.:
- G5RL-K1A-E DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Product Type | Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | G5RL-U/-K | |
| Terminal Type | PCB Pin | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 277V ac | |
| Switching DC Voltage | 24V dc | |
| Coil Resistance | 192Ω | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 140mW | |
| Length | 50mm | |
| Standards/Approvals | CQC Certified (File No. CQC21002283993), CSA Certified (File No. LR31928), UL Recognised (File No. E41643), VDE Certified (EN61810-1) (License No. 40007172) | |
| Height | 15mm | |
| Width | 10mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Product Type Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series G5RL-U/-K | ||
Terminal Type PCB Pin | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 277V ac | ||
Switching DC Voltage 24V dc | ||
Coil Resistance 192Ω | ||
Maximum Operating Temperature 85°C | ||
Coil Power 140mW | ||
Length 50mm | ||
Standards/Approvals CQC Certified (File No. CQC21002283993), CSA Certified (File No. LR31928), UL Recognised (File No. E41643), VDE Certified (EN61810-1) (License No. 40007172) | ||
Height 15mm | ||
Width 10mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron G5RL series is a low profile power relays have single pole comes in various models. The coil voltage is 12 Vdc, coil resistance is 192 ohms, and coil current is 62.5 mA. It has Silver alloy (Ag) coated contacts.
Feature creepage distance of 8mm between coil and contacts
An ambient operating temperature of 85ºC
