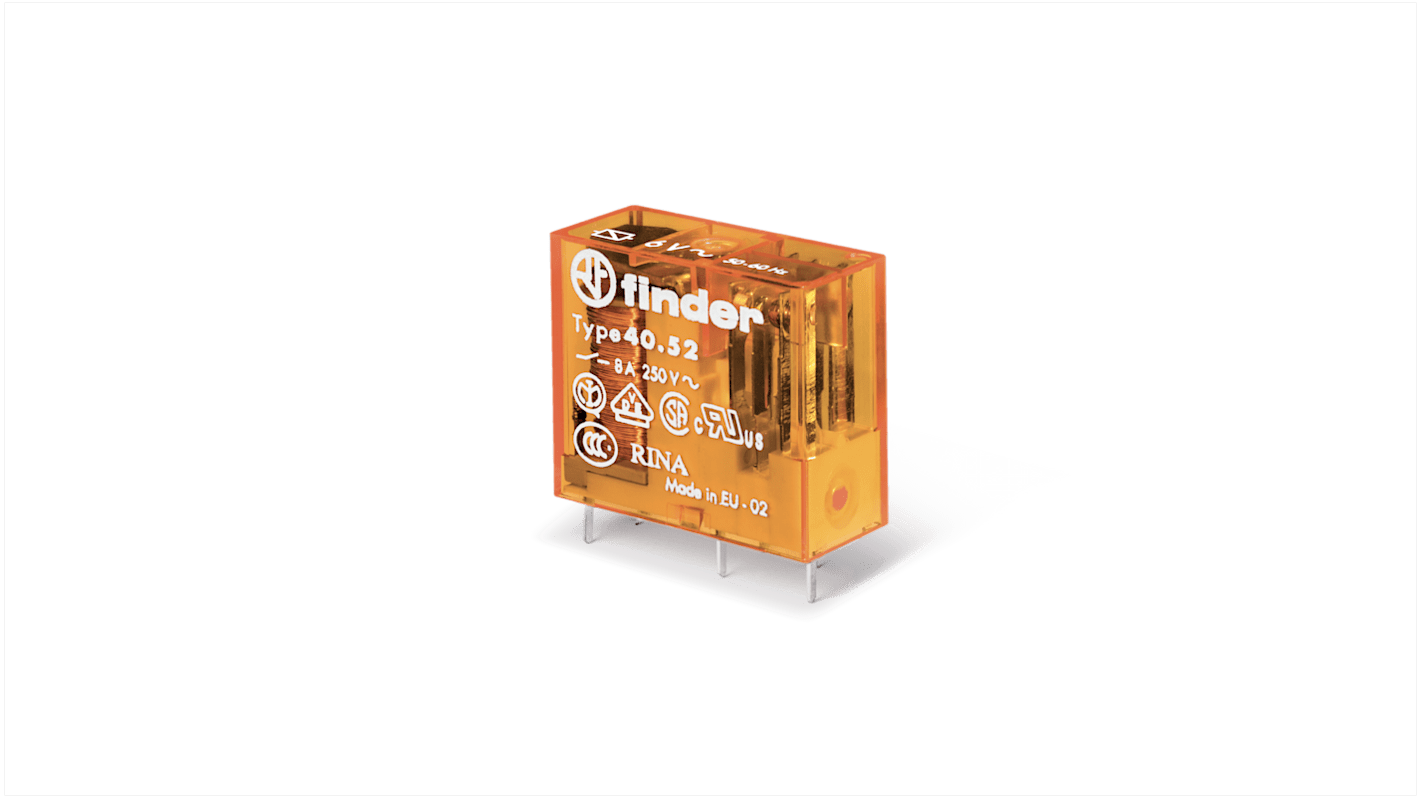

Finder PCB Mount Relay, 24V dc Coil, 8A Switching Current
- RS Stock No.:
- 249-4437
- Mfr. Part No.:
- 40.52.9.024.4000
- Brand:
- Finder
Subtotal (1 unit)*
£7.44
(exc. VAT)
£8.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 147 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £7.44 |
*price indicative
- RS Stock No.:
- 249-4437
- Mfr. Part No.:
- 40.52.9.024.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
- COO (Country of Origin):
- IT
Finder Series 40 Relay, 24V DC Coil Voltage, 8A Switching Current - 40.52.9.024.4000
This relay is an electromechanical component designed for efficient signal switching in various applications. With a coil voltage of 24V DC, this DPDT relay is suitable for PCB mounting and operates within an ambient temperature range of -40 to +85°C. The relay features a robust design that ensures reliable performance over an impressive lifespan of up to 100,000 cycles.
Features & Benefits
• Capable of handling a switching current of up to 8A
• Maximum switching voltage of up to 400V AC for robust applications
• Operates efficiently with a coil power requirement of just 0.65W
• Created for single coil operation, enhancing reliability in automation
• AgNi contact material ensures stable and durable connections
• Maximum switching voltage of up to 400V AC for robust applications
• Operates efficiently with a coil power requirement of just 0.65W
• Created for single coil operation, enhancing reliability in automation
• AgNi contact material ensures stable and durable connections
Applications
• Used For medical and dental equipment
• Suitable for control panels for electrical distribution
• Used for automation within blinds, grilles, and shutters
• Recommended for door and gate openers for reliable operation
• Suitable for operation in vending machine systems
• Suitable for control panels for electrical distribution
• Used for automation within blinds, grilles, and shutters
• Recommended for door and gate openers for reliable operation
• Suitable for operation in vending machine systems
What are the maximum voltage capacities for switching?
This relay can switch a maximum voltage of 400V AC and 125V DC, providing versatility in application across various electrical systems.
How does this relay perform under extreme temperatures?
Designed for temperatures ranging from -40 to +85°C, it remains operational in both very cold and hot environments, ensuring reliability in diverse conditions.
What is the lifespan regarding mechanical and electrical usage?
This relay features a mechanical life of 10 million cycles and an electrical life of 100,000 cycles at rated load, guaranteeing durability and long-term usage.
How does the relay manage circuit protection?
The relays construction includes critical insulation with a dielectric strength of 6kV between the coil and contacts, effectively preventing circuit damage during operation.
Can this relay be used in toy applications?
Yes, its compact size and reliable switching capabilities make it suitable for use in various consumer electronics, including toys and automated mechanisms.
