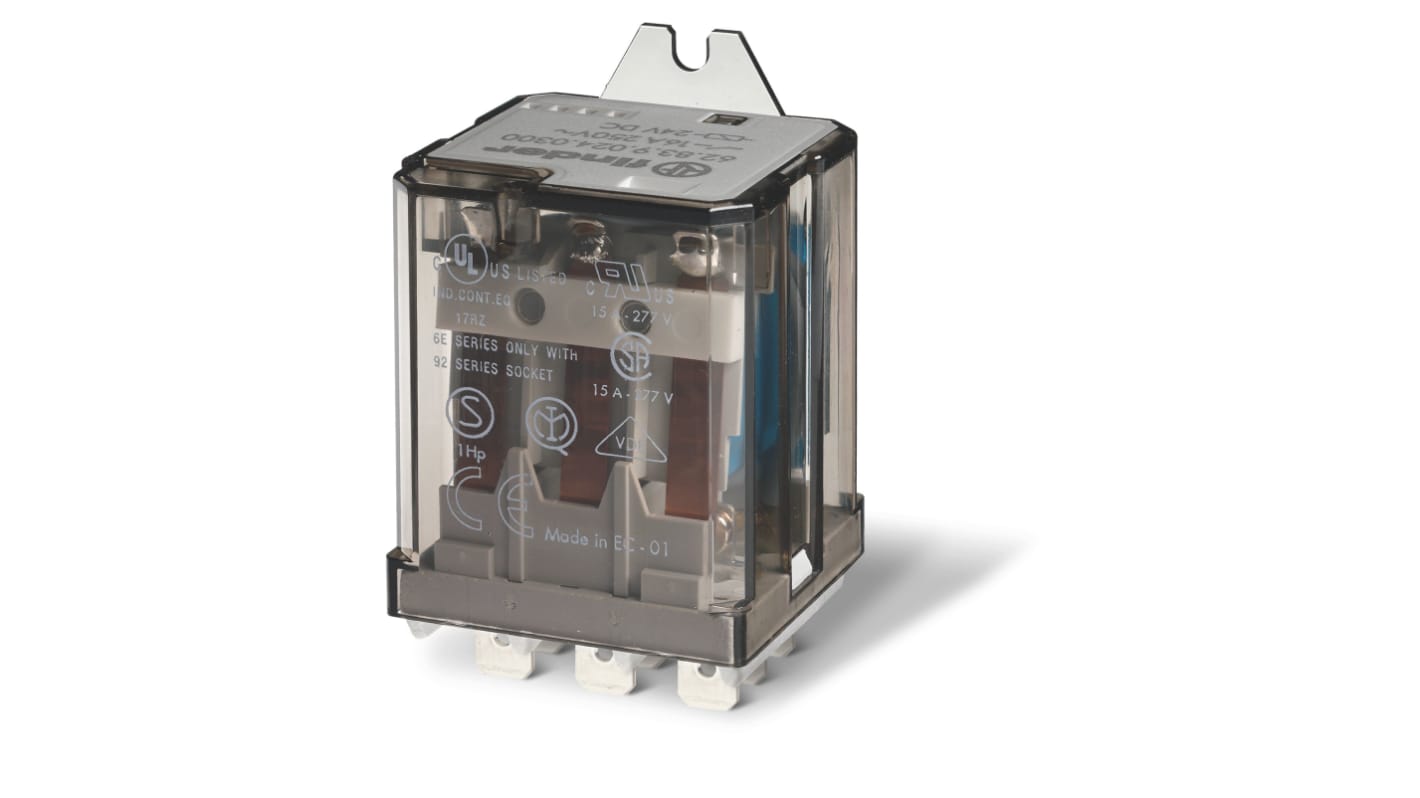

Finder Flange Relay, 12V dc Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 248-2609
- Mfr. Part No.:
- 628390120309
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£212.12
(exc. VAT)
£254.54
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £21.212 | £212.12 |
*price indicative
- RS Stock No.:
- 248-2609
- Mfr. Part No.:
- 628390120309
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 12V dc | |
| Product Type | Relay | |
| Contact Configuration | 3PDT | |
| Mount Type | Flange | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 48Ω | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CSA, EAC | |
| Length | 38.2mm | |
| Height | 68mm | |
| Width | 35.8mm | |
| Coil Power | 3W | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Product Type Relay | ||
Contact Configuration 3PDT | ||
Mount Type Flange | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 48Ω | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CSA, EAC | ||
Length 38.2mm | ||
Height 68mm | ||
Width 35.8mm | ||
Coil Power 3W | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's 62 series is plug-in mount power relay have 3 pole changeover contact, LED, mechanical indicator and test button options. This power relays used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc.
Faston 250 (6.3 x 0.8 mm) termination flange or optional mounting adaptors
3 pole changeover contacts or NO (greater than 3 mm contact gap)
LED, mechanical indicator & test button options
Cadmium free contact material options
European patent
