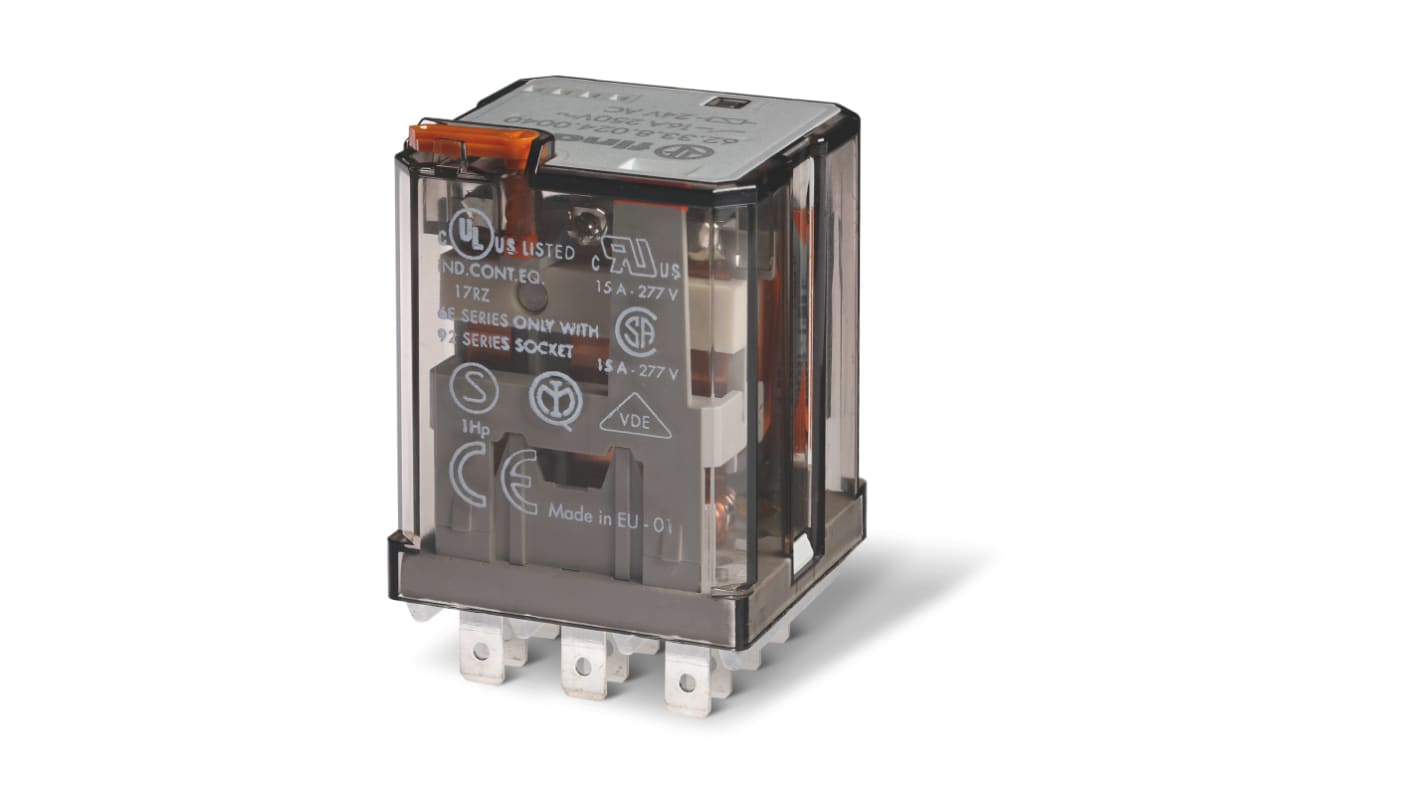

Finder Relay, 60V dc Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 248-2574
- Mfr. Part No.:
- 623390600040
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£148.32
(exc. VAT)
£177.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £14.832 | £148.32 |
*price indicative
- RS Stock No.:
- 248-2574
- Mfr. Part No.:
- 623390600040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 60V dc | |
| Product Type | Relay | |
| Contact Configuration | 3PDT | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 2.8kΩ | |
| Height | 55.3mm | |
| Standards/Approvals | CSA, EAC | |
| Length | 38.2mm | |
| Width | 35.8mm | |
| Coil Power | 1.3W | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 60V dc | ||
Product Type Relay | ||
Contact Configuration 3PDT | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 2.8kΩ | ||
Height 55.3mm | ||
Standards/Approvals CSA, EAC | ||
Length 38.2mm | ||
Width 35.8mm | ||
Coil Power 1.3W | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's 62 series is plug-in mount power relay have 3 pole changeover contact, LED, mechanical indicator and test button options. This power relays used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc.
Plug-in (92 series sockets) or faston 187 (4.8 x 0.5 mm) with optional mounting adaptors
3 pole changeover contacts or NO (greater than 3 mm contact gap)
LED, mechanical indicator & test button options
Cadmium free contact material options
European patent
