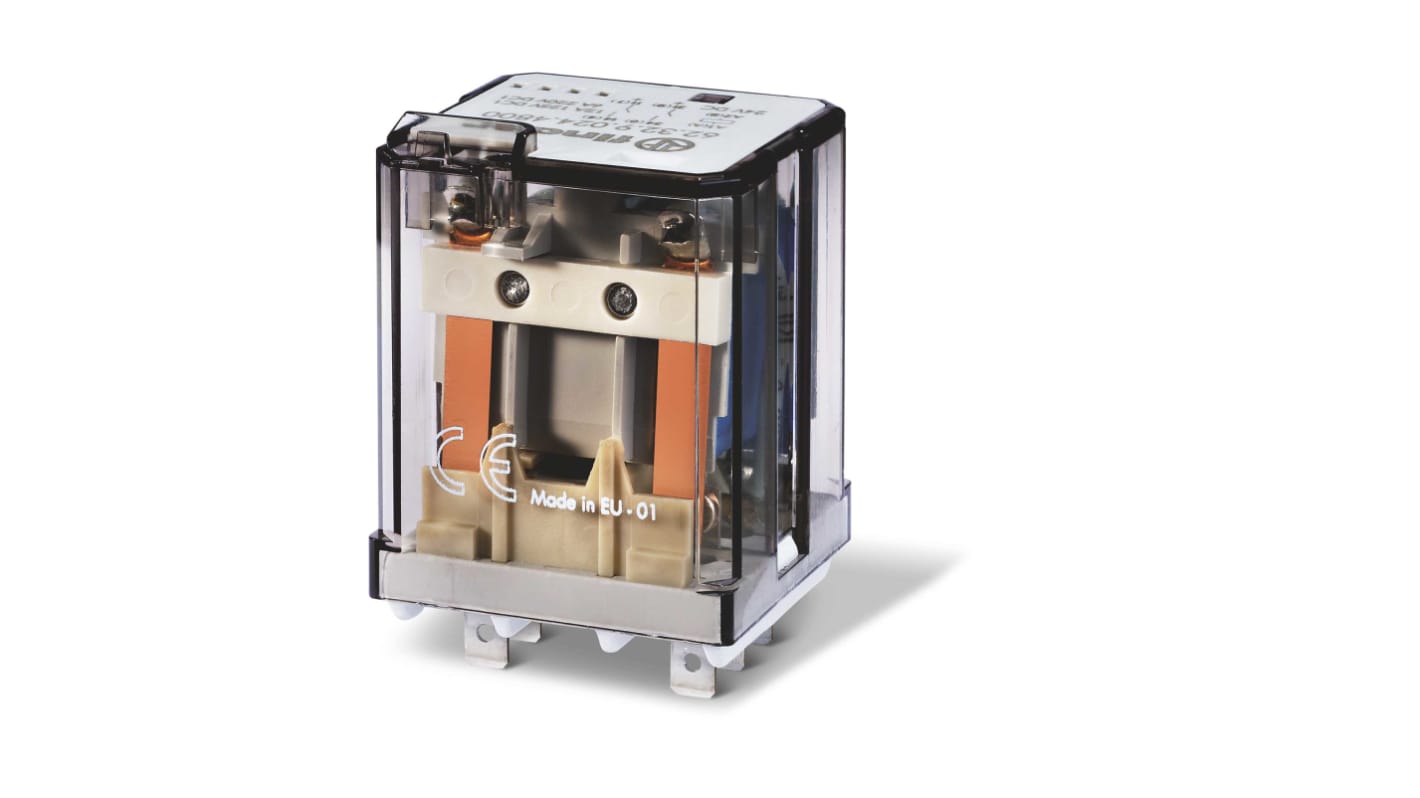

Finder Power Relay Module, 24V dc Coil, 16A Switching Current, 2 CO
- RS Stock No.:
- 248-2537
- Mfr. Part No.:
- 623290240000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£162.23
(exc. VAT)
£194.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £16.223 | £162.23 |
*price indicative
- RS Stock No.:
- 248-2537
- Mfr. Part No.:
- 623290240000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay Module | |
| Contact Configuration | 2 CO | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 445Ω | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 1.3W | |
| Standards/Approvals | CSA, EAC | |
| Height | 55.3mm | |
| Length | 38.2mm | |
| Width | 35.8mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Product Type Power Relay Module | ||
Contact Configuration 2 CO | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 445Ω | ||
Maximum Operating Temperature 70°C | ||
Coil Power 1.3W | ||
Standards/Approvals CSA, EAC | ||
Height 55.3mm | ||
Length 38.2mm | ||
Width 35.8mm | ||
Contact Material Silver Alloy Gold Plated | ||
- COO (Country of Origin):
- IT
The Finder's plug-in mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (CO) poles, while the coil voltage is 24 Vdc. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with standard AgCdO contacts
