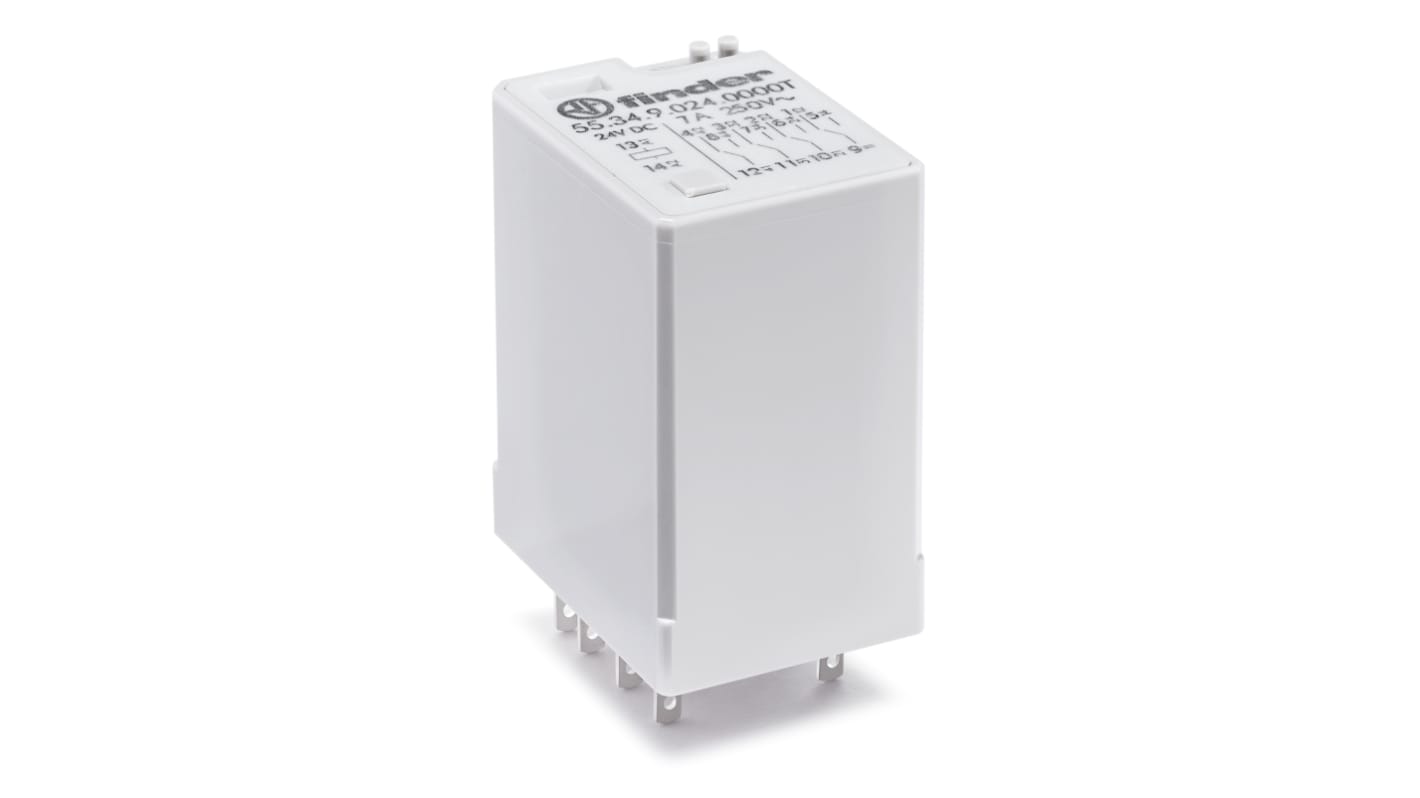

Finder Relay, 48V dc Coil, 7A Switching Current, 4 CO
- RS Stock No.:
- 248-1670
- Mfr. Part No.:
- 553490480000T
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£204.71
(exc. VAT)
£245.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £20.471 | £204.71 |
*price indicative
- RS Stock No.:
- 248-1670
- Mfr. Part No.:
- 553490480000T
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | 4 CO | |
| Series | 55 | |
| Terminal Type | Screw | |
| Switching Current | 7A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 37.2mm | |
| Length | 27.7mm | |
| Width | 20.7mm | |
| Standards/Approvals | VDE, RINA, EAC, CSA, CE, CCC | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration 4 CO | ||
Series 55 | ||
Terminal Type Screw | ||
Switching Current 7A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 37.2mm | ||
Length 27.7mm | ||
Width 20.7mm | ||
Standards/Approvals VDE, RINA, EAC, CSA, CE, CCC | ||
Contact Material Silver Nickel Alloy | ||
The Finder's 55 series of socket mounting relays for railway applications. This relay can be used in automation for blinds, grilles and shutters, shipyards, panels for electrical distribution, hoists and cranes. This relay has 4 (CO) poles, and rated for 250 Vac. This relay has standard AgNi contacts and the rated coil voltage is 48 Vdc.
Cadmium free contacts
Ambient temperature range is -40°C to 70°C
