Finder Plug In Relay, 240V ac Coil, 7A Switching Current, 4PDT
- RS Stock No.:
- 248-1636
- Mfr. Part No.:
- 553482400030
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£146.14
(exc. VAT)
£175.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 999,999,980 unit(s) shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £14.614 | £146.14 |
*price indicative
- RS Stock No.:
- 248-1636
- Mfr. Part No.:
- 553482400030
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 240V ac | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 7A | |
Number of Poles | 4 | |
Latching | No | |
Series | 55 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 15 A | |
Coil Power | 1.5W | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Isolation Coil To Contact | 4kV | |
Contact Material | Silver Alloy | |
Standards Met | cURus, EAC | |
Life | 150000 Cycles | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 240V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 7A | ||
Number of Poles 4 | ||
Latching No | ||
Series 55 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 15 A | ||
Coil Power 1.5W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 4kV | ||
Contact Material Silver Alloy | ||
Standards Met cURus, EAC | ||
Life 150000 Cycles | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT

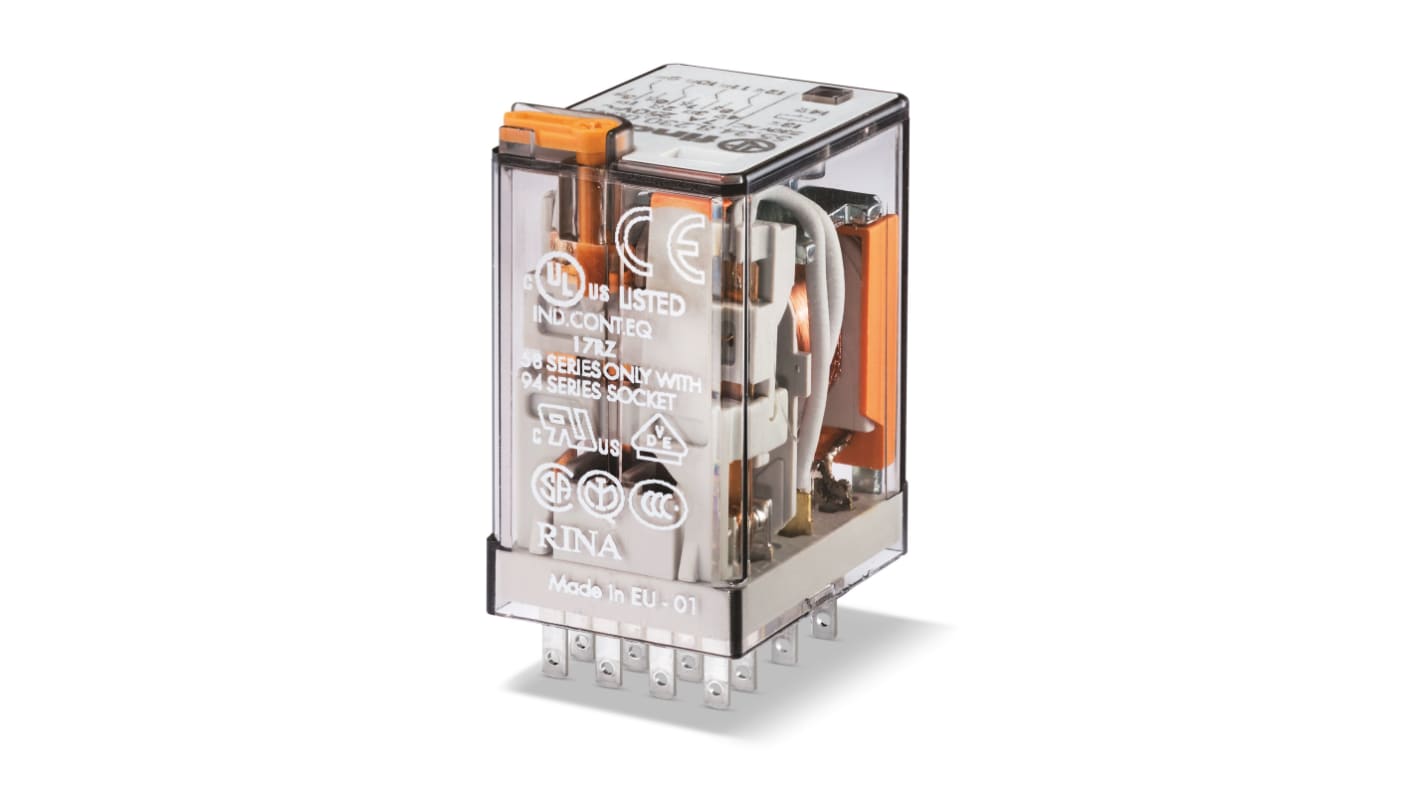

Finder Series 55 Relay, 240V AC Coil Voltage, 4PDT Contact Configuration - 553482400030
This relay is a robust 240V AC plug-in device designed for diverse industrial applications. Featuring four poles and a 4PDT configuration, it ensures efficient electrical management in automation and control systems. With a compact design, it provides a reliable solution for switching up to 15A, making it suitable for high current loads across various environments.
Features & Benefits
• Supports a maximum switching voltage of 250V AC
• Operating range of -40°C to +85°C ensures durability
• Single coil design simplifies installation in panels
• Crafted from AgNi contact material for enhanced conductivity
• 150,000 cycles of life demonstrate long-lasting performance
• Insulation between coil and contacts rated at 4 kV for safety
• Operating range of -40°C to +85°C ensures durability
• Single coil design simplifies installation in panels
• Crafted from AgNi contact material for enhanced conductivity
• 150,000 cycles of life demonstrate long-lasting performance
• Insulation between coil and contacts rated at 4 kV for safety
Applications
• Used in automation systems for blinds, grilles, and shutters
• Effective for managing electrical power in shipyards
• Ideal for controlling lighting in roads and tunnels
• Applicable in hoist and crane systems for load management
• Employed in control panels for electrical distribution and circuit breakers
• Effective for managing electrical power in shipyards
• Ideal for controlling lighting in roads and tunnels
• Applicable in hoist and crane systems for load management
• Employed in control panels for electrical distribution and circuit breakers
What switching capabilities does this relay offer for different loads?
It can handle a maximum continuous load of 15A at 240V AC and up to 220V DC, making it suitable for various operational needs.
How does the relay handle extreme temperature variations?
This relay operates efficiently across a temperature range of -40°C to +85°C, ensuring reliability even in harsh conditions.
What safety features enhance the use of this device in electrical systems?
The relay provides 4 kV insulation between the coil and contacts, helping to mitigate risks in high voltage situations and ensuring dependable functionality.
