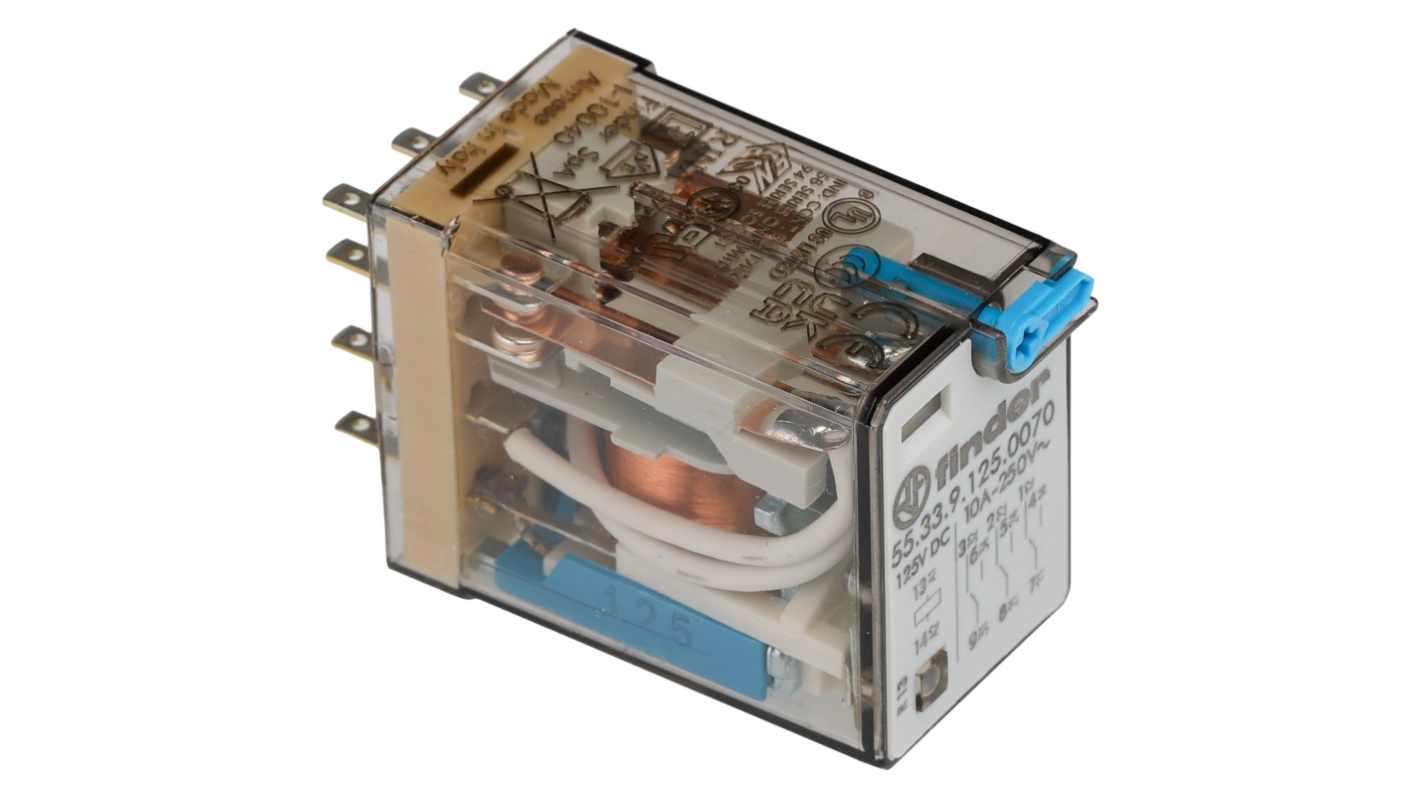

Finder Plug In Relay, 125V dc Coil, 10A Switching Current, 3PDT, 3PDT
- RS Stock No.:
- 248-1598
- Mfr. Part No.:
- 553391250070
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£182.51
(exc. VAT)
£219.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £18.251 | £182.51 |
*price indicative
- RS Stock No.:
- 248-1598
- Mfr. Part No.:
- 553391250070
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 125V dc | |
Contact Configuration | 3PDT, 3PDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 3 | |
Latching | No | |
Series | 55 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Isolation Coil To Contact | 4kV | |
Standards Met | cURus, EAC | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Life | 200000 Cycles | |
Contact Material | Silver Alloy | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 125V dc | ||
Contact Configuration 3PDT, 3PDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Latching No | ||
Series 55 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Isolation Coil To Contact 4kV | ||
Standards Met cURus, EAC | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Life 200000 Cycles | ||
Contact Material Silver Alloy | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 125V DC Coil Voltage, 10A Switching Current - 553391250070
This relay is a high-performance 125V DC coil powered component designed for various industrial applications. Manufactured by Finder, it features a robust 3PDT configuration, allowing for complex control logic. It operates within a temperature range of -40°C to +85°C, ensuring reliability in demanding environments. This plug-in relay enhances automation processes, making it suitable for multiple electrical and electronic systems.
Features & Benefits
• 125V DC coil for efficient power control with minimal losses
• 3PDT configuration facilitates versatile circuit applications
• Maximum switching current of 10A for robust operation
• AgNi contact material enhances durability and performance
• Standardised for easy integration into automation systems
• Designed for 200,000 cycles, ensuring a long service life
• 3PDT configuration facilitates versatile circuit applications
• Maximum switching current of 10A for robust operation
• AgNi contact material enhances durability and performance
• Standardised for easy integration into automation systems
• Designed for 200,000 cycles, ensuring a long service life
Applications
• Ideal for automating blinds, grilles, and shutters
• Used in control panels for industrial machinery
• Utilised in circuit breakers and electrical distribution
• Suitable for tunnel and road lighting control
• Employed in hoists and crane operations
• Used in control panels for industrial machinery
• Utilised in circuit breakers and electrical distribution
• Suitable for tunnel and road lighting control
• Employed in hoists and crane operations
How does the relay ensure reliable performance under heavy loads?
The relay features a maximum switching current of 10A, enabling operation under substantial electrical loads. Its AgNi contact material contributes to its durability, ensuring reliable performance over an extended operational life.
What protection measures are included for electrical isolation?
The relay offers an isolation of 4kV between the coil and the contacts, preventing electrical interference and ensuring safety during operation. This contributes to the overall longevity and reliability of the device.
Can it handle high voltage applications?
Yes, it can manage maximum switching voltages of 400V AC and 220V DC, making it suitable for high voltage applications while maintaining safe operational standards.
