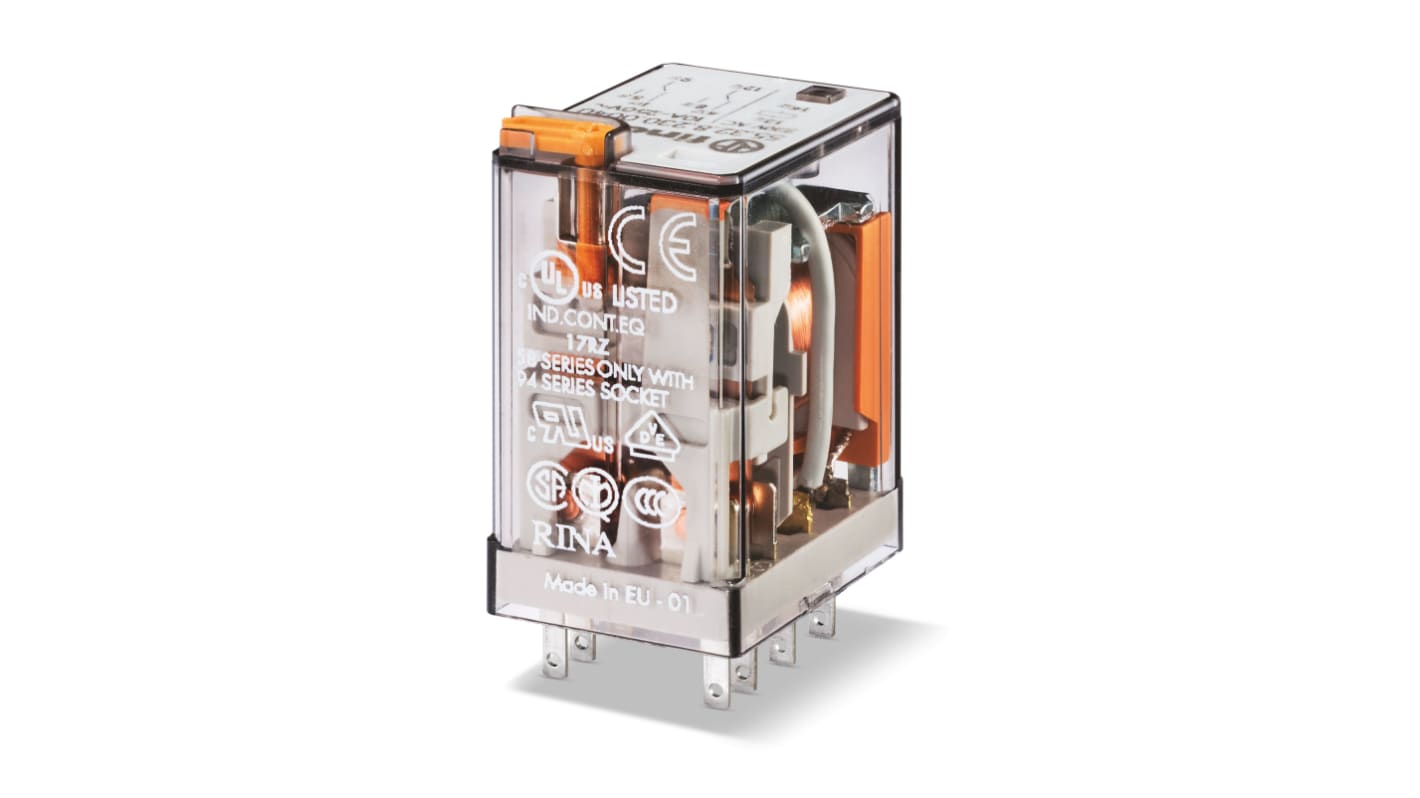

Finder Relay, 24V dc Coil, 10A Switching Current, 2 CO
- RS Stock No.:
- 248-1547
- Mfr. Part No.:
- 553290242094
- Brand:
- Finder
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 248-1547
- Mfr. Part No.:
- 553290242094
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 2 CO | |
| Series | 55 | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 85°C | |
| Length | 27.7mm | |
| Height | 37.2mm | |
| Standards/Approvals | CCC, CE, CSA, EAC, RINA, VDE | |
| Width | 20.7mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration 2 CO | ||
Series 55 | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 85°C | ||
Length 27.7mm | ||
Height 37.2mm | ||
Standards/Approvals CCC, CE, CSA, EAC, RINA, VDE | ||
Width 20.7mm | ||
Contact Material Silver Nickel Alloy | ||
The Finder's socket mounting, general purpose relays from 55 series can be used in applications like automation for blinds, grilles and shutters, shipyards, panels for electrical distribution, hoists and cranes. This relay has 2 (CO) poles, and rated for 250 Vac. The rated coil voltage is 24 Vdc.
It comes with a lockable test button, an LED, a diode (DC, polarity positive to pin A1/13) and a mechanical indicator
Cadmium free contacts
