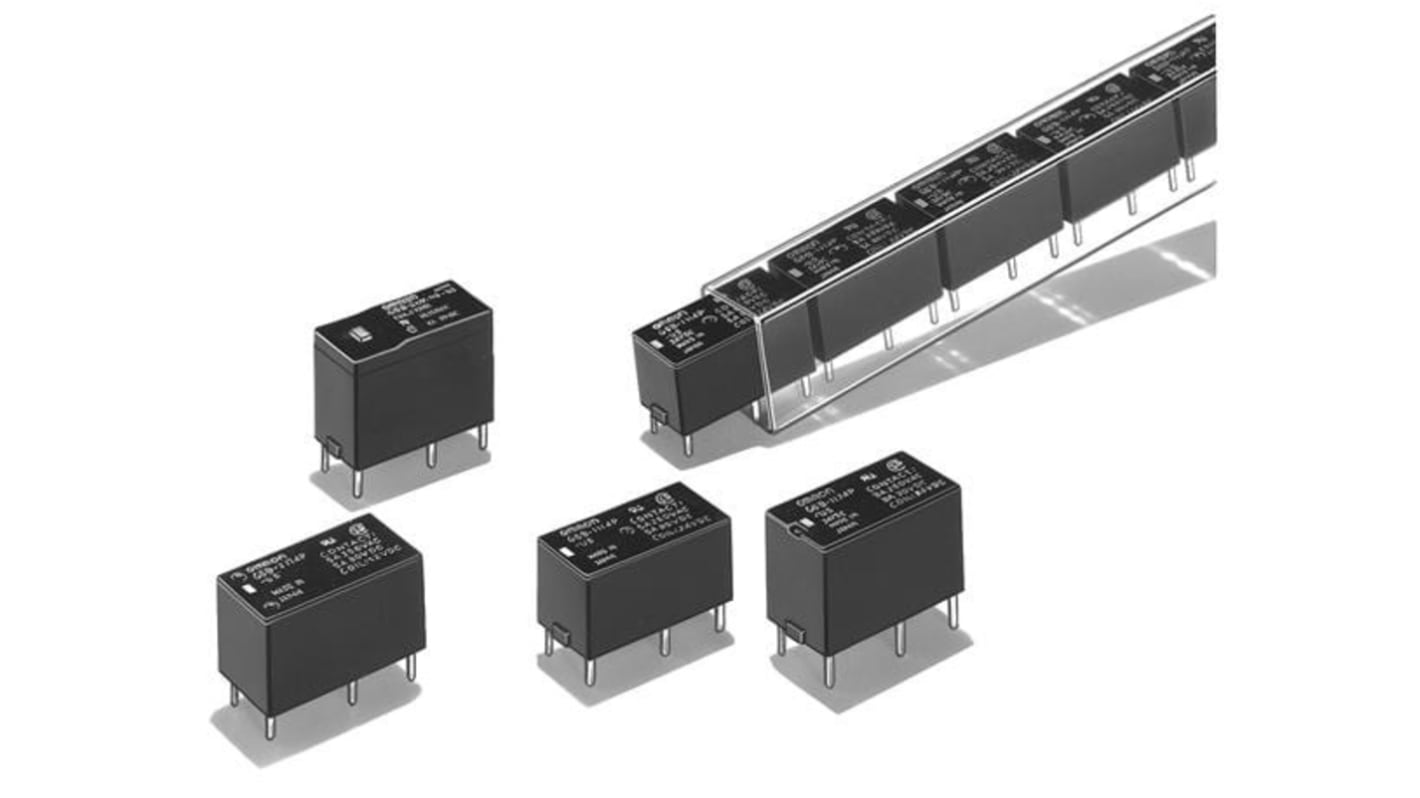

Omron PCB Relay, 5V dc Coil, 5A Switching Current, DPST
- RS Stock No.:
- 243-6593
- Mfr. Part No.:
- G6B-2214P-US DC5
- Brand:
- Omron
Bulk discount available
Subtotal (1 tube of 100 units)*
£322.40
(exc. VAT)
£386.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 100 unit(s) shipping from 05 June 2026
- Plus 100 unit(s) shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 100 | £3.224 | £322.40 |
| 200 - 400 | £3.111 | £311.10 |
| 500 + | £3.046 | £304.60 |
*price indicative
- RS Stock No.:
- 243-6593
- Mfr. Part No.:
- G6B-2214P-US DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Product Type | Relay | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | G6B | |
| Terminal Type | Solder | |
| Switching Current | 5A | |
| Switching DC Voltage | 125V dc | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 380V ac | |
| Switching Power | 1.25kVA | |
| Coil Resistance | 83.3Ω | |
| Maximum Operating Temperature | 70°C | |
| Length | 20mm | |
| Height | 11mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 200mW | |
| Width | 11mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 30mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Product Type Relay | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series G6B | ||
Terminal Type Solder | ||
Switching Current 5A | ||
Switching DC Voltage 125V dc | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 380V ac | ||
Switching Power 1.25kVA | ||
Coil Resistance 83.3Ω | ||
Maximum Operating Temperature 70°C | ||
Length 20mm | ||
Height 11mm | ||
Standards/Approvals RoHS | ||
Coil Power 200mW | ||
Width 11mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 30mΩ | ||
The Omron G6B series is a power relays have two poles, high capacity and high dielectric strength miniature relay comes with fully sealed construction. The coil voltage 5 Vdc, coil current is 60 mA, and coil resistance is 83.3 ohms.
High insulation with dielectric strength of 3,000VAC between coil and contacts
Contacts are made from Silver alloy (Cadmium free)
