Aratas PCB Relay, 24V ac Coil, 8A Switching Current, SPDT
- RS Stock No.:
- 243-6559
- Mfr. Part No.:
- G2R-1 AC24
- Brand:
- Aratas
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£3.61
(exc. VAT)
£4.33
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.61 |
| 10 - 24 | £3.45 |
| 25 - 49 | £3.37 |
| 50 + | £3.22 |
*price indicative
- RS Stock No.:
- 243-6559
- Mfr. Part No.:
- G2R-1 AC24
- Brand:
- Aratas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aratas | |
| Coil Voltage | 24V ac | |
| Product Type | Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G2R | |
| Terminal Type | Screw | |
| Switching Current | 8A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 60V dc | |
| Coil Resistance | 260Ω | |
| Maximum Operating Temperature | 70°C | |
| Height | 15mm | |
| Length | 50mm | |
| Width | 10mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 900mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Aratas | ||
Coil Voltage 24V ac | ||
Product Type Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G2R | ||
Terminal Type Screw | ||
Switching Current 8A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 60V dc | ||
Coil Resistance 260Ω | ||
Maximum Operating Temperature 70°C | ||
Height 15mm | ||
Length 50mm | ||
Width 10mm | ||
Standards/Approvals RoHS | ||
Coil Power 900mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- ID

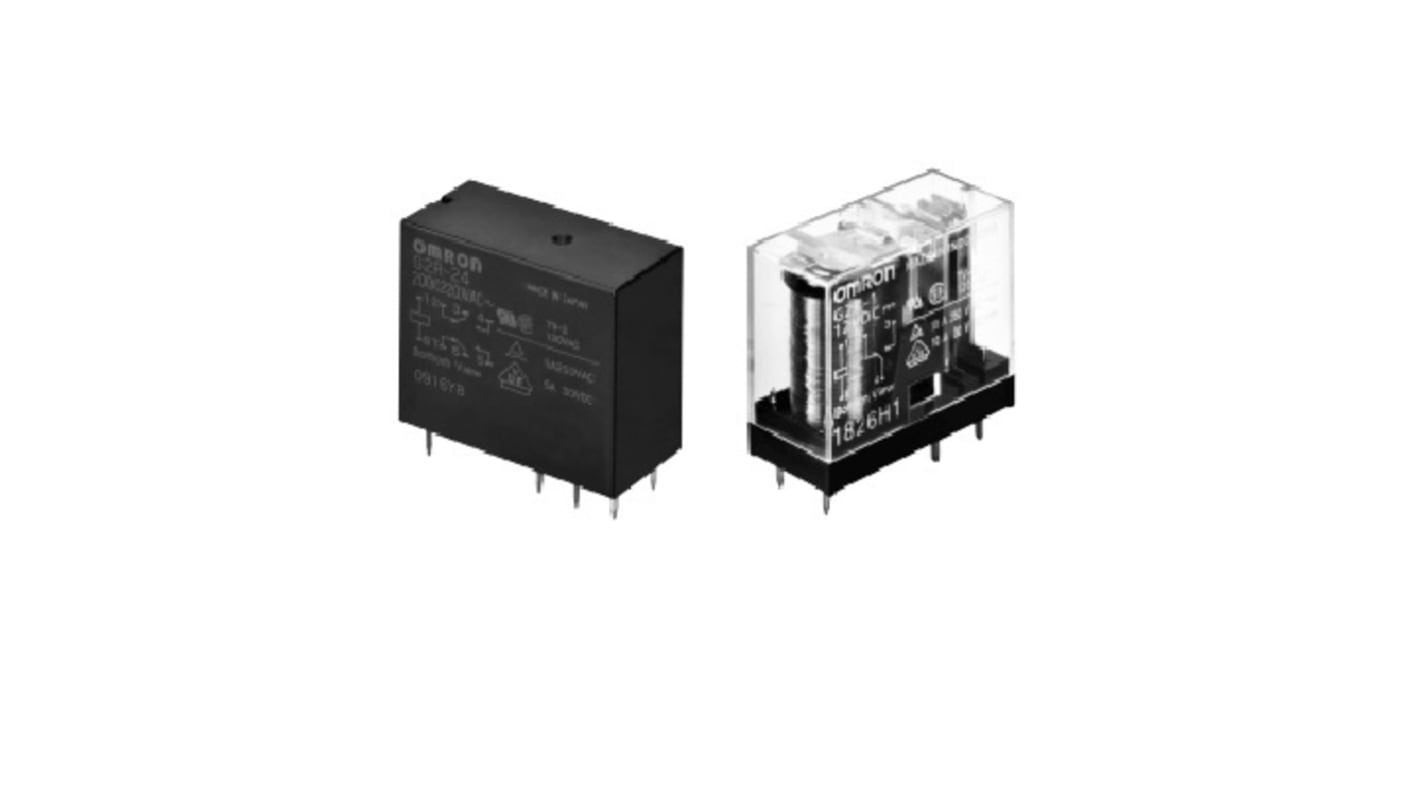

The Omron G2R series is general purpose power relays have single pole or two poles. The coil voltage is 24 Vac, coil resistance is 260 ohms and coil current 46.5 mA.
Contact form is SPDT (1 form C)
Power consumption is 900 mVA
Contact material is Silver Cadmium Oxide (AgCdO)
