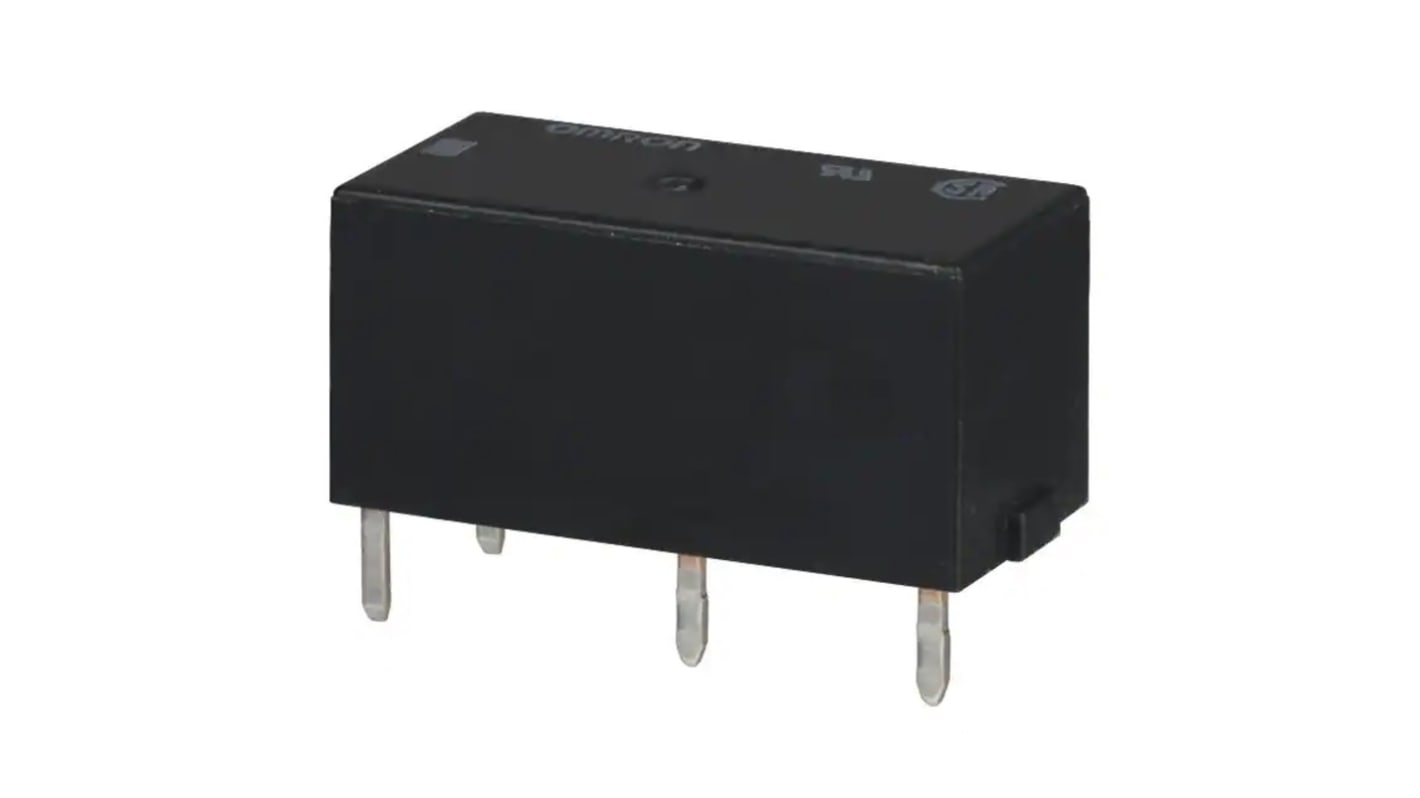

Omron PCB Mount Non-Latching Relay, 12V dc Coil, 5A Switching Current, SPST, SPST
- RS Stock No.:
- 233-4151
- Mfr. Part No.:
- G6B-2114P-US DC12
- Brand:
- Omron
139 In stock - FREE next working day delivery available
Added
Price Each
£4.16
(exc. VAT)
£4.99
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £4.16 |
| 10 - 24 | £4.01 |
| 25 - 49 | £3.90 |
| 50 + | £3.74 |
- RS Stock No.:
- 233-4151
- Mfr. Part No.:
- G6B-2114P-US DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Omron G6B series is 1 pole high capacity and high dielectric strength miniature relay with fully sealed construction. It has high insulation with dielectric strength of 3,000 VAC between coil and contacts. It has Ag-alloy contact material.
Ambient operating temperature from -25°C to 70°C
30 mO maximum contact resistance
Single-side stable model
Fully sealed enclosure
30 mO maximum contact resistance
Single-side stable model
Fully sealed enclosure
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST, SPST |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Coil Resistance | 720 Ω |
| Coil Power | 200mW |
| Isolation Coil To Contact | 3kV ac |
| Series | G6B |
| Number of Coils | Single |
