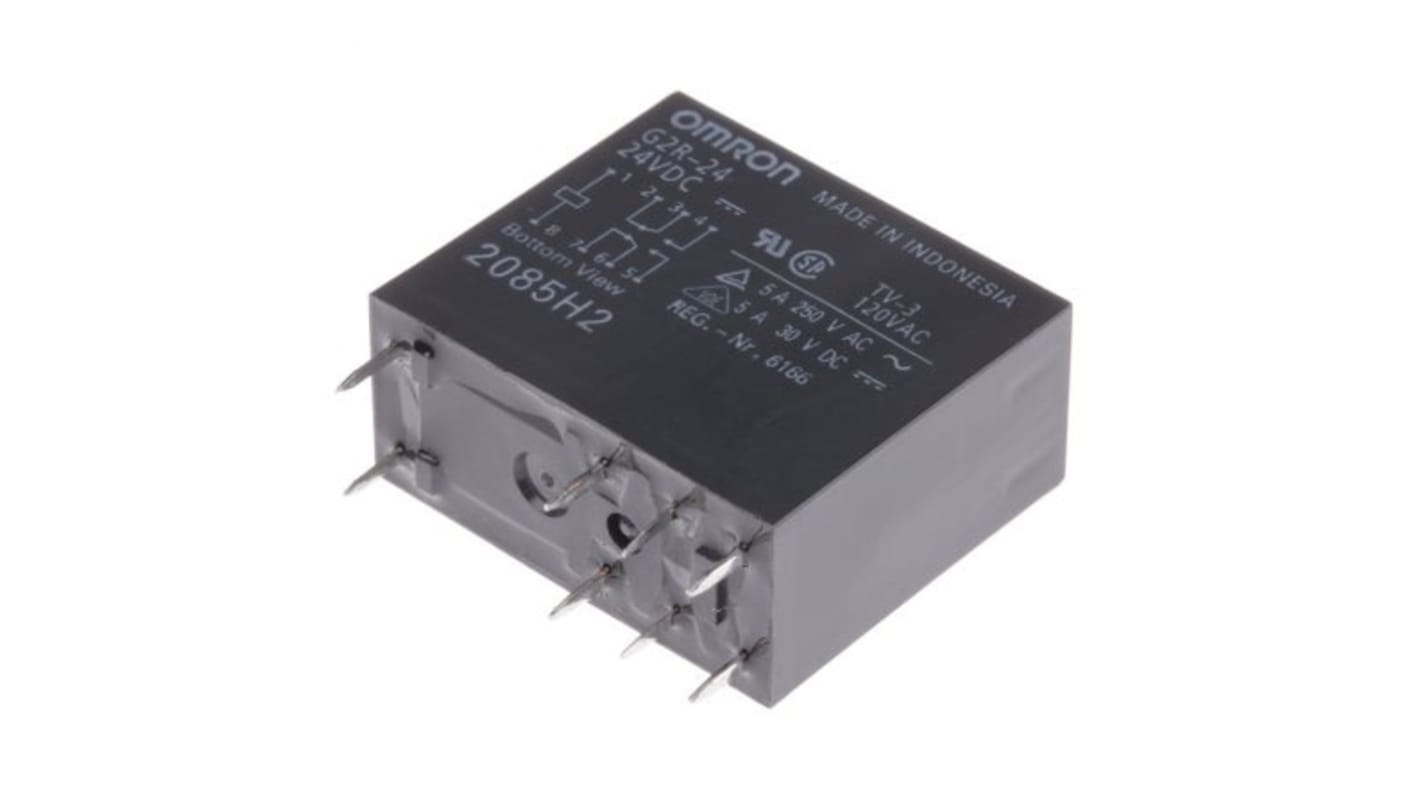

Omron PCB Non-Latching Relay, 24V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 233-4137
- Mfr. Part No.:
- G2R-24 DC24
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.84
(exc. VAT)
£5.81
(inc. VAT)
- RS Stock No.:
- 233-4137
- Mfr. Part No.:
- G2R-24 DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | G2R | |
| Terminal Type | Plug-In | |
| Switching Current | 3A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 380V ac | |
| Switching Power | 150W | |
| Switching DC Voltage | 125V dc | |
| Coil Resistance | 1.1kΩ | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 530mW | |
| Height | 35.5mm | |
| Standards/Approvals | RoHS | |
| Width | 13mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Non-Latching Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series G2R | ||
Terminal Type Plug-In | ||
Switching Current 3A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 380V ac | ||
Switching Power 150W | ||
Switching DC Voltage 125V dc | ||
Coil Resistance 1.1kΩ | ||
Maximum Operating Temperature 70°C | ||
Coil Power 530mW | ||
Height 35.5mm | ||
Standards/Approvals RoHS | ||
Width 13mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
The Omron G2R series general purpose power relay which has double-pole. It has safety-oriented design with dielectric strength of 5,000 V between coil and contacts, and surge resistance of 10,000 V.
Single-side stable model
Fully sealed enclosure
RoHS compliant
