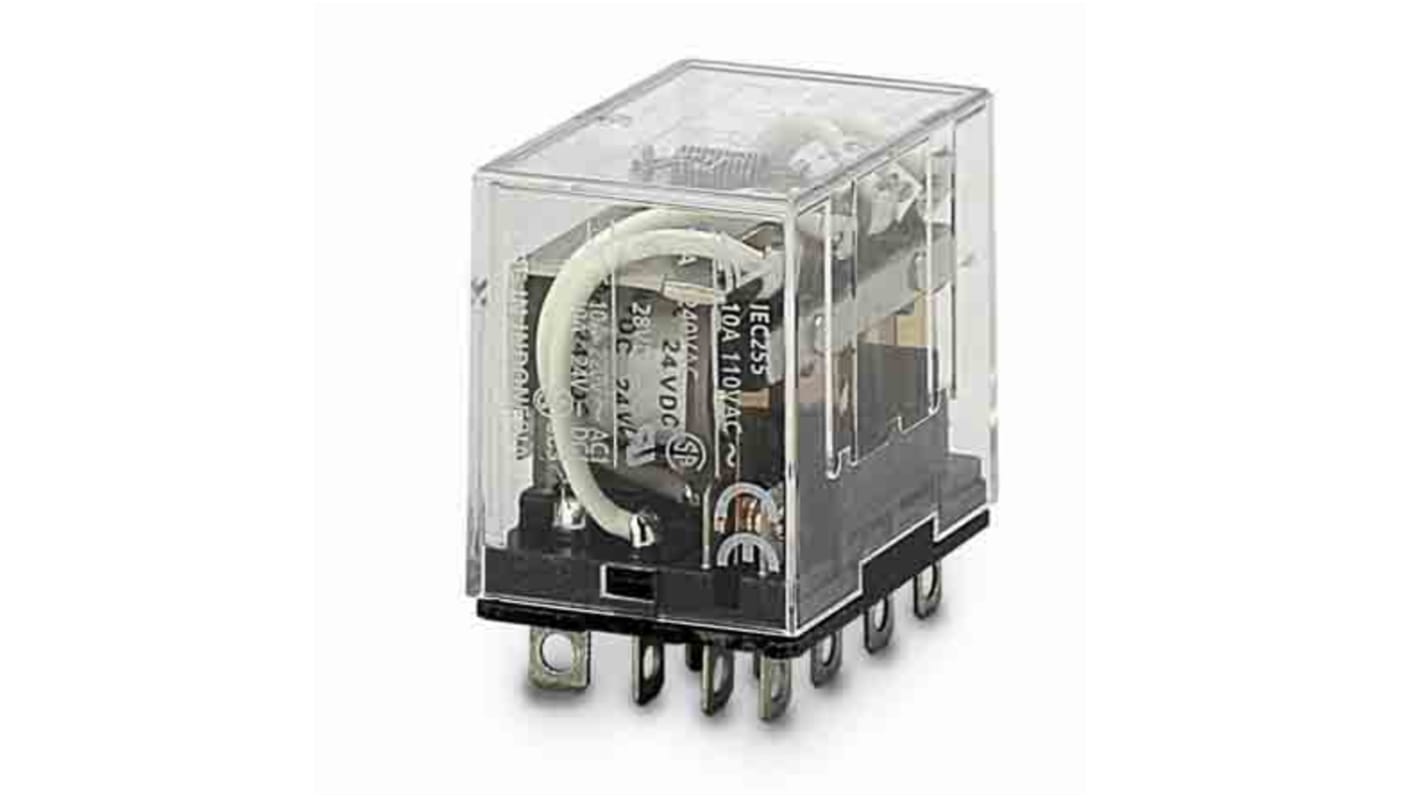

Omron Plug In Non-Latching Relay, 24V dc Coil, 10A Switching Current, 4PDT

View all Power Relays

Subtotal (1 unit)*

£28.48

(exc. VAT)

£34.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 33 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£28.48

*price indicative

RS Stock No.:
215-7277
Distrelec Article No.:
301-37-303
Mfr. Part No.:
LY4I4N 24VDC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

4PDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

4

Series

LY

Terminal Type

Plug In

Maximum Switching Voltage AC

110V

Maximum Switching Voltage DC

24V

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

41.5mm

Coil Resistance

350 Ω

Coil Power

1.5W

Life

200000 Operations

Depth

28mm

Standards Met

CE, CSA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+40°C

Height

42.4mm

Contact Material

Ag Alloy

Omron Series LY Non-Latching Relay, 24V DC Coil Voltage, 10A Switching Current - LY4I4N DC24


This non-latching relay is a high-performance component designed for various electrical applications. It features a compact plug-in design, enabling easy integration into existing systems. With a coil voltage of 24V DC and a switching current capability of 10A, this 4PDT relay is suitable for reliable performance in demanding environments.

Features & Benefits


• Compact plug-in design simplifies installations and replacements
• Supports a maximum switching voltage of 110V AC
• Utilises an arc barrier for effective arc interruption
• Features a built-in diode for coil surge absorption
• Endurance rating of 200,000 operations ensures durability

Applications


• Utilised in automation systems requiring efficient switching
• Suitable for controlling motors and lights in electrical installations
• Effectively deployed in industrial control
• Ideal for demanding precise switching and reliability

What is the coil resistance of this relay, and why is it significant?


The coil resistance is 350 ohms, which is vital for calculating the current draw when the relay is energised. Understanding this value helps in ensuring compatibility with the power supply and prevents overheating during operation.

Can this relay handle inductive loads, and what are its current ratings?


Yes, it can handle inductive loads with a maximum switching current of 10A for both AC and DC applications. This capability allows it to be used effectively in circuits involving motors and other electromagnetic devices.

What ambient conditions can this relay operate in?


This relay operates efficiently between -25°C and +40°C, making it suitable for various industrial environments where temperature fluctuations may occur.
