Phoenix Contact DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 207-3338
- Mfr. Part No.:
- 2907054
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 207-3338
- Mfr. Part No.:
- 2907054
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 4PDT | |
| Mount Type | DIN Rail | |
| Series | REL-IR4/24DC/4X21 | |
| Terminal Type | Plug-In | |
| Switching Current | 6A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 250V dc | |
| Switching Power | 0.12W | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 910mW | |
| Standards/Approvals | IEC 61810, CSA/UL Recognised/cUL Recognised, IEC 60664 | |
| Width | 21.2mm | |
| Length | 35.6mm | |
| Height | 27.5mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mount Type DIN Rail | ||
Series REL-IR4/24DC/4X21 | ||
Terminal Type Plug-In | ||
Switching Current 6A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 250V dc | ||
Switching Power 0.12W | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Coil Power 910mW | ||
Standards/Approvals IEC 61810, CSA/UL Recognised/cUL Recognised, IEC 60664 | ||
Width 21.2mm | ||
Length 35.6mm | ||
Height 27.5mm | ||
Contact Material Silver Nickel Alloy | ||

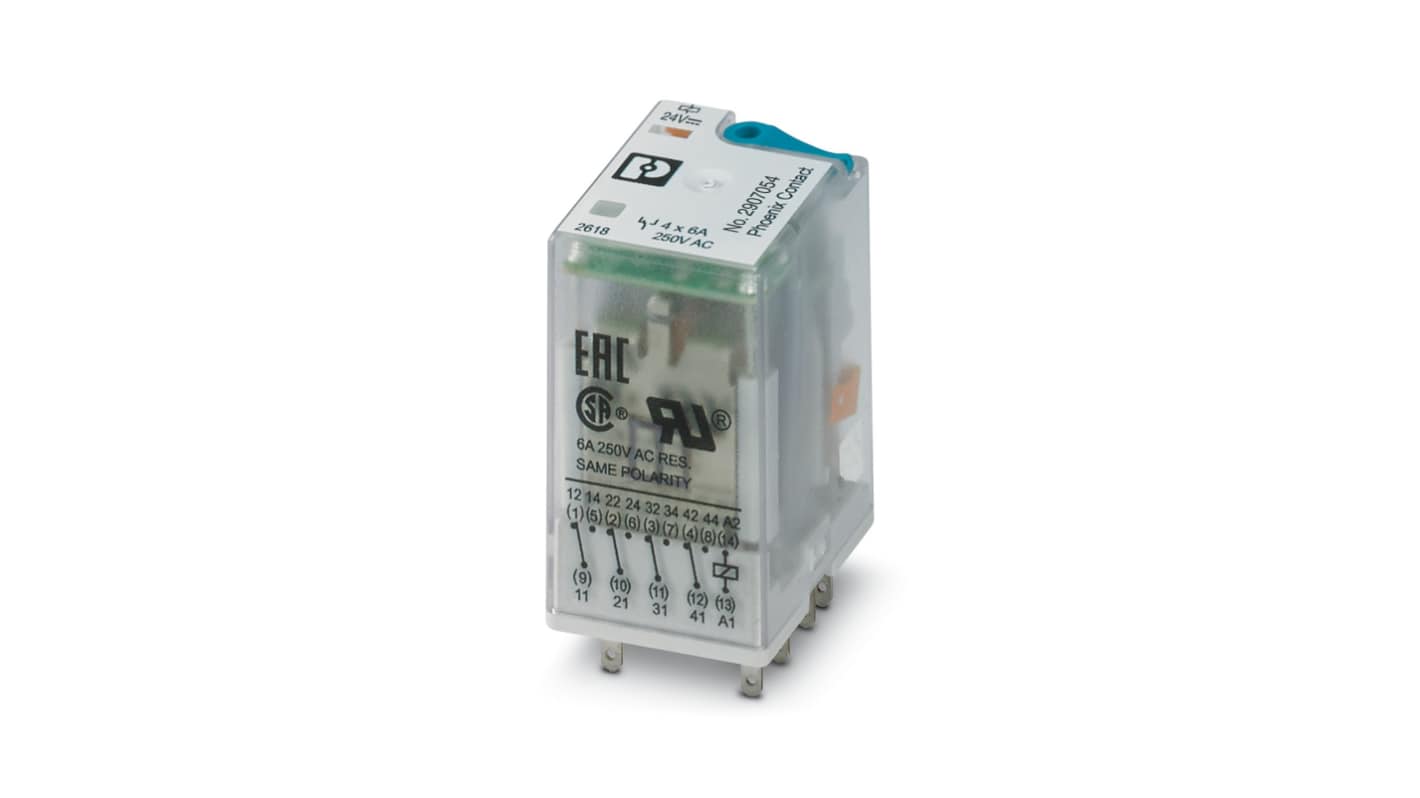

The Phoenix Contact Plug-in industrial relay with power contacts. It has 4 changeover contacts and test key.
Mechanical switch position indicator
polarity: bipolar
Input voltage: 24 V DC
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
