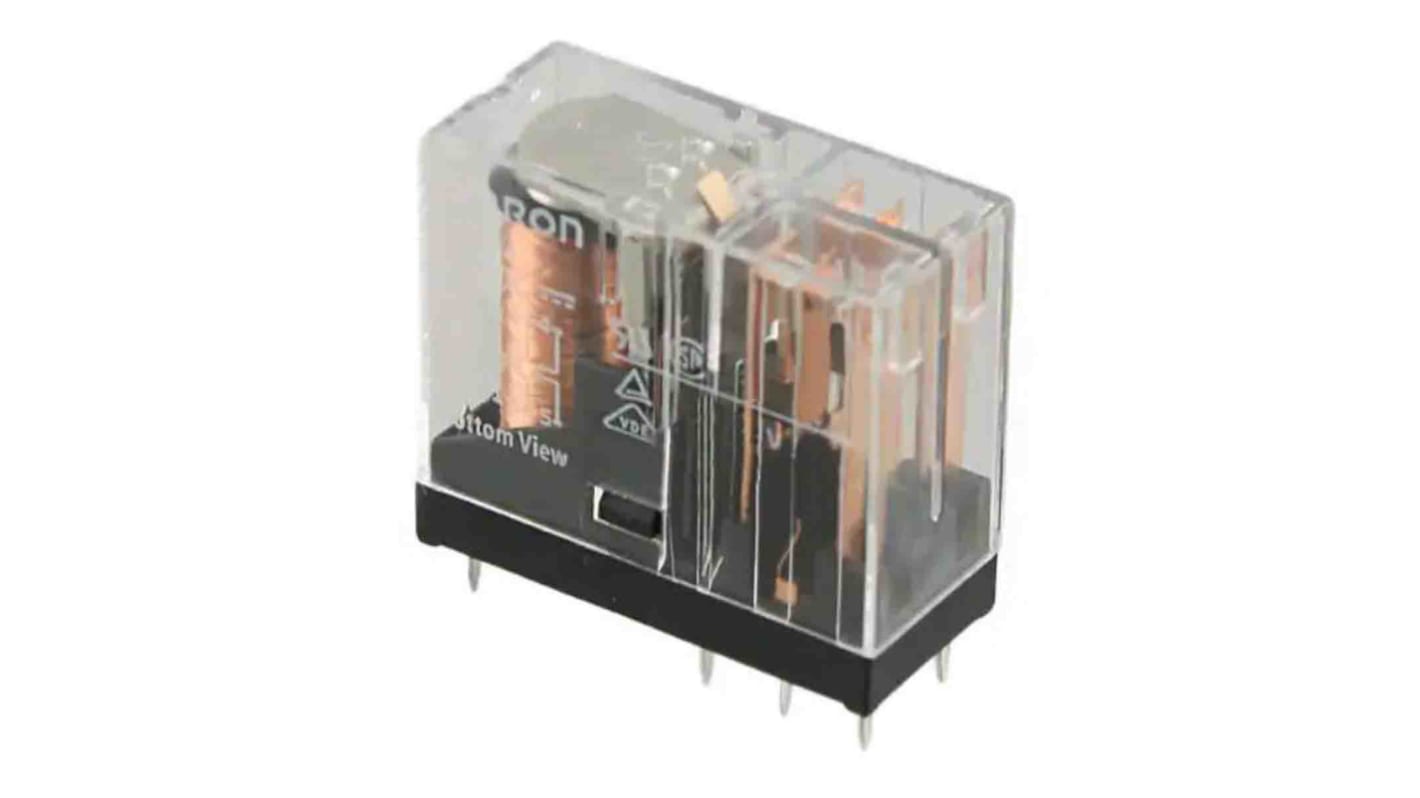

Omron PCB Power Relay, 110V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 205-1881
- Distrelec Article No.:
- 110-72-261
- Mfr. Part No.:
- G2R-2 DC110
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£5.13
(exc. VAT)
£6.16
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 37 unit(s) shipping from 04 May 2026
- Plus 57 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.13 |
| 10 - 24 | £4.40 |
| 25 - 49 | £3.85 |
| 50 + | £3.43 |
*price indicative
- RS Stock No.:
- 205-1881
- Distrelec Article No.:
- 110-72-261
- Mfr. Part No.:
- G2R-2 DC110
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 110V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | G2R | |
| Terminal Type | PCB Pin | |
| Switching Current | 5A | |
| Switching AC Voltage | 380V ac | |
| Switching DC Voltage | 125V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 22.9kΩ | |
| Height | 29.5mm | |
| Width | 13mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 530mW | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 110V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series G2R | ||
Terminal Type PCB Pin | ||
Switching Current 5A | ||
Switching AC Voltage 380V ac | ||
Switching DC Voltage 125V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 22.9kΩ | ||
Height 29.5mm | ||
Width 13mm | ||
Standards/Approvals RoHS | ||
Coil Power 530mW | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
The Omron Electronic Components PCB Power Relay with 1 general purpose power relays of single pole 10A and double pole 5 A. AC and DC types are both available for operational coils.
50mO maximum contact resistance
-40°C to 70°C operating temperature
100000 operations minimum electrical durability
8mm clearance between coil and contacts
