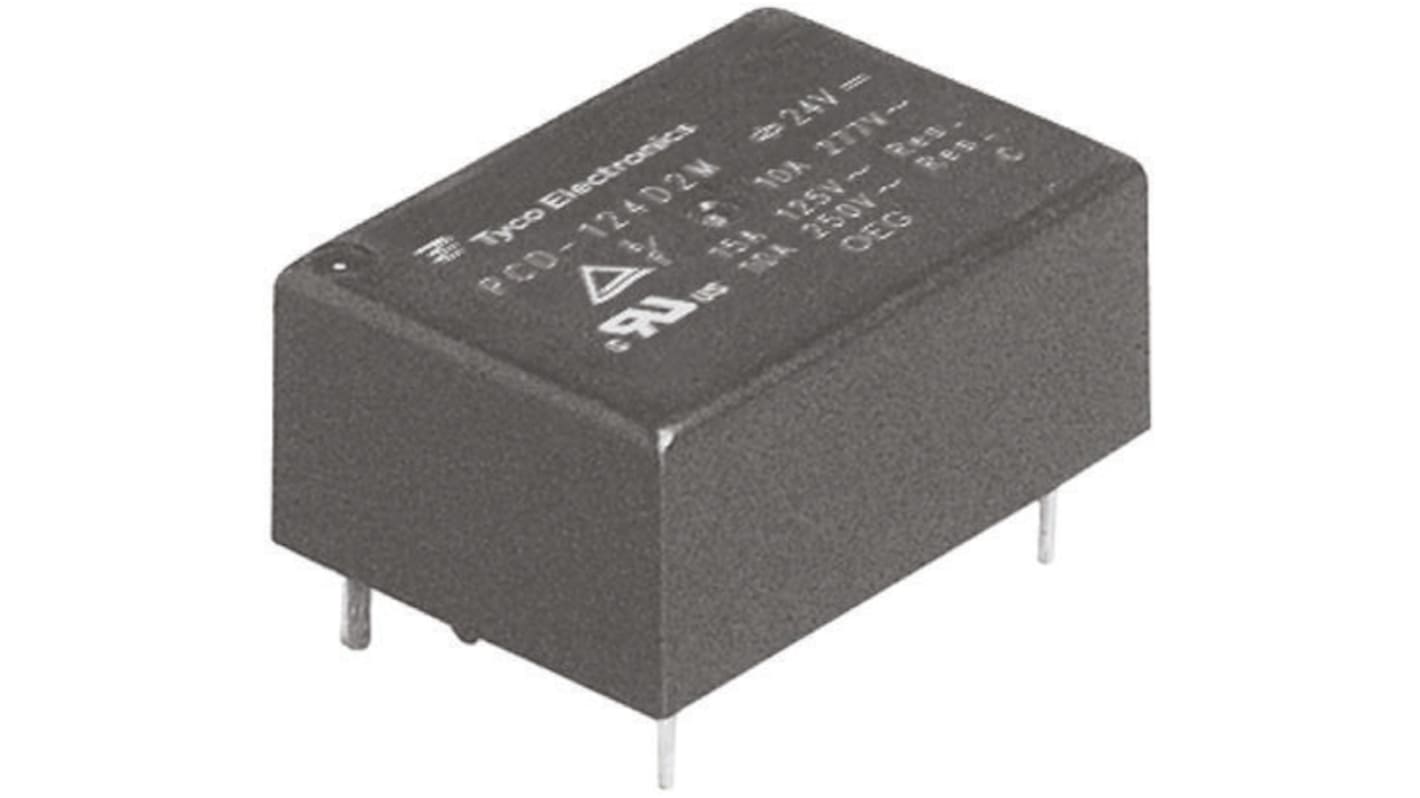

3 to 10A rating Small size Creepage spacings of 6.5mm between coil and contacts 4,000Vrms coil to contact dielectric strength Applications Appliances, HVAC, industrial control
Attribute
Value
Coil Voltage
5V dc
Contact Configuration
SPST
Mounting Type
PCB Mount
Switching Current
10A
Number of Poles
1
Latching
No
Terminal Type
Through Hole
Maximum Switching Voltage AC
277V
Maximum Switching Voltage DC
30V dc
Length
18.2mm
Coil Resistance
55.6Ω
Coil Power
450mW
Isolation Coil To Contact
4kVrms
Height
14.7mm
Series
OEG
Depth
10.2mm
