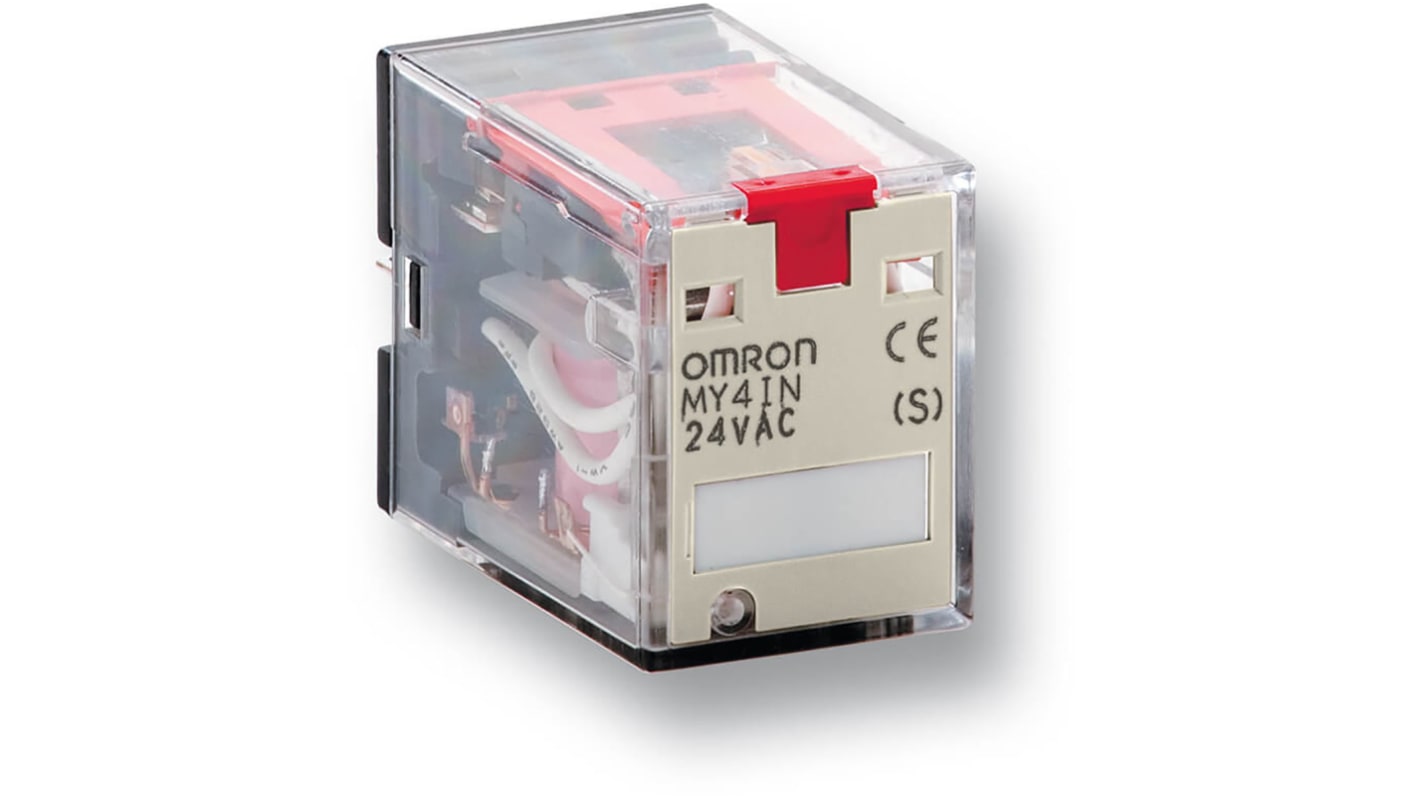

Omron Plug In Power Relay, 110 → 120V ac Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 186-4175
- Mfr. Part No.:
- MY4N-GS AC110/120
- Brand:
- Omron
Subtotal (1 unit)*
£8.68
(exc. VAT)
£10.42
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £8.68 |
| 5 - 9 | £8.25 |
| 10 + | £8.07 |
*price indicative
- RS Stock No.:
- 186-4175
- Mfr. Part No.:
- MY4N-GS AC110/120
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 110 → 120V ac | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 3A | |
| Number of Poles | 4 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 220V dc | |
| Maximum Switching Current AC | 3 A | |
| Maximum Switching Current DC | 3 A | |
| Length | 28mm | |
| Coil Resistance | 4430Ω | |
| Depth | 21.5mm | |
| Isolation Coil To Contact | 2kV ac | |
| Maximum Operating Temperature | +70°C | |
| Series | MY | |
| Minimum Operating Temperature | -40°C | |
| Height | 36mm | |
| Life | 50000000 cycles | |
| Maximum Switching Power AC | 660VA | |
| Maximum Switching Power DC | 72 W | |
| Application | General Purpose | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 110 → 120V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 3A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 3 A | ||
Maximum Switching Current DC 3 A | ||
Length 28mm | ||
Coil Resistance 4430Ω | ||
Depth 21.5mm | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Operating Temperature +70°C | ||
Series MY | ||
Minimum Operating Temperature -40°C | ||
Height 36mm | ||
Life 50000000 cycles | ||
Maximum Switching Power AC 660VA | ||
Maximum Switching Power DC 72 W | ||
Application General Purpose | ||
Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).
The Printing on the coil tape indicates the operating coil specification
Mechanical operation indicators are a standard feature on all models
Mechanical indicators are a standard feature on all models to easily check the contact status.
MY-GS is suitable for application which need a reliable relay, the standard model is frequently seen in packaging machine for the food and beverage industry
