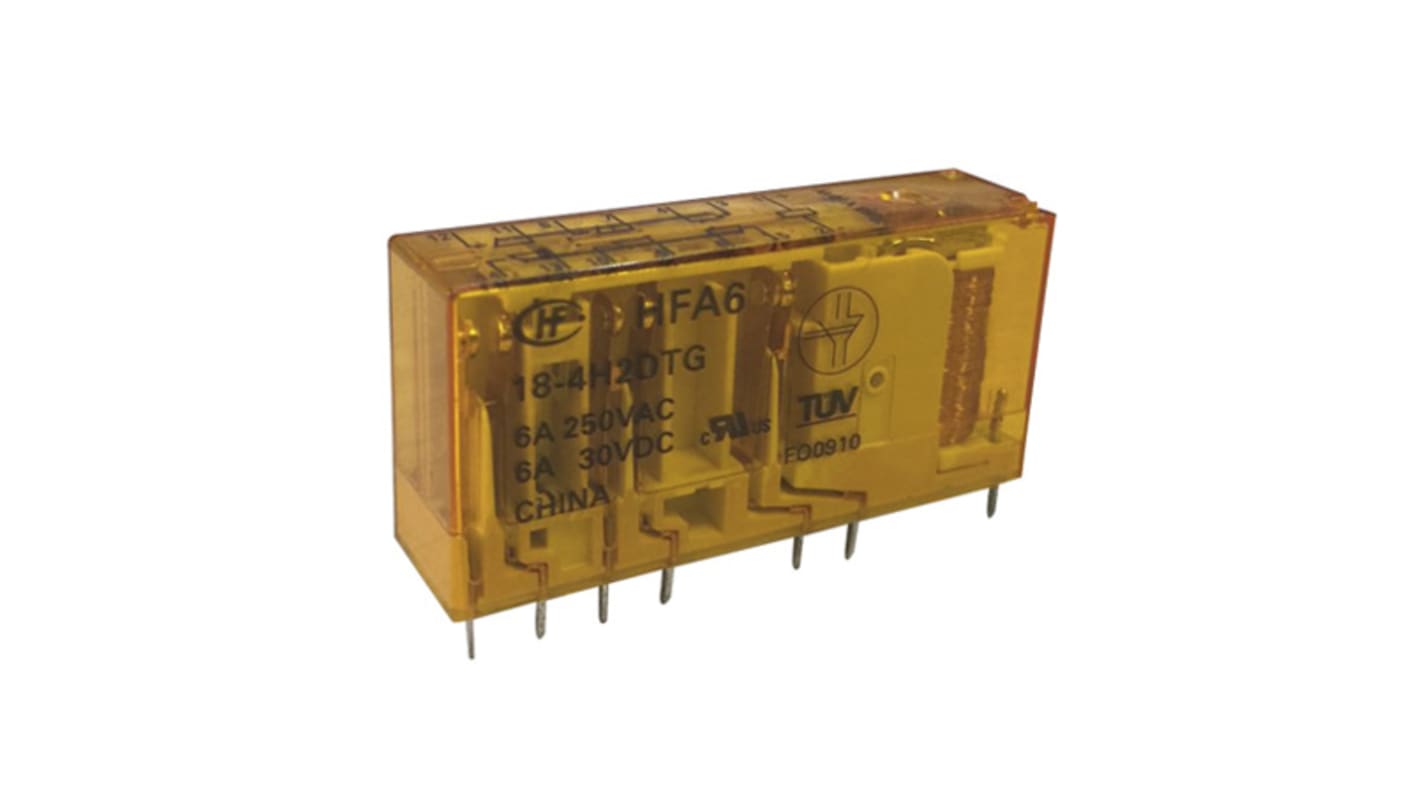

Hongfa Europe GMBH Surface Mount Force Guided Relay, 12V dc Coil Voltage, 1 Pole

View all Power Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
176-2931
Mfr. Part No.:
HFA6/12-4H2DTGF
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Mounting Type

Surface Mount

Number of Poles

1

Coil Resistance

288 Ω

Switching Current

6A

Maximum Switching Current AC

6 A

Coil Power

500mW

Maximum Switching Current DC

6 A

Maximum Switching Voltage DC

30V

Maximum Switching Voltage AC

400V

Isolation Coil To Contact

10kV

Length

50mm

Maximum Operating Temperature

+85°C

Contact Material

Silver Alloy

Depth

13mm

Maximum Switching Power DC

180 W

Maximum Switching Power AC

1.5 kVA

Life

1 x 10^7 cycles

Height

24mm

Minimum Operating Temperature

-40°C

Series

HFA6

COO (Country of Origin):
CN
Multi contact arrangements: 5NO+1NC,
4NO+2NC, 3NO+3NC
Forcibly guided contacts
6A switching capability
Low input power: 500mW
High insulation capability: 10kV surge voltage between input and output

Environmental friendly product
Outline Dimensions: (50.0 x 13.0 x 24.0) mm
