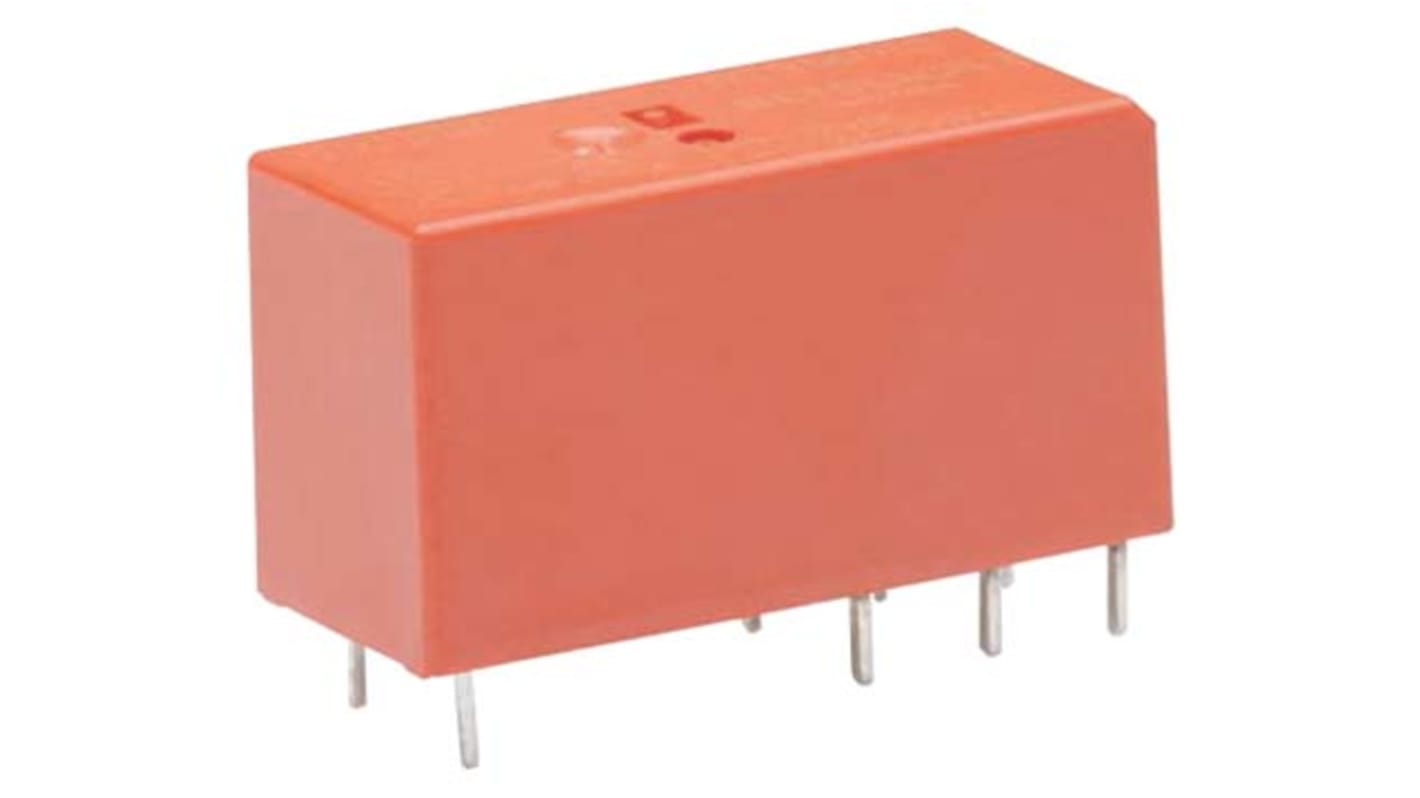

WAGO DIN Rail Power Relay, 24V dc Coil, 2 x 8A Switching Current, DPDT
- RS Stock No.:
- 135-7383
- Mfr. Part No.:
- 788-156
- Brand:
- WAGO
Subtotal (1 unit)*
£3.54
(exc. VAT)
£4.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 58 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.54 |
*price indicative
- RS Stock No.:
- 135-7383
- Mfr. Part No.:
- 788-156
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | DIN Rail | |
| Switching Current | 2 x 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Depth | 12.7mm | |
| Life | 30000000 (Mechanical) operations | |
| Isolation Coil To Contact | 5kVrms | |
| Maximum Operating Temperature | +85°C | |
| Height | 15mm | |
| Standards Met | UL 508 | |
| Maximum Switching Power AC | 4 kVA | |
| Application | Electronic To Electromechanical | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type DIN Rail | ||
Switching Current 2 x 8A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Depth 12.7mm | ||
Life 30000000 (Mechanical) operations | ||
Isolation Coil To Contact 5kVrms | ||
Maximum Operating Temperature +85°C | ||
Height 15mm | ||
Standards Met UL 508 | ||
Maximum Switching Power AC 4 kVA | ||
Application Electronic To Electromechanical | ||
Wago 788 Series Miniature Relays
Wago 788 series miniature relays are general purpose relays complete that offer superior reliability combined with time-saving standard features.
Features and Benefits
2 Changeover Contacts
Max. continuous current: 8A
15mm Width
Red Status Indicator
DIN rail mounted
Grey in colour
Wide operating temperature range
