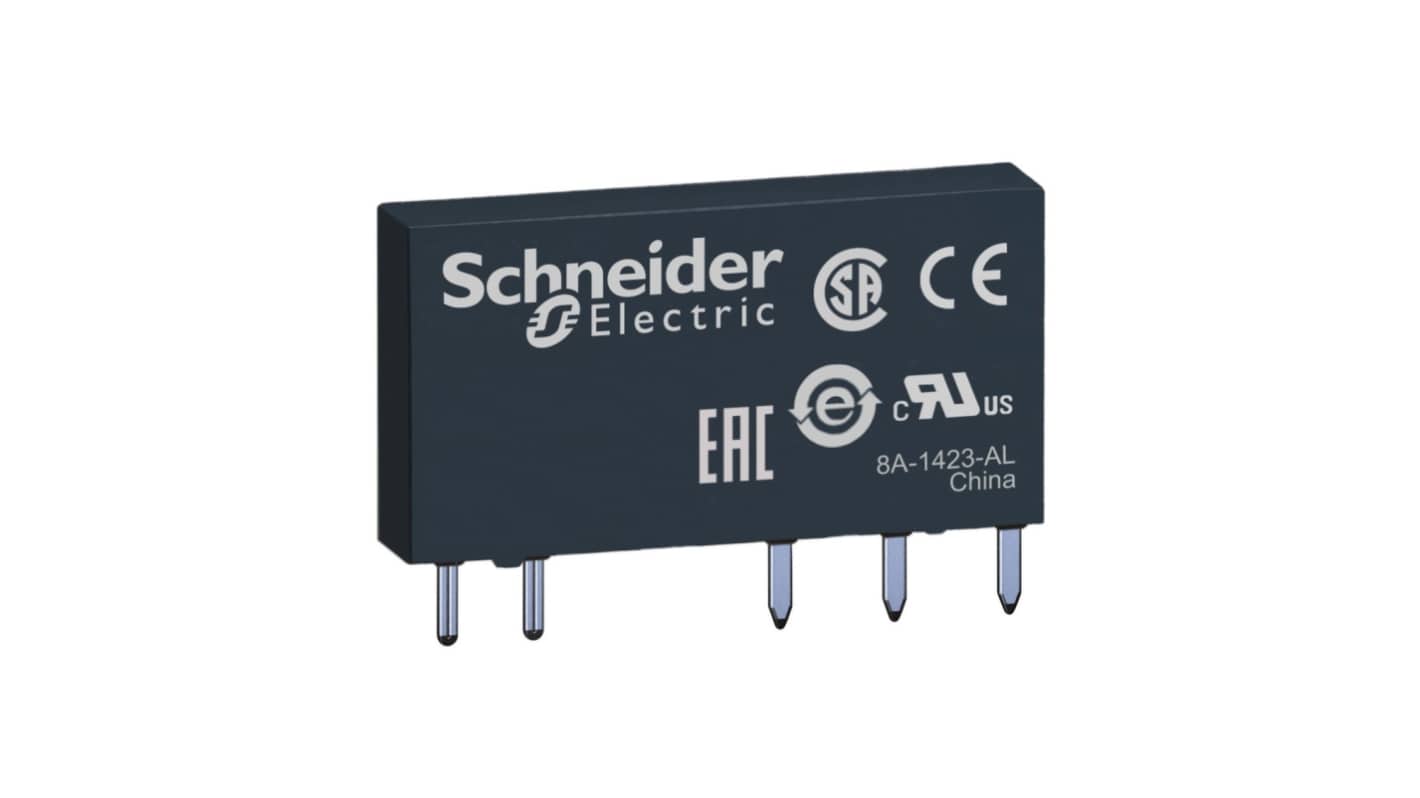

Schneider Electric PCB Mount Power Relay, 48V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 124-0203
- Mfr. Part No.:
- RSL1GB4ED
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 124-0203
- Mfr. Part No.:
- RSL1GB4ED
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 48V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage DC | 277V dc | |
| Length | 28mm | |
| Coil Resistance | 10600Ω | |
| Maximum Operating Temperature | +55°C | |
| Isolation Coil To Contact | 4kV ac | |
| Contact Material | Silver Alloy | |
| Minimum Operating Temperature | -40°C | |
| Life | 10000000 (Mechanical) cycles, 60000 (Electrical) cycles | |
| Depth | 5mm | |
| Standards Met | CE, CSA, EAC, EN/IEC, IEC, UL | |
| Height | 15mm | |
| Maximum Switching Power AC | 1.5 kVA | |
| Maximum Switching Power DC | 50 W | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 48V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage DC 277V dc | ||
Length 28mm | ||
Coil Resistance 10600Ω | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 4kV ac | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Life 10000000 (Mechanical) cycles, 60000 (Electrical) cycles | ||
Depth 5mm | ||
Standards Met CE, CSA, EAC, EN/IEC, IEC, UL | ||
Height 15mm | ||
Maximum Switching Power AC 1.5 kVA | ||
Maximum Switching Power DC 50 W | ||
RSL Slim Interface Relays
RSL slim interface relays offer compact size in a modular design: their slim width (6 mm) saves valuable space when mounting on a DIN rail at the back of an enclosure.
RSL are available in two versions:
Pre-assembled range (a single catalog number for a standard relay mounted on a socket
Individual relays and sockets (provided separately according to the requirements of the application)
Pre-assembled range (a single catalog number for a standard relay mounted on a socket
Individual relays and sockets (provided separately according to the requirements of the application)
