- RS Stock No.:
- 476-735
- Brand:
- RS PRO
Available to back order for despatch 05/12/2024
Added
Price Each
£3.90
(exc. VAT)
£4.68
(inc. VAT)
Units | Per unit |
1 - 24 | £3.90 |
25 - 99 | £3.49 |
100 - 249 | £3.05 |
250 - 499 | £2.66 |
500 + | £2.46 |
- RS Stock No.:
- 476-735
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

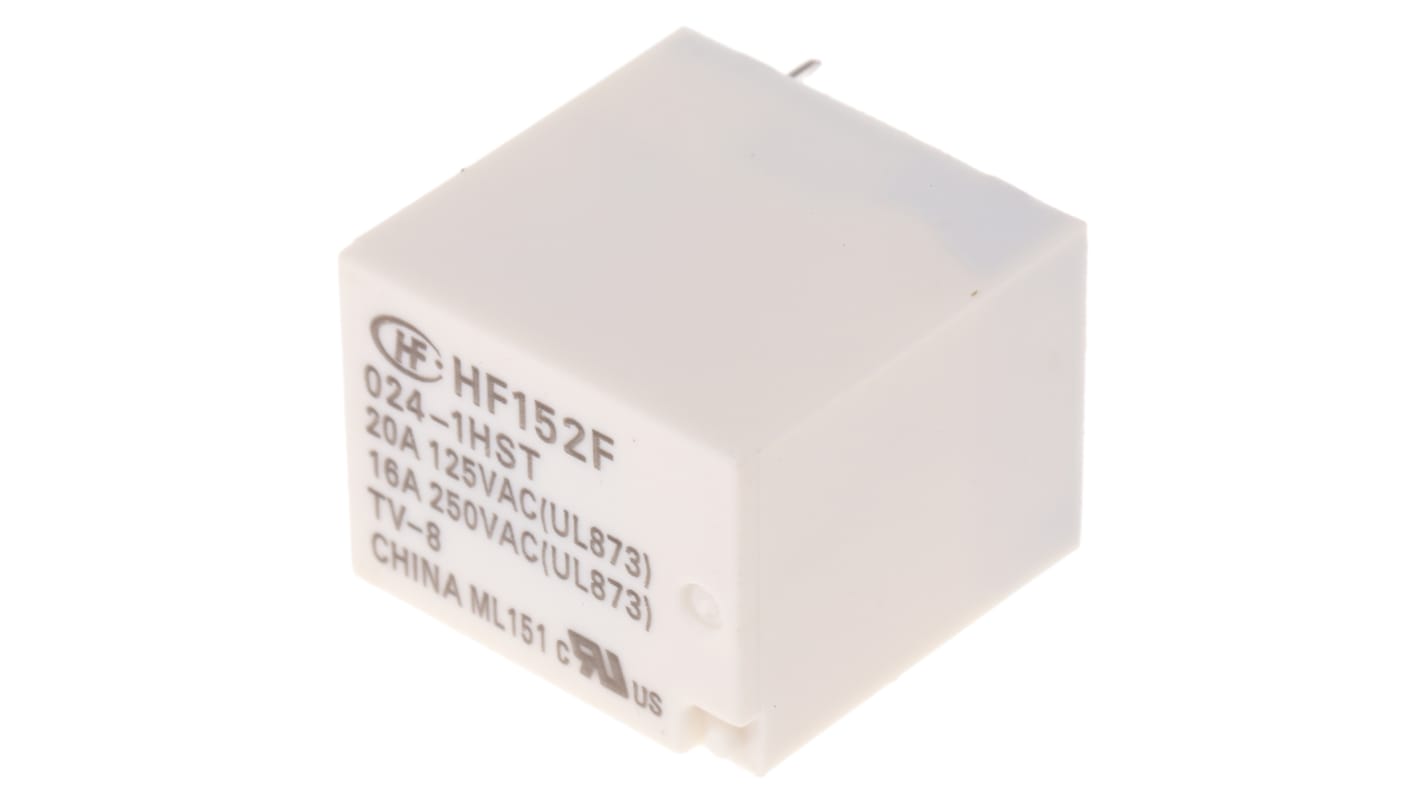

High Current (20A) Subminiature Relays
High switching current capability: up to 20A
UL & CUL TV-8 rating at 125Vac
2.5kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Fully sealed (wash tight) construction
UL & CUL TV-8 rating at 125Vac
2.5kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Fully sealed (wash tight) construction
Standards
IEC 60335-1
Approvals
UL (File no. E134517), VDE (File no. 40017837)
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPST |
Mounting Type | PCB Mount |
Switching Current | 16A |
Number of Poles | 1 |
Latching | No |
Terminal Type | Through Hole |
Maximum Switching Voltage AC | 400V ac |
Length | 21mm |
Coil Resistance | 1600Ω |
Coil Power | 360mW |
Isolation Coil To Contact | 2.5kV ac |
Height | 20.6mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
Contact Material | Silver Alloy |
Standards Met | IEC 60335-1, RoHS Compliant, UL E134517, VDE 40017837 |
Depth | 16mm |
Maximum Switching Power AC | 4.7 kVA |
Application | Power |
