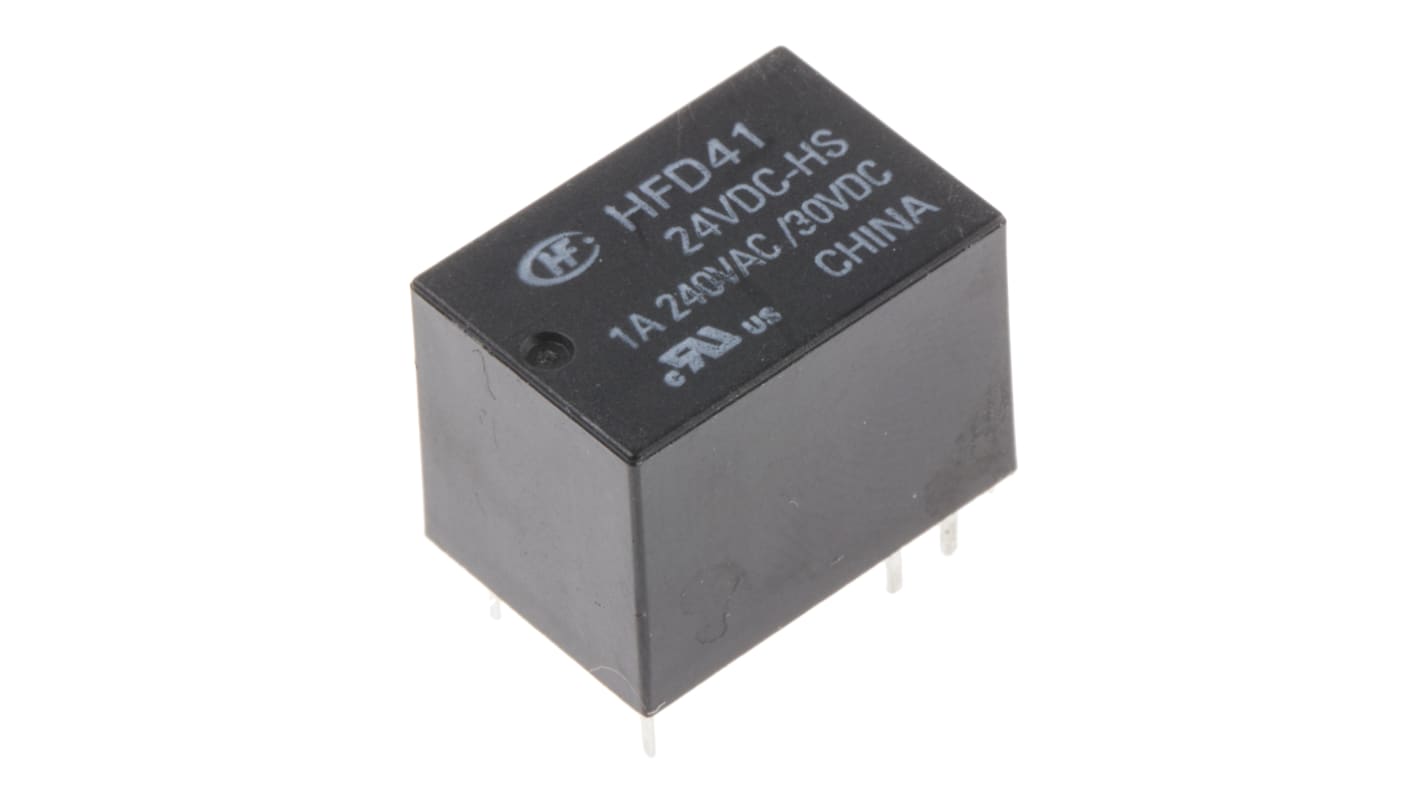

RS PRO PCB Mount Non-Latching Relay, 24V dc Coil, 1A Switching Current, SPDT
- RS Stock No.:
- 476-595
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.56
(exc. VAT)
£6.67
(inc. VAT)
- RS Stock No.:
- 476-595
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 1A | |
| Number of Poles | 1 | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 240V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 15.7mm | |
| Coil Resistance | 2.8 kΩ | |
| Coil Power | 200mW | |
| Height | 12mm | |
| Isolation Coil To Contact | 1kV ac | |
| Standards Met | CQC, CULus, RoHS Compliant | |
| Minimum Operating Temperature | -25°C | |
| Depth | 11mm | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 600VA | |
| Maximum Switching Power DC | 30 W | |
| Application | Signal | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 1A | ||
Number of Poles 1 | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 240V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 15.7mm | ||
Coil Resistance 2.8 kΩ | ||
Coil Power 200mW | ||
Height 12mm | ||
Isolation Coil To Contact 1kV ac | ||
Standards Met CQC, CULus, RoHS Compliant | ||
Minimum Operating Temperature -25°C | ||
Depth 11mm | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 600VA | ||
Maximum Switching Power DC 30 W | ||
Application Signal | ||
- COO (Country of Origin):
- CN
Miniature Signal Relays
5A switching capability (max)
Contact rating: 1A @ 120Vac/30Vdc
Standard PCB layout
Wash tight
Contact rating: 1A @ 120Vac/30Vdc
Standard PCB layout
Wash tight
Approvals
UL (File no. E170653), VDE (File no. 40000155)
