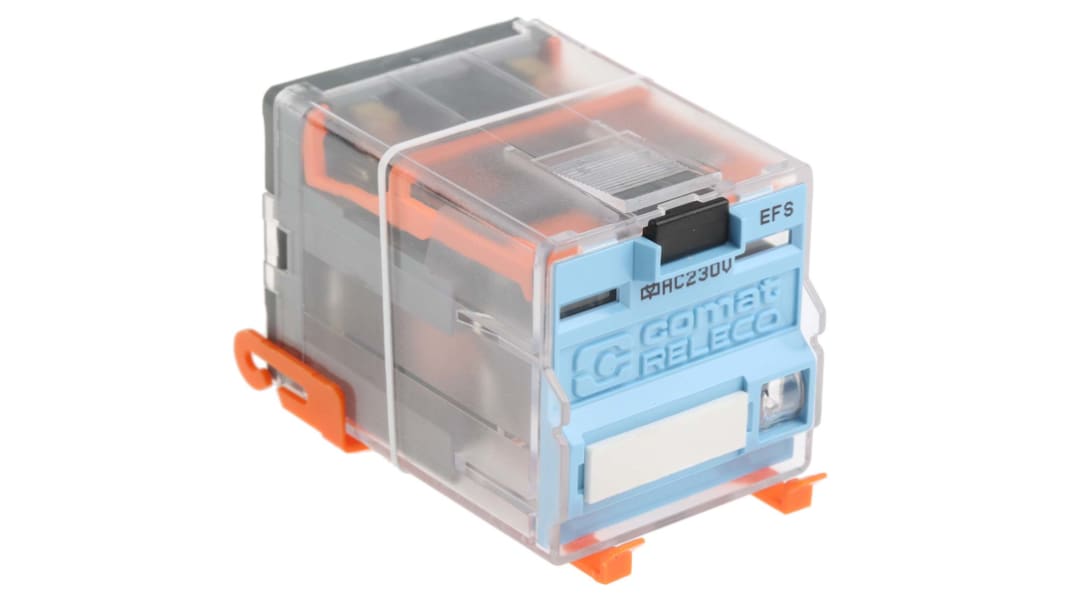

Releco Power Relay, 230V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 352-480
- Mfr. Part No.:
- C3-R20N/AC 230V
- Brand:
- Releco
Bulk discount available
Subtotal (1 unit)*
£38.15
(exc. VAT)
£45.78
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 70 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £38.15 |
| 5 - 9 | £37.38 |
| 10 - 14 | £36.62 |
| 15 + | £35.87 |
*price indicative
- RS Stock No.:
- 352-480
- Mfr. Part No.:
- C3-R20N/AC 230V
- Brand:
- Releco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Releco | |
| Product Type | Power Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Series | C7 | |
| Terminal Type | Through Hole | |
| Switching Current | 10A | |
| Switching Power | 2.5kVA | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 30V ac | |
| Coil Resistance | 8Ω | |
| Maximum Operating Temperature | 60°C | |
| Coil Power | 1.5W | |
| Length | 35mm | |
| Standards/Approvals | CSA, EN, IEC, RoHS, UL | |
| Width | 35mm | |
| Height | 66mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Releco | ||
Product Type Power Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Series C7 | ||
Terminal Type Through Hole | ||
Switching Current 10A | ||
Switching Power 2.5kVA | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 30V ac | ||
Coil Resistance 8Ω | ||
Maximum Operating Temperature 60°C | ||
Coil Power 1.5W | ||
Length 35mm | ||
Standards/Approvals CSA, EN, IEC, RoHS, UL | ||
Width 35mm | ||
Height 66mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- IN
Releco Remanence Relay
The Releco remanence relay has two changeover contacts and switching current rating of 10A. It is an AC powered plug-in type latching relay with bi-stable switching. This means that the current switching state is retained, irrespective of the excitation. The contacts can be switched OFF by pulsing the reset input. It has a test button that is colour coded and has dual functions like a push to test or lift to latch. There is a removable marking label fitted to each relay. Its meticulous design makes it particularly suitable for industrial applications and installation engineering.
Features and Benefits
230VAC supply rating coil
11-terminal multipole connector according to IEC 67
Contact material is silver-nickel (AgNi)
DPCO contact configuration
Mechanical flag indicator as standard
Operating temperature ranging between -40°C and 60°C
Standard relay 35 x 35mm with flat blade connectors
Applications
Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration
Certifications
CCC certified
CE certified
cRUus certified
cULus certified
EAC certified
IEC/EN 60947
IEC/EN 61810
LROS certified
