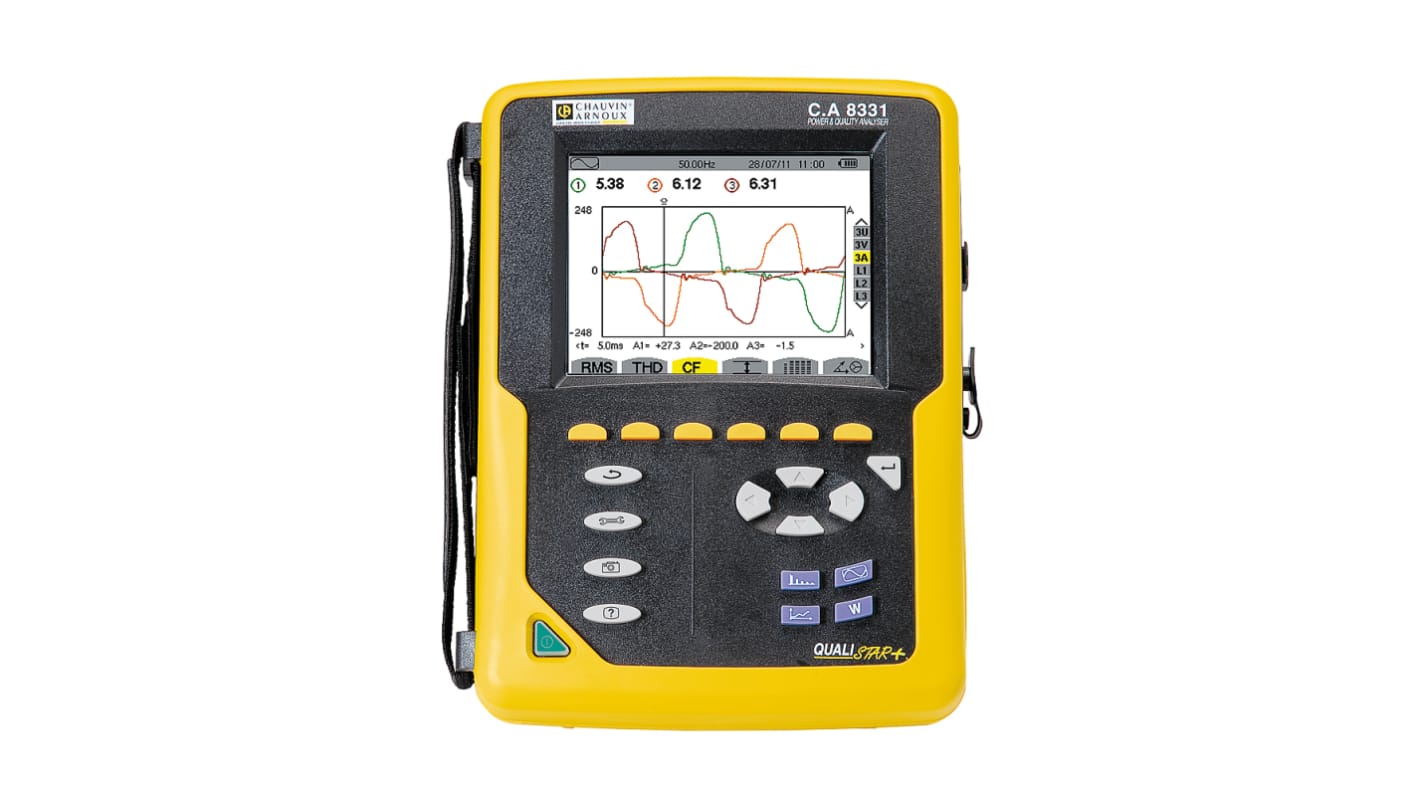

Chauvin Arnoux CA 8331 Power Quality Analyser, 1, 3-Phase, 10000A ac Max, 1000 V ac, 1200V dc Max

RS Stock No.:: 799-9070
Distrelec Article No.:: 303-66-466
Mfr. Part No.:: P01160511
Brand:: Chauvin Arnoux

Chauvin Arnoux CA 8331 Power Quality Analyser, 1, 3-Phase, 10000A ac Max, 1000 V ac, 1200V dc Max

Subtotal (1 unit)*

£1,860.01

(exc. VAT)

£2,232.01

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

11 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,860.01

*price indicative

RS Stock No.:: 799-9070
Distrelec Article No.:: 303-66-466
Mfr. Part No.:: P01160511
Brand:: Chauvin Arnoux

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Chauvin Arnoux
	Absolute Maximum Current Measurement	10000 A ac, 5000 A dcA ac
	Absolute Maximum Power Measurement	10 MW, 10 MVAR, 10 MVAmW
	Number of Phases	1, 3
	Maximum Voltage	1000 V ac, 1200V dc
	Best Voltage Measurement Accuracy	±(0.5 % + 200 mV)
	Best Current Measurement Accuracy	±(0.5 % + 2 mA)
	Display Type	Colour, TFT LCD
	Measurement Type	Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Tan, Transients, Unbalance, Voltage
	Measurement Standards	IEC 610101
	Interface Type	USB
	Power Source	Battery, Mains
	Battery Type	Rechargeable NiMH
	Battery Life	13 h
	Model Number p	CA 8331
	Height	55mm
	Minimum Operating Temperature	0°C
	Weight	1.9kg
	Maximum Operating Temperature	+50°C
	Minimum Frequency	40 Hz
	Dimensions	240 x 180 x 55mm
	Width	180mm
	Maximum Frequency	70Hz
	Length	240mm

	Select all
	Brand Chauvin Arnoux
	Absolute Maximum Current Measurement 10000 A ac, 5000 A dcA ac
	Absolute Maximum Power Measurement 10 MW, 10 MVAR, 10 MVAmW
	Number of Phases 1, 3
	Maximum Voltage 1000 V ac, 1200V dc
	Best Voltage Measurement Accuracy ±(0.5 % + 200 mV)
	Best Current Measurement Accuracy ±(0.5 % + 2 mA)
	Display Type Colour, TFT LCD
	Measurement Type Cos, Current, DPF, Energy values, Flicker, Frequency, Harmonics, Inrush, PF, Power values, Tan, Transients, Unbalance, Voltage
	Measurement Standards IEC 610101
	Interface Type USB
	Power Source Battery, Mains
	Battery Type Rechargeable NiMH
	Battery Life 13 h
	Model Number p CA 8331
	Height 55mm
	Minimum Operating Temperature 0°C
	Weight 1.9kg
	Maximum Operating Temperature +50°C
	Minimum Frequency 40 Hz
	Dimensions 240 x 180 x 55mm
	Width 180mm
	Maximum Frequency 70Hz
	Length 240mm

RoHS Status: Exempt

COO (Country of Origin):: FR

CA8331 Qualistar Plus Power and Energy Quality Analyser (EU Version)

Designed for maintenance and test departments working in industrial or administrative buildings, the CA 8331 QualiStar Plus can be used to obtain a snapshot of the main features characterizing the quality of the electrical network. Easy to handle and compact, the QualiStar+ offers a large number of calculated values and several processing functions.

The CA 8331 offers the possibility of mixing different types of current sensors and configuration of the ratios allows direct reading of the measurements.
Large colour TFT screen for easy reading
TRMS AC+ DC voltage and current, frequency
Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy values: Wh, varh, VAh, VADh, BTU, toe, Joule
Harmonics from 0 to the 50th order, phase
Flicker (Pst and Plt)
Recording of a selection of parameters at the maximum sampling rate for 4 hours to 2 weeks
Peak detection
Vectorial representation
IP53 / IK08
USB communication

Note

Current clamps are available separately.

Standards

IEC 61010 1000 V CAT III / 600 V CAT IV

Supplied with

Bag for accessories, 5 x 4 mm banana voltage leads 3 m long, 5 crocodile clips, a set of 12-colour inserts/rings for identifying the leads and inputs, a scratch-proof screen-protection film (mounted), a USB cable, a mains power cable, a mains power pack, a safety datasheet, a multi-language operating manual CD and a PC data retrieval software CD (Power Analyser Transfer).
