Rohde & Schwarz HMC8015 Power Quality Analyser, 20A Max, 600V Max

View all Power Quality Analysers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
187-3722
Mfr. Part No.:
HMC8015COM
Brand:
Rohde & Schwarz
Find similar products by selecting one or more attributes.
Select all

Brand

Rohde & Schwarz

Absolute Maximum Current Measurement

20A

Absolute Maximum Power Measurement

12kW

Maximum Voltage

600V

Best Voltage Measurement Accuracy

0.05 %

Best Current Measurement Accuracy

0.05 %

Display Type

TFT

Measurement Type

Current, Voltage

Interface Type

Ethernet, USB

Power Source

Mains

Model Number p

HMC8015

Minimum Operating Temperature

+5°C

Height

88mm

Width

280mm

Weight

3.3kg

Length

222mm

Maximum Frequency

100kHz

Maximum Operating Temperature

+40°C

Dimensions

222 x 280 x 88mm

COO (Country of Origin):
CZ

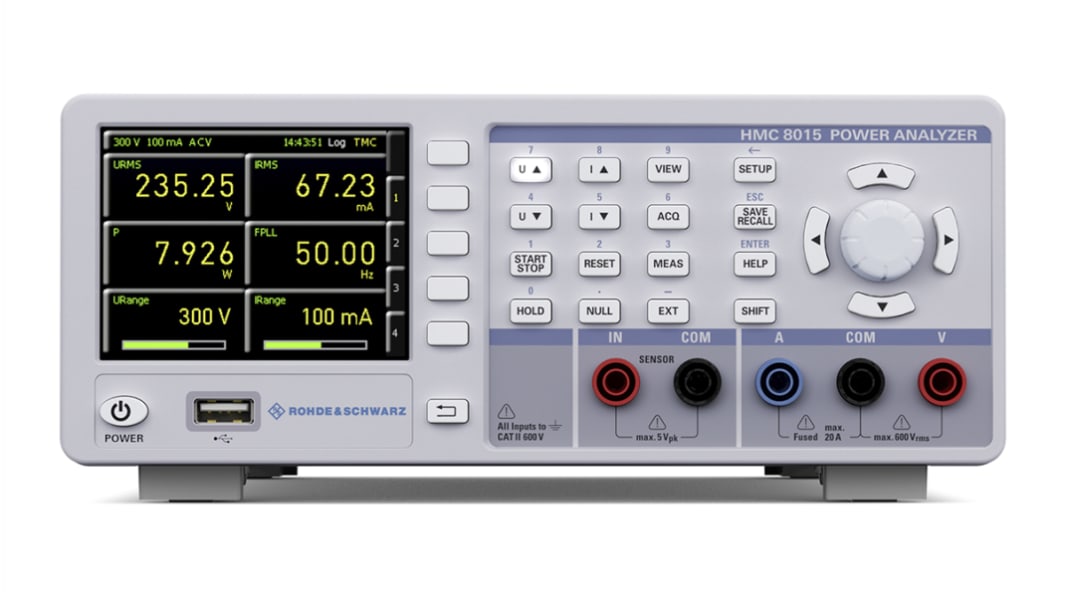

Rohde & Schwarz HMC8015 Power Quality Analyser


Rohde & Schwarz offer this large inclusion bundle of Power Quality Analyser, software upgrades and accessories.

HMC8015 is the first compact tester for AC/DC load and standby current characterisation to enable measurements without extra requirements such as computers or remote infrastructure. It features a numerical and graphical display with 26 key parameters. A PASS/FAIL function allows users to monitor numerous measurands either on the display panel or externally via an output on the rear panel. Simultaneously displaying up to 10 configurable measurands this bench analyser also has a refresh rate of 10 measurements per second. A hardware based integrator delivers a precise, seamless power consumption analysis adding up ampere hours and function according to polarity. Tailored specifically for use in labs and system racks this package is the ideal solution for all your bench testing needs.

Included in this bundle:


HMC8015 Power Quality Analyzer
HOC151 Advanced Analysis
HOC152 Advanced I/O
HOC153 Compliance Test

Features and Benefits:


• Clear display of all measured parameters
• Measurement accuracy
• Everyday measurement functions
• Power measurement range 50 μW to 12 kW
• Analog bandwidth DC to 100 kHz
• Sample rate 500 ks/s
• 16-bit resolution for voltage and current
• Basic accuracy 0.05%
• 26 different measurement and mathematical functions

Standards

CAN/CSA-C22.2 NO. 61010-1, UL 61010-1, DIN EN 61010-1, DIN EN 61326-1, DIN EN 55011
