Keysight Technologies N6715C Power Quality Analyser, 50A Max, 240V ac Max
- RS Stock No.:
- 134-5647
- Mfr. Part No.:
- N6715C
- Brand:
- Keysight Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£8,622.37
(exc. VAT)
£10,346.84
(inc. VAT)
- RS Stock No.:
- 134-5647
- Mfr. Part No.:
- N6715C
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Absolute Maximum Current Measurement | 50A | |
| Absolute Maximum Power Measurement | 600W | |
| Maximum Voltage | 240V ac | |
| Best Voltage Measurement Accuracy | 0.025 % | |
| Best Current Measurement Accuracy | 0.025 % | |
| Display Type | Graphic Display | |
| Measurement Type | Current, Voltage | |
| Interface Type | USB 2.0 | |
| Memory Capacity | 4GB | |
| Power Source | Mains | |
| Model Number p | N6715C | |
| Weight | 16kg | |
| Maximum Frequency | 400Hz | |
| Minimum Frequency | 50 Hz | |
| Dimensions | 425.6 x 313 x 194.7mm | |
| Maximum Operating Temperature | +55°C | |
| Length | 425.6mm | |
| Width | 313mm | |
| Minimum Operating Temperature | 0°C | |
| Height | 194.7mm | |
Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Absolute Maximum Current Measurement 50A | ||
Absolute Maximum Power Measurement 600W | ||
Maximum Voltage 240V ac | ||
Best Voltage Measurement Accuracy 0.025 % | ||
Best Current Measurement Accuracy 0.025 % | ||
Display Type Graphic Display | ||
Measurement Type Current, Voltage | ||
Interface Type USB 2.0 | ||
Memory Capacity 4GB | ||
Power Source Mains | ||
Model Number p N6715C | ||
Weight 16kg | ||
Maximum Frequency 400Hz | ||
Minimum Frequency 50 Hz | ||
Dimensions 425.6 x 313 x 194.7mm | ||
Maximum Operating Temperature +55°C | ||
Length 425.6mm | ||
Width 313mm | ||
Minimum Operating Temperature 0°C | ||
Height 194.7mm | ||
- COO (Country of Origin):
- MY

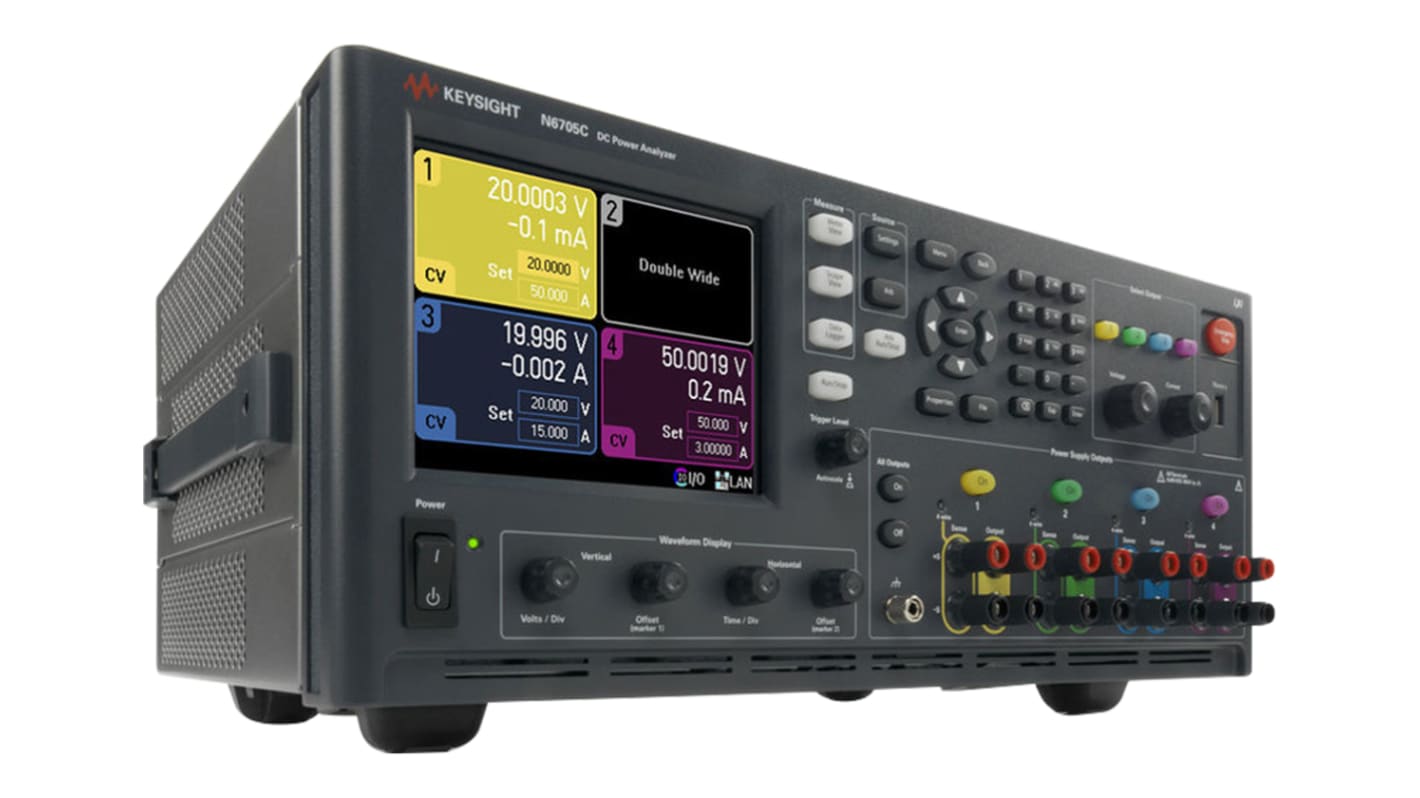

Keysight N6715C Base Model Custom-Configured DC Power Analyzer, 600 W, Modular, 4 Slots
The N6715C DC Power Analyzer is a build-to-order system that is shipped as a fully assembled multiple output power supply. Each N6715C consists of one N6705C mainframe (described below) plus 1 to 4 DC Power Modules and up to 600 W total DC Power Module output power. To specify which modules you want installed in the N6715C, modules are ordered as options to the N6715C.
The N6705C saves time
The N6705C DC Power Analyzer provides unrivaled productivity gains for sourcing and measuring DC voltage and current into the DUT by integrating up to 4 advanced power supplies with DMM, Scope, Arb, and Data Logger features. The N6705C eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT. The DC Power Analyzer also eliminates the need to develop and debug programs to control a collection of instruments and take useful measurements because all functions and measurements are available at the front panel. For even greater control and analysis functions, the DC Power Analyzer can be used with the 14585A Control and Analysis Software. When automated bench setups are required, the N6705C is fully programmable over GPIB, USB, LAN and is LXI Compliant. 14585A Control and Analysis Software
The N6705C can be tailored to meet your needs
The N6705C offers flexible configuration to meet your power sourcing and analysis requirements. The N6705C is a 4-slot mainframe that accepts up to 4 DC Power Modules, and up to 600 W total DC Power Module output power. The modules are ordered separately.
N6705C accepts the same modules as N6700 Modular Power System, with over 30 modules to choose from. Basic sources for the N6705C include: 50 W, 100 W, and 300 W; up to 150 V, up to 50 A. High-performance sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Precision sources for the N6705C include: 50 W, 100 W, 300 W, and 500 W; up to 60 V, up to 50 A. Source/Measure units for the N6705C include: 20 W; up to 20 V, up to 3 A. Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
Features:
Easy to use R&D tool for sourcing and measuring DC voltage and current into the DUT
Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
Access all capabilities without programming; either use the front panel controls or the 14585A Control and Analysis Software
Intuitive, dedicated physical controls for common functions
Large color graphics display for easy viewing of complex data
Connections and controls color-coded to the display for fast and error-free setupProgrammable via standard GPIB, LAN and USB; LXI Compliant
Key Features and Specifications:
4-slot mainframe holds up to 600 W of total power and up to 4 modules. More than 30 DC power modules to choose from (modules ordered separately)
Voltmeter accuracy: Up to 0.025% + 50 μV, up to 18 bits
Ammeter accuracy: Up to 0.025% + 8 nA, up to 18 bits
Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W
Scope function: Digitizes voltage and current at up to 200 kHz, 512 kpts, up to 18 bits
Data logger function: Measurement interval from 20 μs to 60 s, max of 500 M readings per datalog
4 GB of non-volatile data storage for data log, scope traces, instrument settings
