Chauvin Arnoux P01120567 Power Quality Analyser Probe, Accessory Type Probe, For Use With PEL 102, PEL 103

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

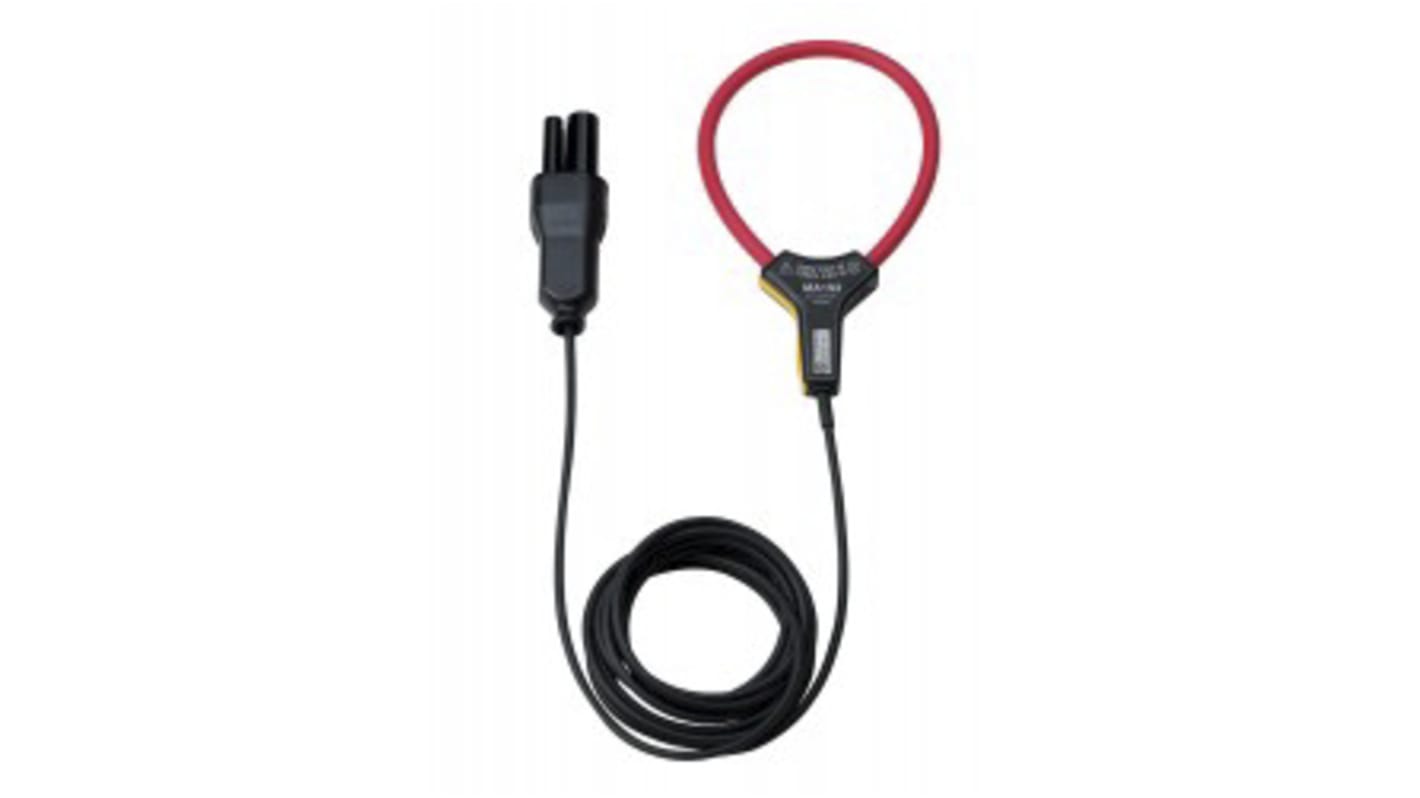

MA193-350 Mini AmpFlex™

Mini AmpFlex™ current probe with a flexible sensor. The output is proportional to the amplitude and frequency of the current measured.

AC Current clamp from 100mA to 10kA
Diameter 100mm, length 350mm
Accuracy (% input signal): ± 2%
Rated calibre: 3000A AC
Sensor diameter: 6 mm
Cable length: 1.5 m
Compatibility: C.A8220, C.A8230, C.A8332, C.A8332B, C.A8334, C.A8334B, C.A8335, C.A8331, C.A8333, C.A8336, PEL102, PEL103

Standards

IEC 61010 1000V CAT III, 600V CAT IV

Specifications
Attribute Value
Accessory Type Probe
For Use With PEL 102, PEL 103
5 in stock for FREE next working day delivery
7 available from Europe for delivery within 1 working day(s)
Price Each
£ 175.00
(exc. VAT)
£ 210.00
(inc. VAT)
Units
Per unit
1 +
£175.00
