STMicroelectronics Evaluation Board for TSZ121 for Low-Side Current Sensing

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
196-1882
Mfr. Part No.:
STEVAL-ISQ014V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

For Use With

Low-Side Current Sensing

Kit Classification

Evaluation Board

Featured Device

TSZ121

Kit Name

Evaluation Board

COO (Country of Origin):
IT

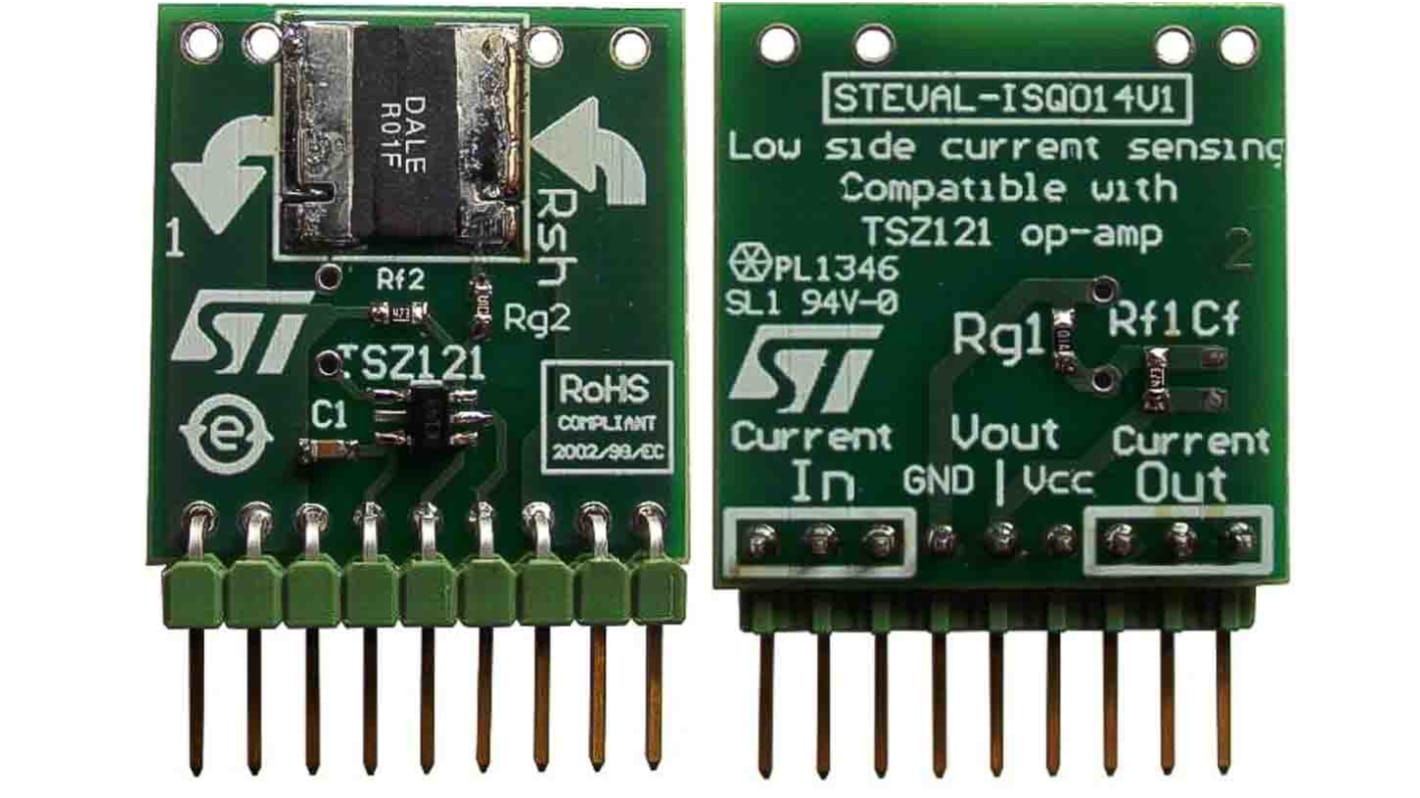

The STEVAL-ISQ014V1 product evaluation board implements low-side current sensing which consists in placing a sense resistor between the load and the circuit ground. The resulting voltage drop is amplified using a TSZ121 op amp. The common mode voltage is close to ground, whatever the voltage of the power source, so the current sense voltage can be amplified by this low voltage op amp without restriction.
The circuit offers very stable electrical characteristics over the entire supply voltage range and is particularly suited for automotive and industrial applications.
Thanks to the highly accurate TSZ121 op amp, precise current measurements can be made through your application without the added cost of high-precision resistors.
