Microchip ATSAMC21 MCU Board for ATSAMC21, ATSAMC21J18 for Motor Control Starter Kit

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
175-3134
Mfr. Part No.:
ATSAMC21MOTOR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

For Use With

Motor Control Starter Kit

Kit Classification

Evaluation Board

Featured Device

ATSAMC21, ATSAMC21J18

Kit Name

ATSAMC21 MCU Board

Microchip Technology Evaluation Board

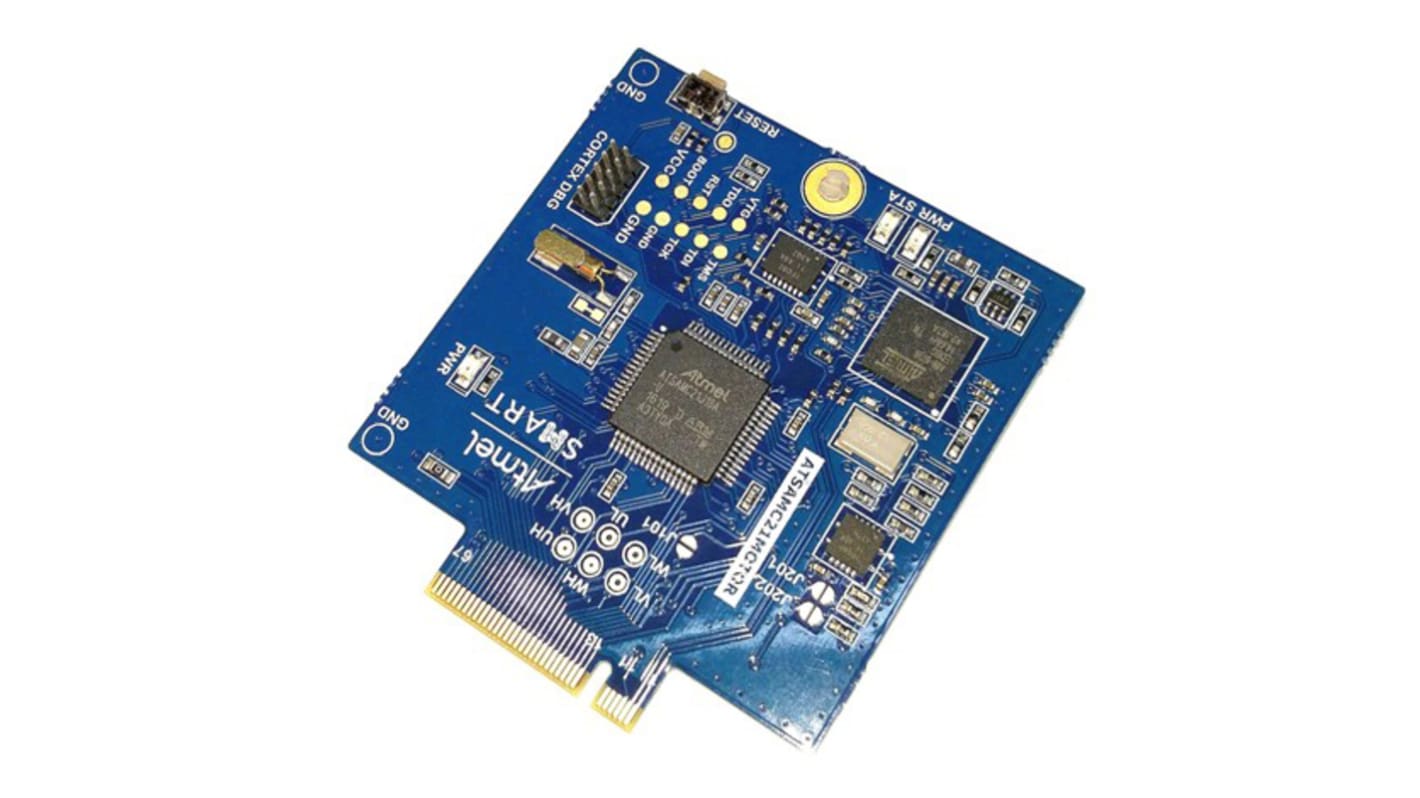

The Microchip Technology evaluation board is an MCU card for the motor control starter kit. It has the SMART ARM-based MCU and ATSAMC21J18 with integrated on-board debug support. This MCU Card can be directly used with a low voltage BLDC, PMSM motor control starter kit.

Features and Benefits:


• AC channels for BEMF signals
• ADC channels for common shunt and individual shunt phase current sensing
• ADC channels for motor BEMF sensing
• Atmel Xplained PRO extension signals support
• Communication and power status LED
• Debug support using on-board Atmel EDBG device
• EXTINT encoder sensor interface
• EXTINT hall sensor interface
• TCC PWM signals for three-phase half-bridge drive
