MikroElektronika MIKROE-2436 Voltmeter Click Voltage Measurement for MCP3201 for mikroBUS

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

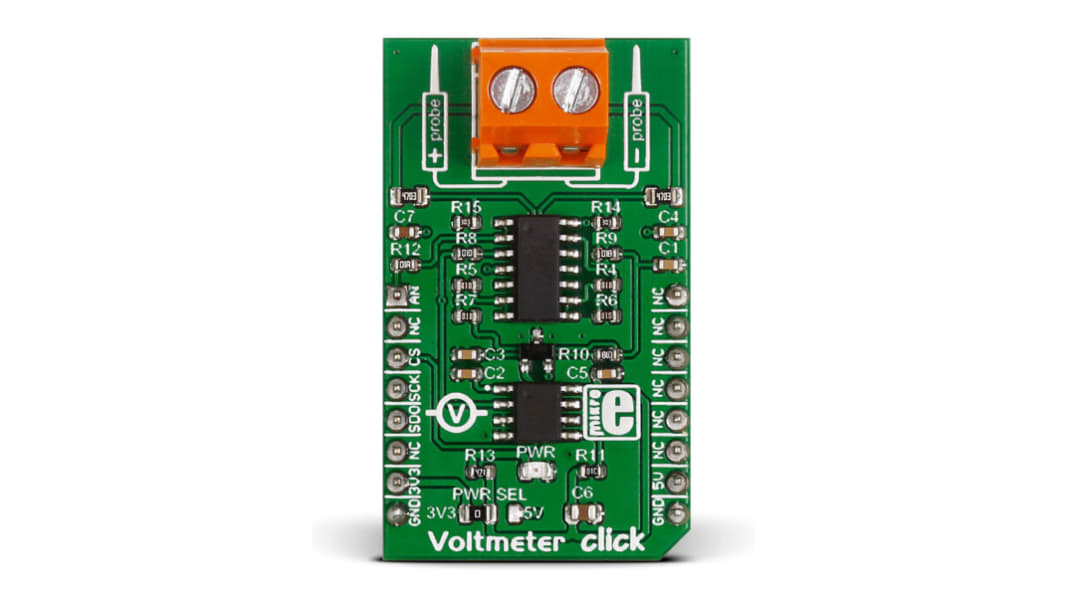

Voltmeter click mikroBUS™

Voltmeter click is a mikroBUS add-on board for measuring DC voltage of an electrical circuit.

Measurement range from zero to 24 V
MCP3201, 12-Bit Analogue-to-Digital Converter with SPI Serial Interface
MCP609, Micropower CMOS Operational Amplifier
Measures both positive and negative charges
3.3 V or 5 V power supply on mikroBUS socket
Dimensions 42.9 x 25.4 mm

Note

Click board comes with the header strips soldered.

Specifications
Attribute Value
Power Management Function Voltage Measurement
Kit Classification Shield
For Use With MikroBUS
Featured Device MCP3201
Kit Name Voltmeter click
2 In stock - FREE next working day delivery available
Price Each
£ 18.25
(exc. VAT)
£ 21.90
(inc. VAT)
Units
Per unit
1 +
£18.25
