Renesas Electronics Multiphase Controller for ISL68137 for Digital Multiphase Device
- RS Stock No.:
- 125-0642
- Mfr. Part No.:
- ISL68137-61P-EV1Z
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 125-0642
- Mfr. Part No.:
- ISL68137-61P-EV1Z
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Power Management Function | Multiphase Controller | |
| For Use With | Digital Multiphase Device | |
| Kit Classification | Evaluation Board | |
| Featured Device | ISL68137 | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Power Management Function Multiphase Controller | ||
For Use With Digital Multiphase Device | ||
Kit Classification Evaluation Board | ||
Featured Device ISL68137 | ||

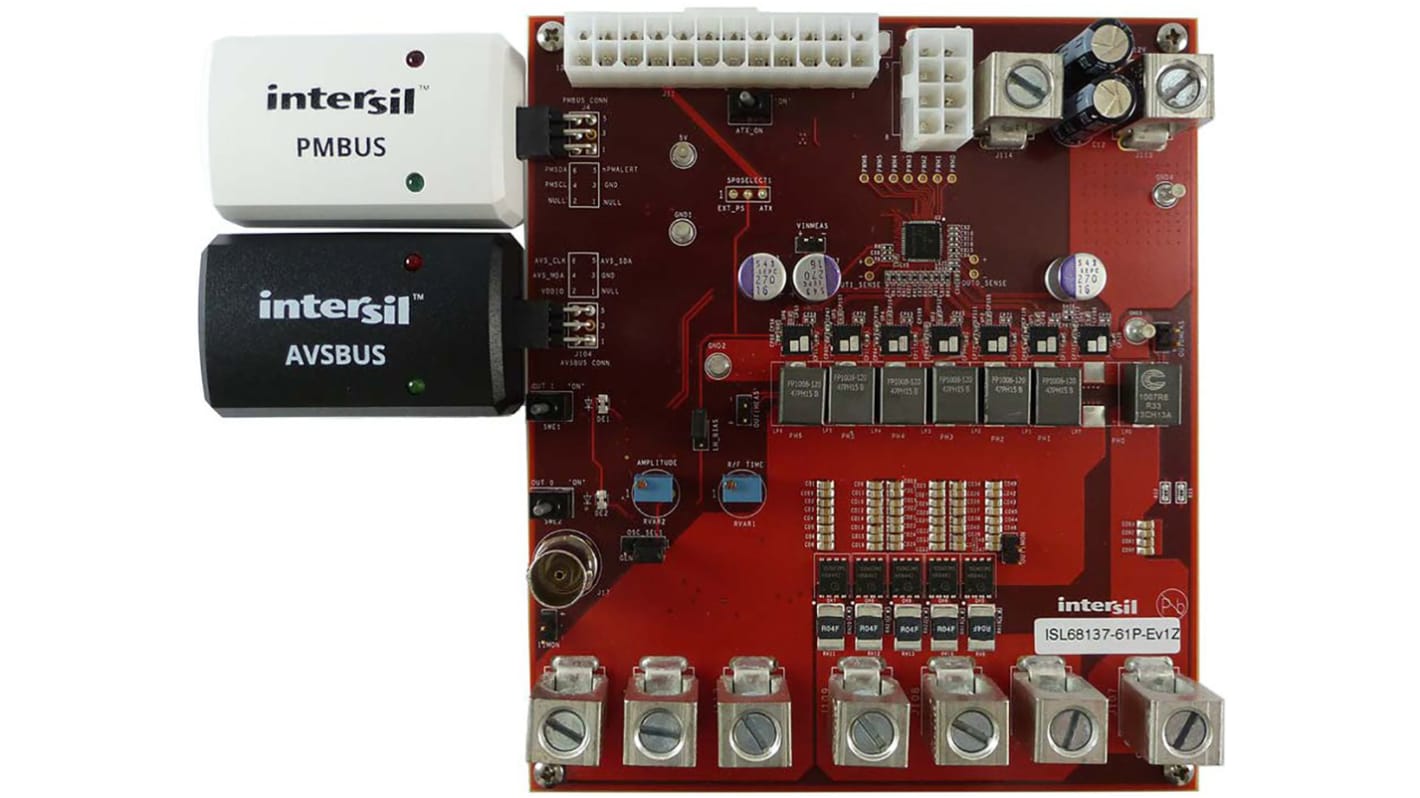

ISL68137, 6+1 Phase Digital Multiphase Controller Evaluation Board, Intersil
The ISL68137-61P-EV1Z board evaluates the ISL68137 Digital Dual Output, 7-Phase Configurable PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus.
The ISL68137 Digital Multiphase Controller is combined with the ISL99227 Smart Power Stage (SPS) to provide a balanced and highly efficient power.
The ISL68137 Digital Multiphase Controller is combined with the ISL99227 Smart Power Stage (SPS) to provide a balanced and highly efficient power.
Output from 0.6 V to 1.8 V
6+1 phase operation delivers up to 270A + 30A
Input from 5 V to 16 V
0.5% VOUT regulation accuracy
PMBus interface, AVSBus interface
3% IOUT telemetry accuracy
Transient load generator on-board to facilitate high di/dt loads testing
ATX or bench supply connections for input sources
6+1 phase operation delivers up to 270A + 30A
Input from 5 V to 16 V
0.5% VOUT regulation accuracy
PMBus interface, AVSBus interface
3% IOUT telemetry accuracy
Transient load generator on-board to facilitate high di/dt loads testing
ATX or bench supply connections for input sources
PWM (Pulse Width Modulation) Controllers, Intersil
